The Klubb aerial platform on van is an innovative and versatile solution to be mainly used for telecommunication network, sign light maintenance and repair and high-level pruning in urban areas.  Klubb van mounted bucket lifts are designing and manufactured with the intent to highly improve the daily routine of telecom and pruning workers, as much on the ground as at height. That’s why we strive to deliver the most flexible, the safest and the most reliable van bucket truck to you, our clients.

Because of our 20 years of industry experience and expertise we do ensure you will receive the exact aerial platform you need to get your job at height done right. To achieve the successful outcome, we let you the opportunity to choose for a plenty of options and features.

To save you time we have designed aerial platform mounted on van’s that do not require outriggers. Our van mounted access platform are designed in such a way that the distributed weight is spread throughout the vehicle and thus gives full stability without outriggers. (This option is current only available with a one man basket. For 2 man or more, the outrigger option would be necessary)

Van’s with boom lift’s are not just a machine used to help you work at height safely. This kind of aerial lift offers a very large storage space inside for your specific tools. With our French partner, Mobitec France we can provide indoor and outdoor customization of your van mount. Not only can we supply a mobile workshop, we can also ensure safety and security for you and your tools.

Aerial platforms on a Van < 3.5T Aerial platforms on a Van < 3.5T
Aerial platforms on a Chassis < 3.5T Aerial platforms on a Chassis < 3.5T
Aerial platforms on a Truck Aerial platforms on a Truck
Case study

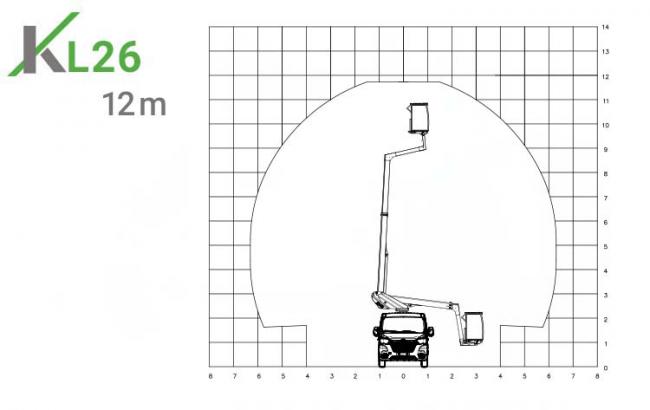

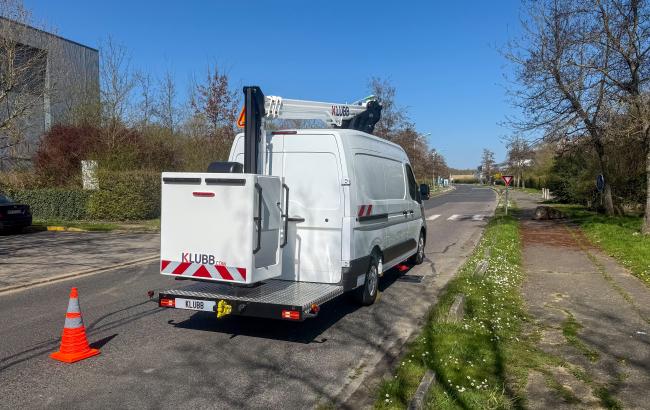

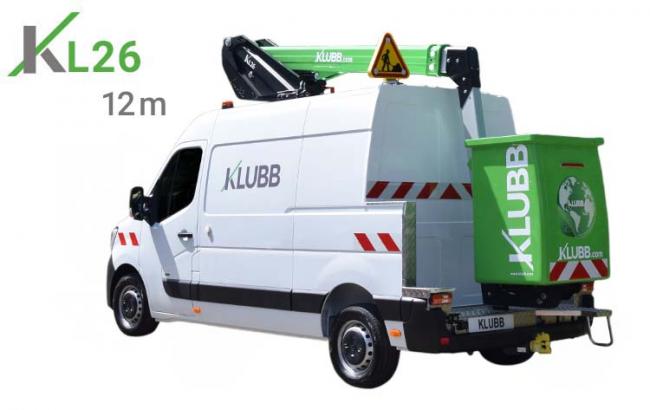

12m Telescopic aerial platform on Renault Master e-tech Electric KL26

12 Meters Van Mounted Boom Lift (39’37”)

Very compact, this van mounted aerial platform is specifically designed for urban interventions. This eco-friendly platform mounted on a KL26 truncated van allows a reach of 11,80m and an offset of 6,80m.

KLUBB Model = KL26
Max. working height = 11.80m (38’71”)
Max. lateral outreach = 6.80m (22’31”)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°

Case study

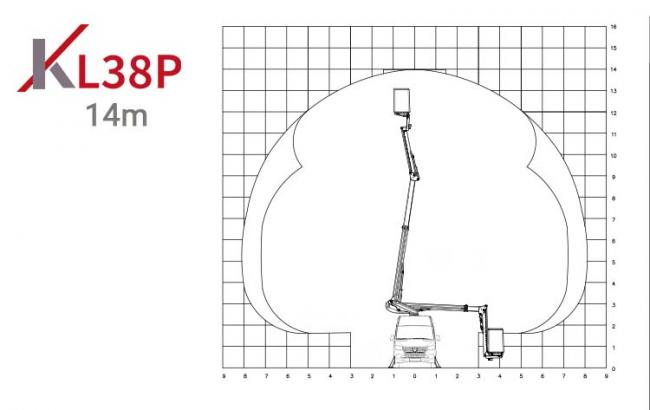

14m Telescopic aerial platform on Renault Trafic KL38P

14 Meters Van Mounted Boom Lift (45’93”)

Designed with the latest generation swing arm, this trunk van lift model is a real asset for demanding customers with high storage capacity requirements. Its exceptional performance makes it a perfect solution for all pruning work, electrics, sign installation or even building maintenance/ cleaning.

KLUBB Model = KL38P
Max. working height = 13.80m (45’28”)
Max. lateral outreach = 8.20m (26’90”), 1 operator
Capacity = 200kg, 2 operators, with outriggers
Rotation = 360°

Case study

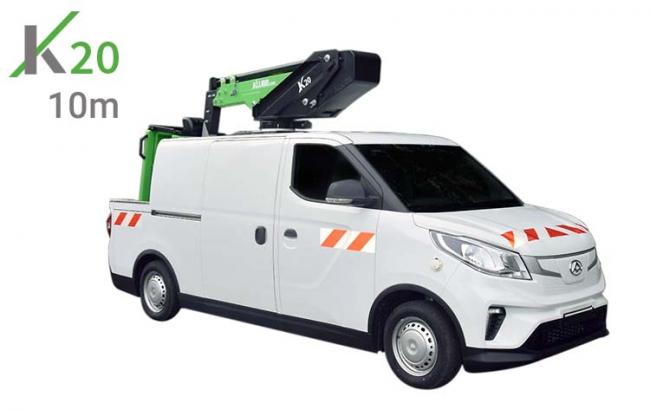

10.50m Telescopic aerial platform on Maxus eDeliver3 K20

10.50 Meters Electric Van Mounted Boom Lift (34’5”)

The K20 is an electric aerial platform mounted on a Maxus eDeliver3. It has been designed to provide its users with an environmentally friendly, compact machine which allows operation without noise or pollution.

KLUBB Model = K20 electric
Max. working height = 10.50m (34’5”)
Max. lateral outreach = 5.80m (19’0”)
Capacity = 120kg, 1 man basket, no outriggers
Rotation = 360°

Case study

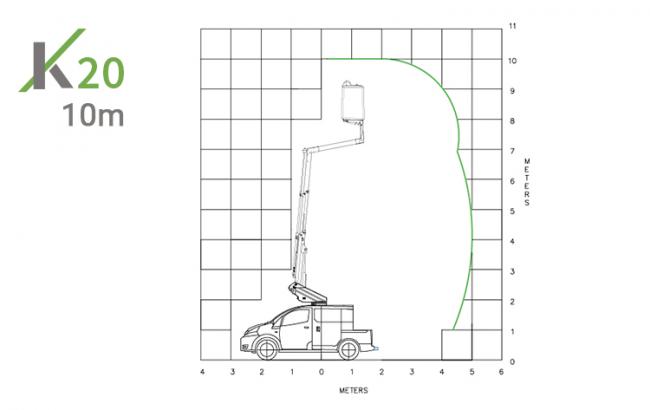

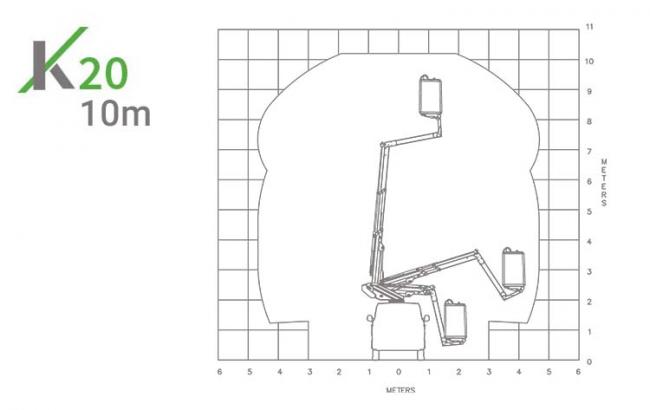

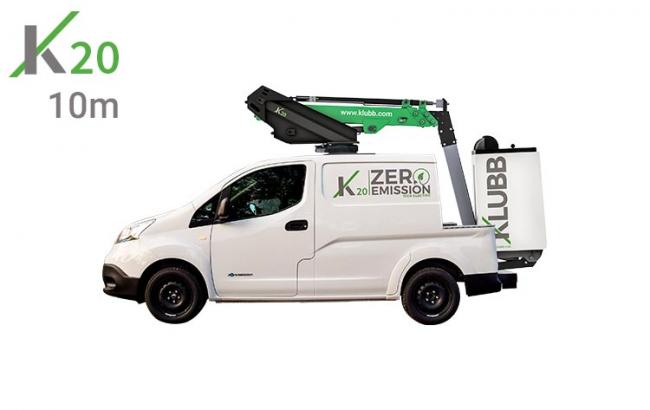

10m Telescopic aerial platform on Nissan e-NV200 K20

10 Meters Electric Van Mounted Boom Lift (32’81”)

The K20 is an electric aerial platform mounted on a Nissan e-NV200. It has been designed to provide its users with an environmentally friendly, compact machine which allows operation without noise or pollution.

KLUBB Model = K20 electric
Max. working height = 10m (32’81”)
Max. lateral outreach = 5m (16’40”)
Capacity = 120kg, 1 man basket, no outriggers
Rotation = 420°

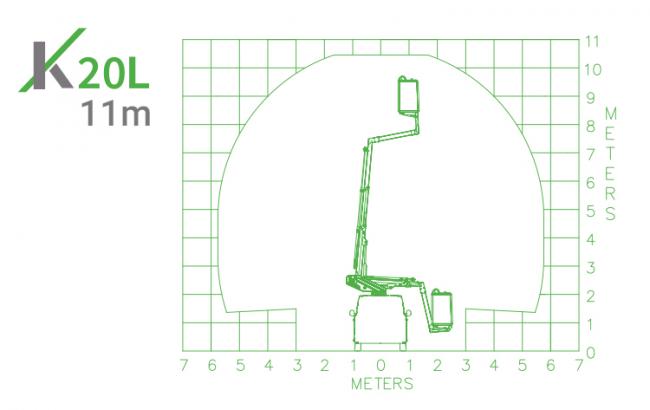

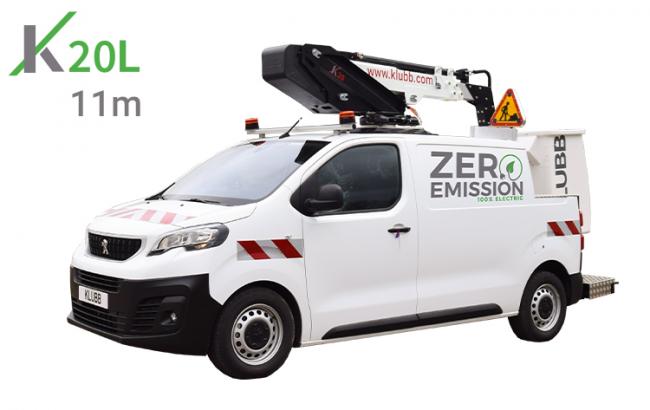

10.50m Telescopic aerial platform on cutaway Peugeot E-Expert Electric K20L

10.50 Meters Van Mounted Boom Lift (39’37”)

XL battery pack equipped (75kwh), this 100% electric aerial work platform on a Peugeot e-Expert van will surprise you with its 330km WLTP (*) autonomy on the road, but also during intervention with its 32 work cycles in electric mode.

KLUBB Model = K20L 100% electric
Max. working height = 10.5m (39’37”)
Max. lateral outreach = 5.80m (19’68”)
Capacity = 120kg, 1 man basket, no outriggers
Rotation = 420°

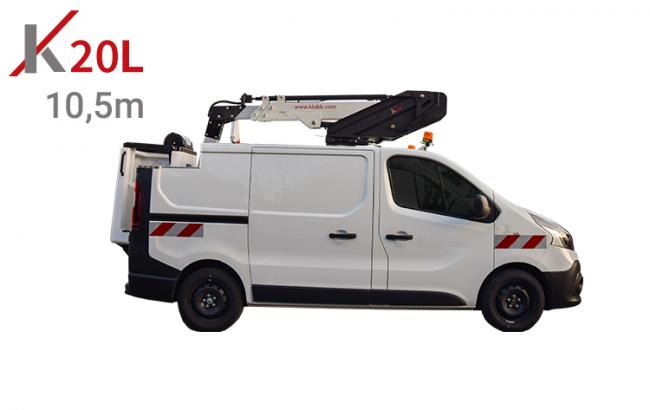

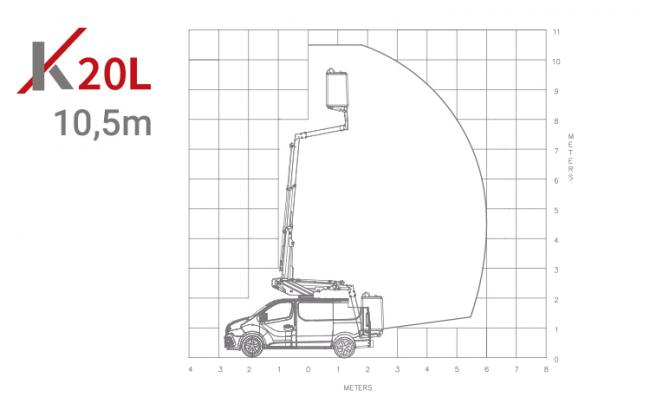

10.50m Telescopic aerial platform on a Cutaway Renault Trafic K20L

10.50 Meters Van Mounted Boom Lift (32’81”)

Thanks to a very light aluminum arm, the Klubb K20L aerial platform is designed to be mounted on very small vehicles. Moreover, it is even compacter as it is built on a cutaway Van, like Peugeot Expert or Renault Trafic.

KLUBB Model = K20L
Max. working height = 10.50m (32’81”)
Max. lateral outreach = 6m (19’7″)
Capacity = 120kg, 1 man basket, no outriggers
Rotation = 420°

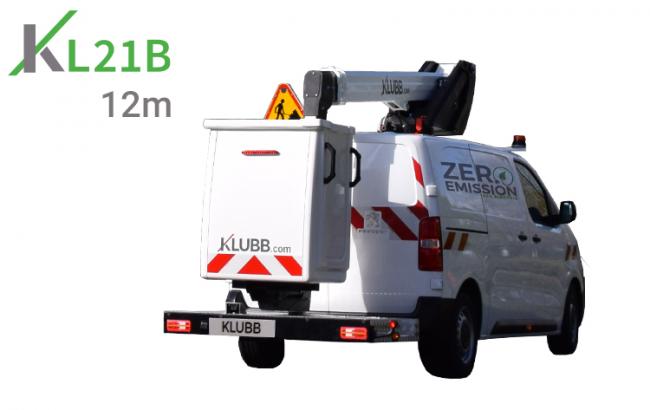

11.40m Telescopic aerial platform on Peugeot E-Expert Electric KL21B

11.40 Meters Van Mounted Boom Lift (39')




This 100% electric platform van is a very powerful vehicle with its 11.40m working height and offset of 6.40m. Very compact, it has been designed to operate in tight spaces while maintaining adequate storage capacity and payload to transport tools and equipment. Easy to park and position on the road in order to not obstruct traffic, this electric platform van is a real asset for working in the city. It is also possible to use it for indoor operations since this machine does not emit polluting gases.Regarding autonomy, it can perform 32 aerial platform cycles and 230km (*) WLTP on the road, which represents an excellent solution for all companies who want to invest in environmentally friendly solutions.

KLUBB Model = KL21B
Max. working height = 11.40m (37’40”)
Max. lateral outreach = 6.40m (23′)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°

Case study

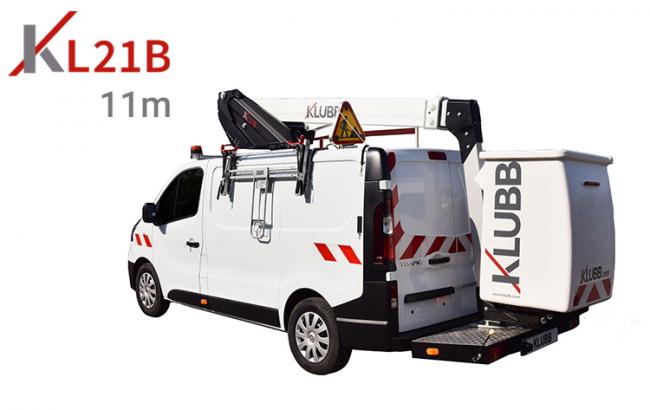

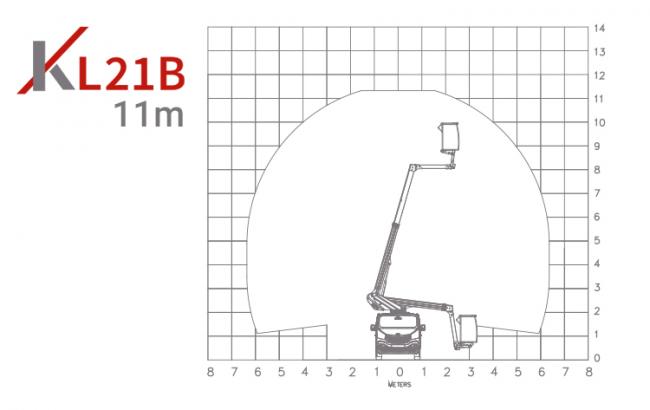

11.40m Telescopic aerial platform on Renault Trafic KL21B

11 Meters Van Mounted Boom Lift (36′)

One of the main features of this platform mounted on a mini van is its small size that allows working at height in tight spaces, especially in the city. Despite its compactness, this aerial lift mounted on a mini van will surprise you with its storage capacity

KLUBB Model = KL21B
Max. working height = 11.40m (36’08”)
Max. lateral outreach = 6.80m (22’30”)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°

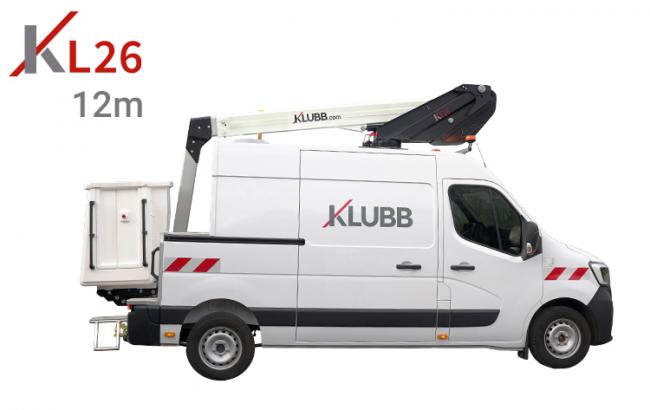

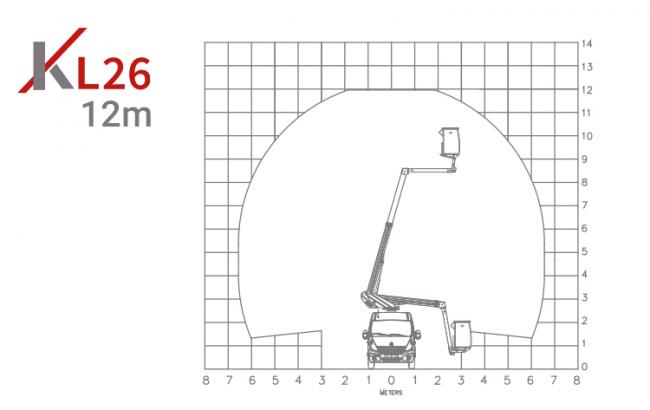

11.80m Telescopic aerial platform on Renault Master KL26

12 Meters Van Mounted Boom Lift (39’37”)

Very compact, this trunk van is specifically designed for urban interventions. Existing with a basket for 1 or 2 persons, this aerial work platform mounted on a KL26 truncated van allows a reach of 11,80m and an offset of 6,80m.

KLUBB Model = KL26
Max. working height = 11.80m (38’71”)
Max. lateral outreach = 6.80m (22’31”)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°

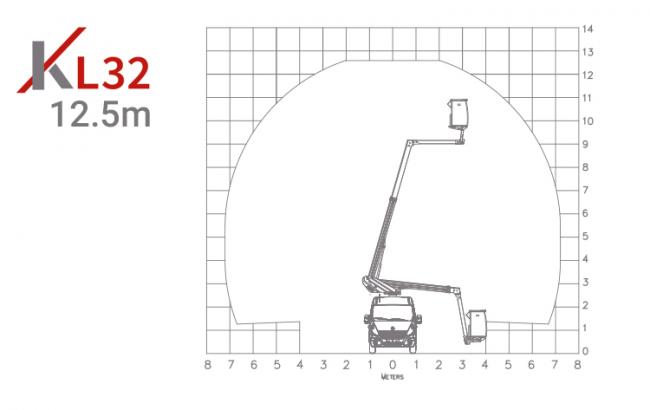

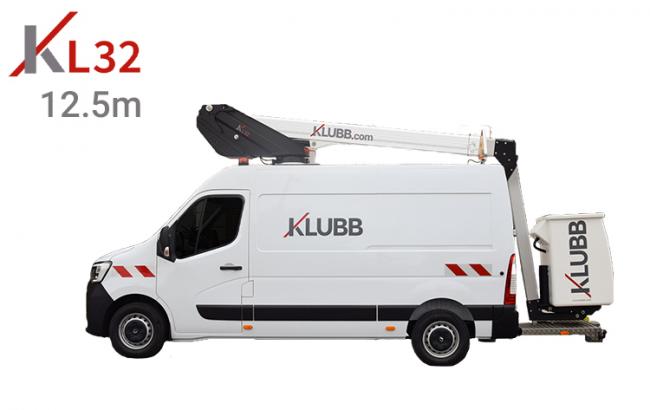

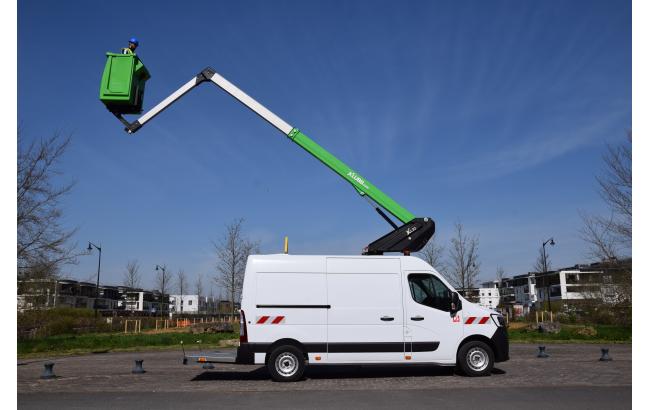

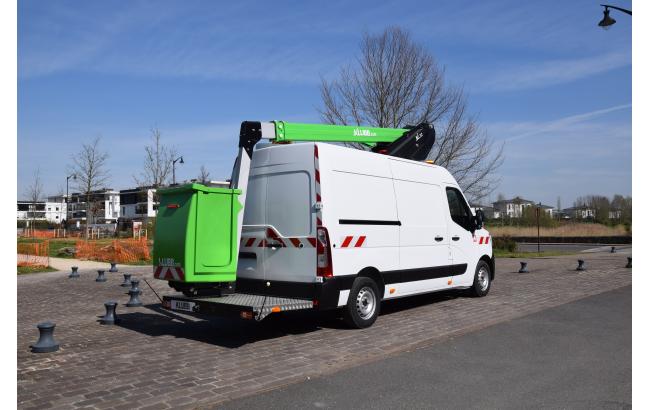

12.50m Telescopic aerial platform on Renault Master KL32

12.50 Meters Van Mounted Boom Lift (41’01”)

The KL32 van mounted lift is made for many inventions such as street lighting maintenance, pruning works but it can also be adapted to the maintenance of telecom networks. This aerial lift has a additional payload of 140kg.

KLUBB Model = KL32
Max. working height = 12.50m (41’01”)
Max. lateral outreach = 7.30m (23’95”)
Capacity = 120kg, 1 operator, no outriggers
Rotation = 360°

Case study

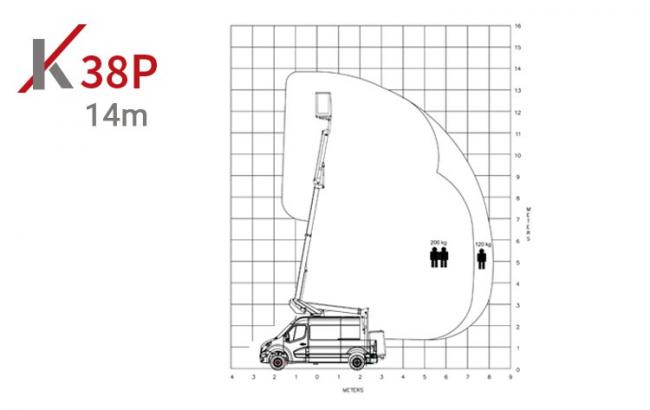

13.80m Telescopic aerial platform on Renault Trafic KL38P

14 Meters Van Mounted Boom Lift (45’93”)





Designed with the latest generation swing arm, this compact trunk van lift model is a real asset for urban work. Its exceptional performance makes it a perfect solution for all pruning work, electrics, sign installation or even building maintenance/ cleaning.

KLUBB Model = K38P
Max. working height = 13.80m (45’28”)
Max. lateral outreach = 8.20m (26’90”), 1 operator
Capacity = 200kg, 2 operators, with outriggers
Rotation = 360°

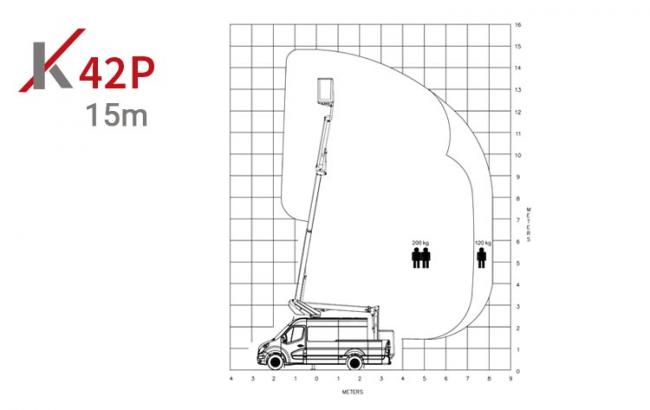

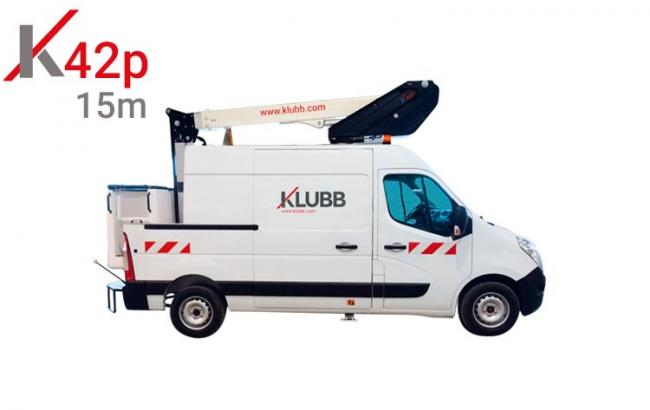

14.80m Telescopic aerial platform on Renault Master K42P

14.80 Meters Van Mounted Boom Lift (49’03”)

Designed with the latest-generation jib, this van lift model offers many possibilities. Its exceptional performance makes it a perfect solution for all pruning work, electrics, signs installation or cleaning of surfaces at height.

KLUBB Model = K42P
Max. working height = 14.80m (49’03”)
Max. lateral outreach = 8.20m (26’90”), 1 operator
Capacity = 200kg, 2 operators, with outriggers
Rotation = 360°

Case study

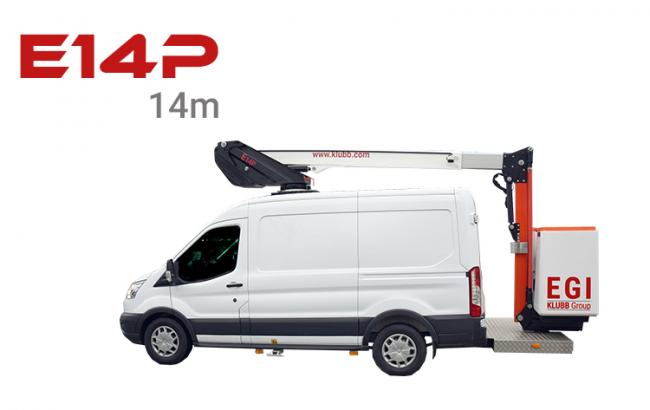

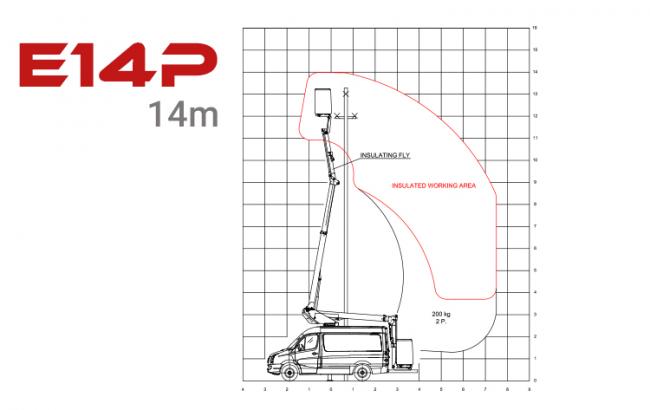

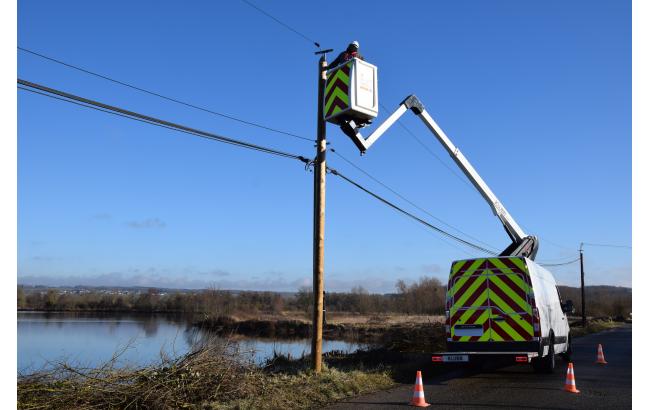

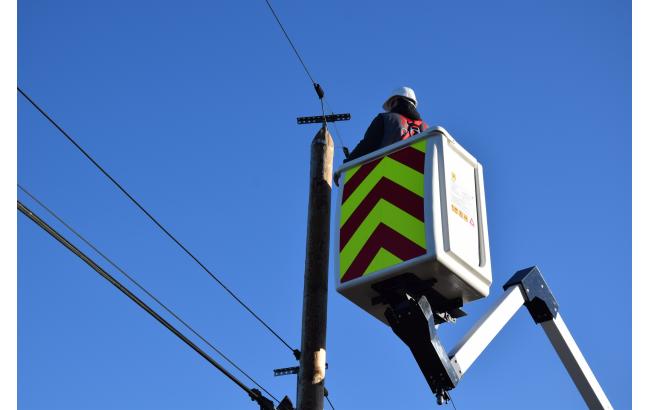

14m Insulated aerial platform on Ford Transit E14P Insulated

14 Meters Van Mounted Boom Lift (45’11”)

Designed with the EGI-Klubb Group latest generation of insulated arms, this compact van lift model is insulated up to 46 kV. This a real asset for urban work on distribution lines …

KLUBB Model = E14P
Max. working height = 14m (45’11”)
Max. lateral outreach = 7.50m (24’7″)
Capacity = 200kg, 2 operators, with outriggers
Rotation = 360°

Due to the possibility to combine the use of the van as a mobile workshop and the use of the access platform, Klubb van aerial platform are the match for all work at height in cities and narrow street. We also have already positioned ourselves at the forefront of technical engineering development. The result is that we can offer the best payload on the market for each of our 8 van with bucket lift models.

Our van have a unique and flexible telescopic and articulated boom lift. You can reach 9 meters (30 ft) to 15 meters (49 ft) working height and 6 meters (15ft) to 8 meters outreach (27 ft). We recognize that you are demanding more innovation from vehicle mounted aerial platforms and are eager to update your existing machines more frequently to take advantage of new features and capabilities.

Consequently, KLUBB is committed to a process of continuously upgrading its van bucket product range, with improvements and enhancements based on customer feedback. The perfect exemple of innovation is our electric lift platform, the K20, mounted on a compact E-NV200 Nissan van. Ecological and very compact, it allows operation without noise and emission of harmful substances, so it is particularly suitable for all work at height in urban areas: maintenance of public lighting or video surveillance systems, maintenance of green spaces…
