Working Height : 13.80
Offset : 8.20
Rotation : 360
14 Meters Van Mounted Boom Lift (45’93”)
Capacity = 200kg, 2 operators, with outriggers

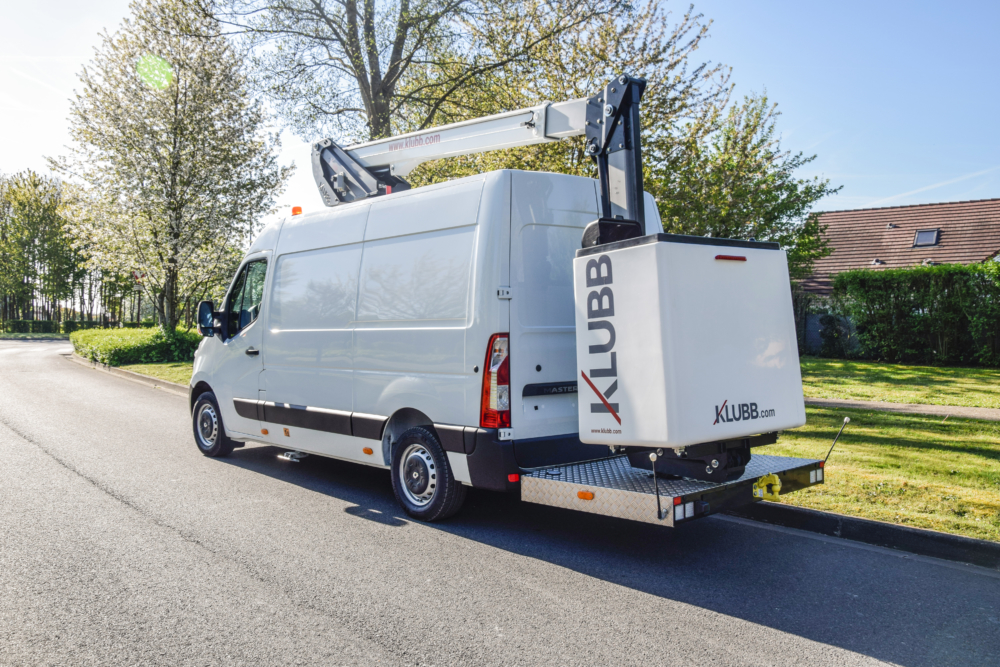

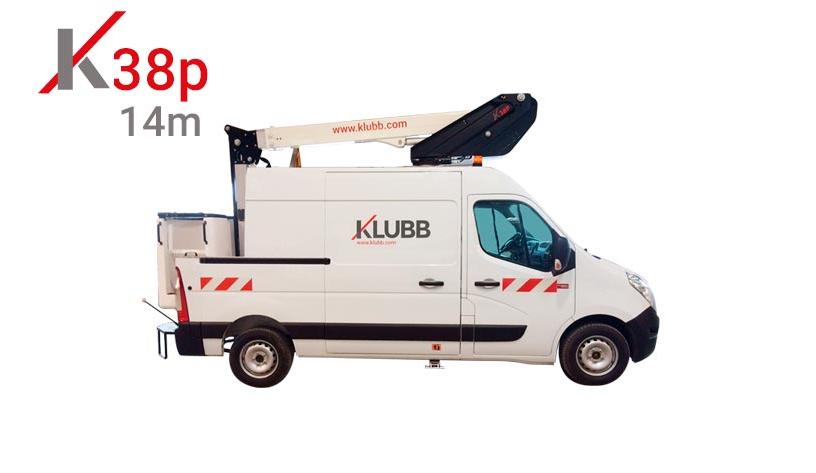

Designed with a latest-generation swing arm, this compact KL38P van body lift model is a real asset for urban work. Its exceptional performance make it a perfect solution for all pruning work, electrics, signs installation or even cleaning of surfaces at height.
This van-mounted aerial platform is in great demand by companies operating in urban areas.
This model of van hoist makes it possible to combine impressive performance with 13.80m working height and especially with an offset of 8.20m, to a reduced size. Easy to park in urban areas, the KL38P aerial platform has a large loading capacity to store work tools, signal pads or spare lamps. It’s a great conversion for working in the city efficiently.
Do you need to carry more bulky equipment for some interventions? This unit can be equipped with a towing hook allowing you to easily pull a trailer.

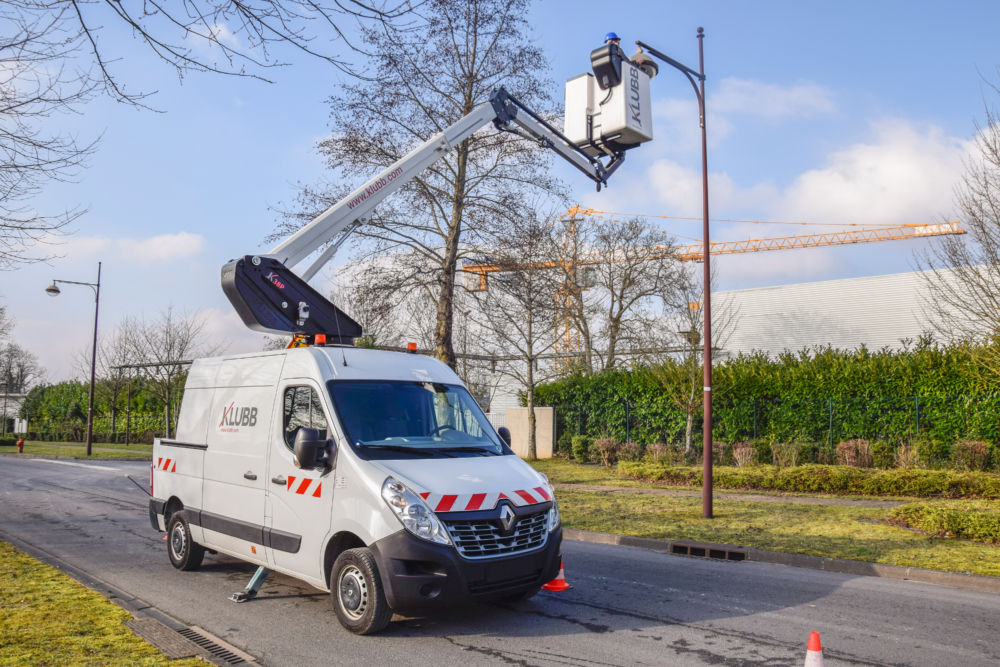

This very versatile model will be suitable for many applications: pruning, electrics, sign installation or even cleaning of surfaces at height …
STANDARD FEATURES
Engine start and stop from the basket
Independent emergency electric pump with all the features in the basket for maximum security
Proportional controls
Secure access to the working platform
Hoses and cables are inside the boom structure for maximum protection
Aluminium boom for optimum stability

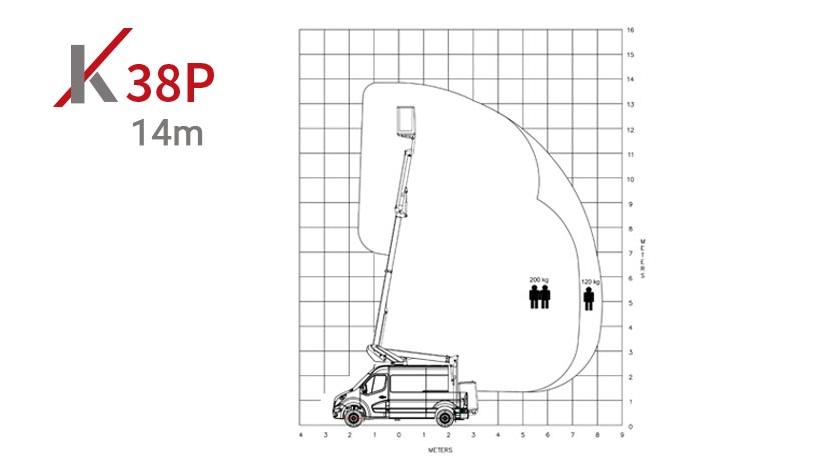

Technical Specifications
Max. working height : 14 m (45’93”)
Max. working outreach : 8.20 m (26’24”)
Boom rotation : 360°
Max. working load : 200Kg
Max. platform height : 12 m (39'37")
Outriggers : 2 outriggers
Basket size : 125 x 75 x 110 cm
Chassis weight : ≤3.5 T
Max. working outreach : 8.20 m (26’24”)
Boom rotation : 360°
Max. working load : 200Kg
Max. platform height : 12 m (39'37")
Outriggers : 2 outriggers
Basket size : 125 x 75 x 110 cm
Chassis weight : ≤3.5 T
Arm : Telescopic
Engine : Gas
IPAF category : 1b
Lifting mechanism : hydraulic
Lifting mechanism : hydraulic
EXAMPLES OF VEHICLES
RENAULT TRAFIC L1H1
PEUGEOT EXPERT L2H1
For vehicles options, please contact us besfore,
