Working Height : 11.80
Offset : 6.80
Rotation : 360
12 Meters Van Mounted Boom Lift (39’37”)
KLUBB Model = KL26Capacity = 120kg, 1 operator, no outriggers

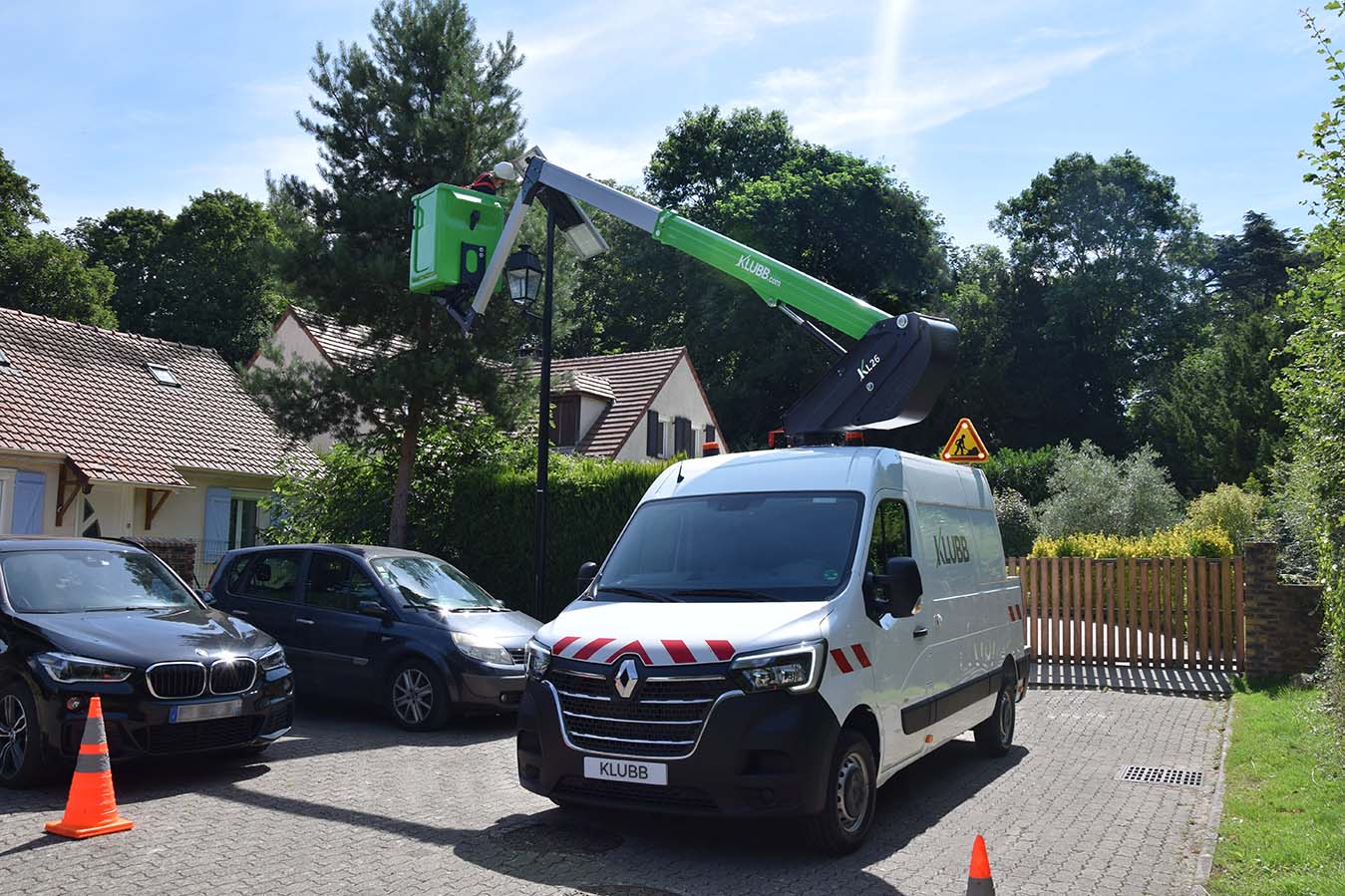

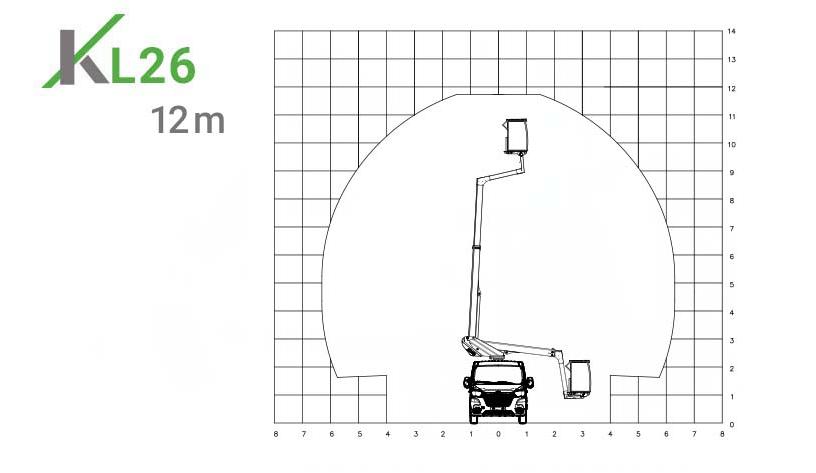

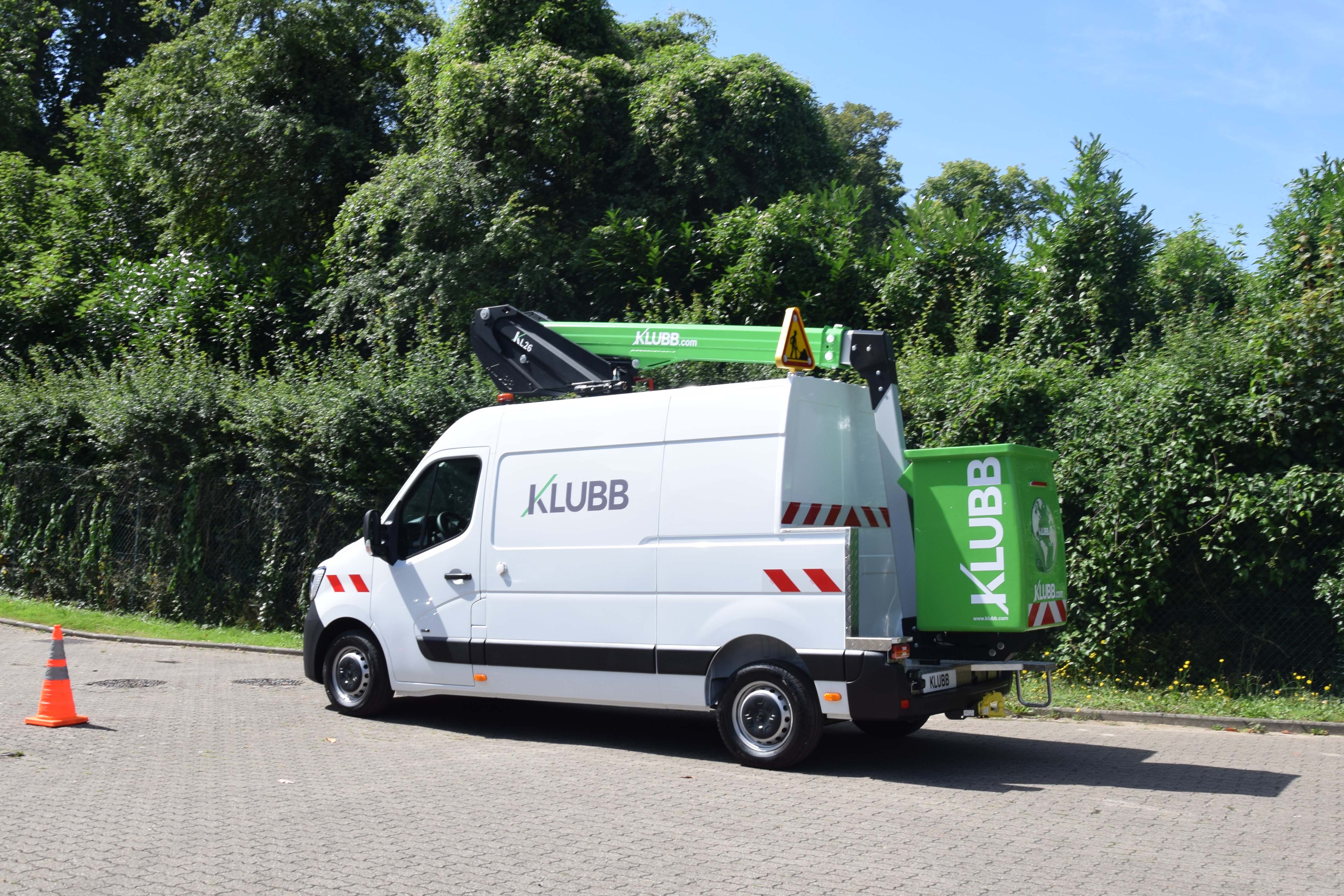

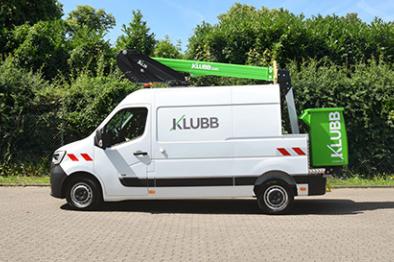

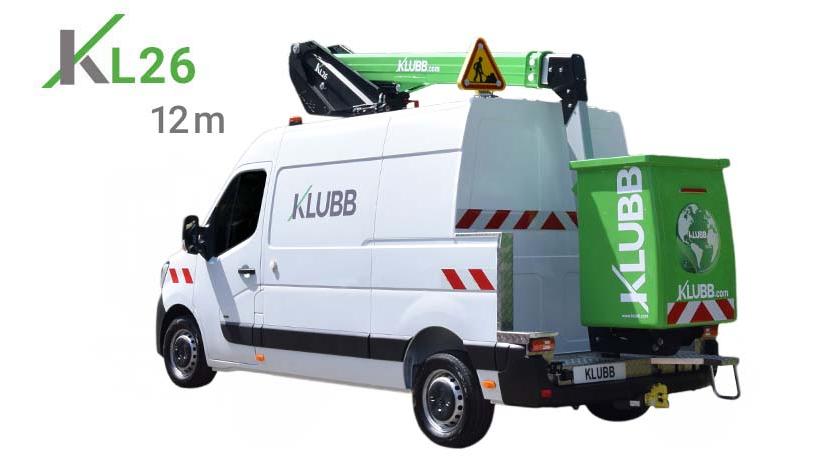

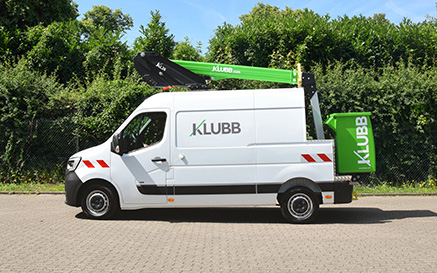

The KL26 is a bucket van model with a telescopic boom allowing you to reach up to 11.80m working height and 6.80m offset.

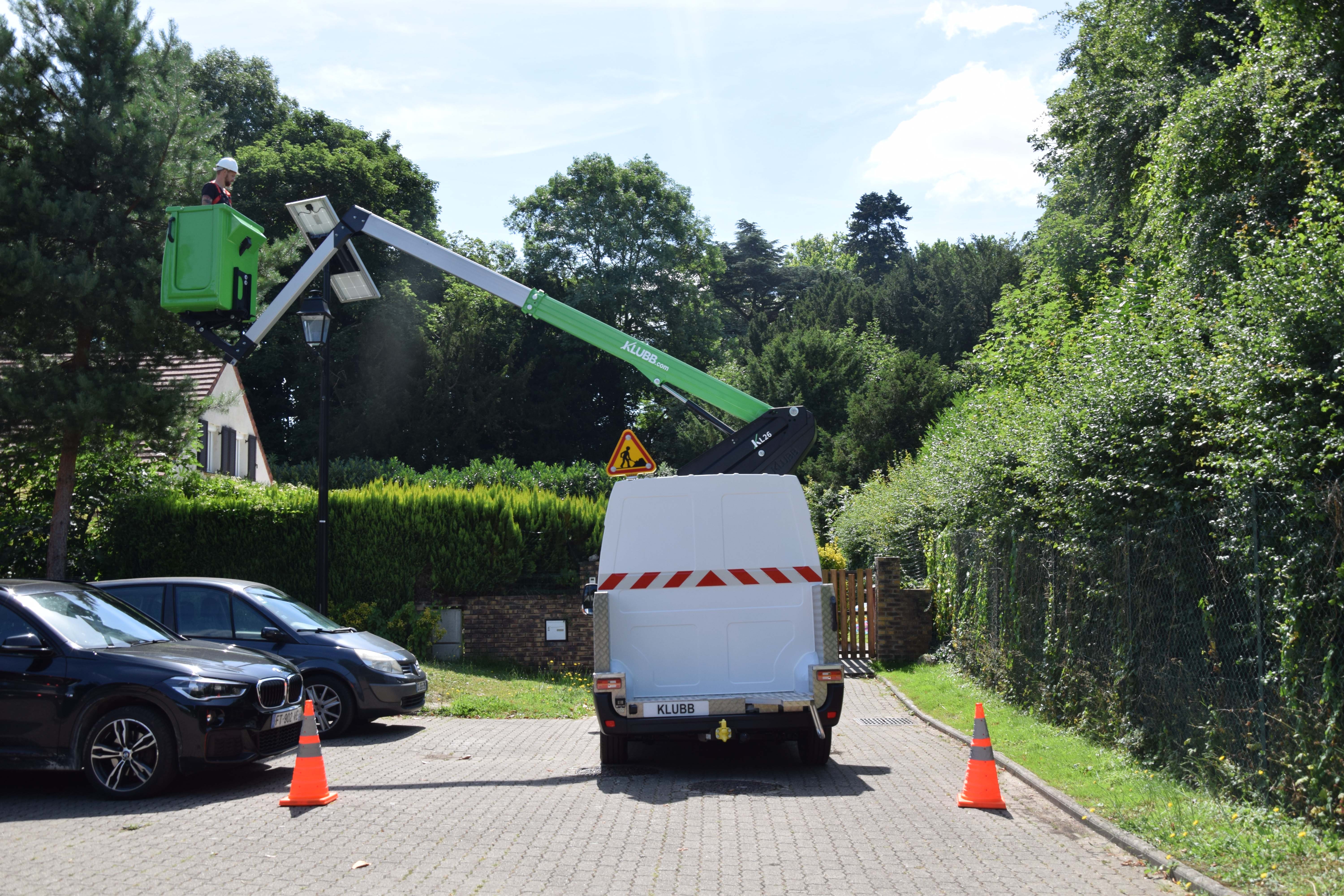

Ideal for telecom maintenance or street lighting maintenance in urban areas, this 100% electric van aerial platform allows you to drive quietly without releasing any emissions into the environment!
This KL26 on a Master e-Tech obtains a large loading capacity. In order to optimise this useful space, we suggest you equipt it with storage units and flooring / walls adapted to your profession. This saves you time in the organisation of your work and safety in your travels.
The rear doors of this van can also be replaced by a curtain to facilitate the change and unloading of your equipment.
We also take care of installing all the luminous signs necessary for work on the highways: retro-reflective strips, flashing light, triflash…
The performance of this bucket van allows it to perfectly meet the needs of professionals who work at height and who need space to store their equipment and tools… 100% electric, this van allows work at height with the vehicle engine off. With a strong benefit in terms of reduction in CO² emissions and noise pollution, increase in vehicle longevity and reduction in TCO!
STANDARD FEATURES
- Electropump on lithium battery
- Independent emergency electric pump with all the features in the basket for maximum security
- Full proportional controls
- Secure access to the working platform
- Hoses and cables are inside the boom structure for maximum protection
- Aluminium boom for optimum stability
Technical Specifications
Max. working height : 11.80 m (38'90")
Max. working outreach : 6.80 m (22'40")
Boom rotation : 360°
Max. working load : 120Kg
Max. platform height : 9.80 m (32'20")
Outriggers : no outriggers
Basket size : 86 x 72 x 110 cm
Chassis weight : ≤3.5 T
Max. working outreach : 6.80 m (22'40")
Boom rotation : 360°
Max. working load : 120Kg
Max. platform height : 9.80 m (32'20")
Outriggers : no outriggers
Basket size : 86 x 72 x 110 cm
Chassis weight : ≤3.5 T
Arm : Telescopic
Engine : Electric
Licence : 1b
EXAMPLES OF VEHICLES
RENAULT MASTER L2H2 E-TECH
For vehicle options, please contact us before ordering
Recommended products
10.50m Telescopic aerial platform on cutaway Peugeot E-Expert Electric K20L
10.50 Meters Van Mounted Boom Lift (39’37”)

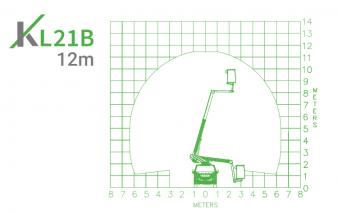

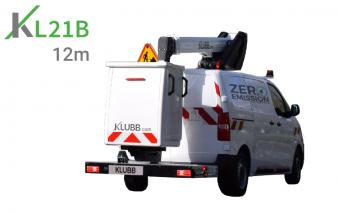

11.40m Telescopic aerial platform on Peugeot E-Expert Electric KL21B
