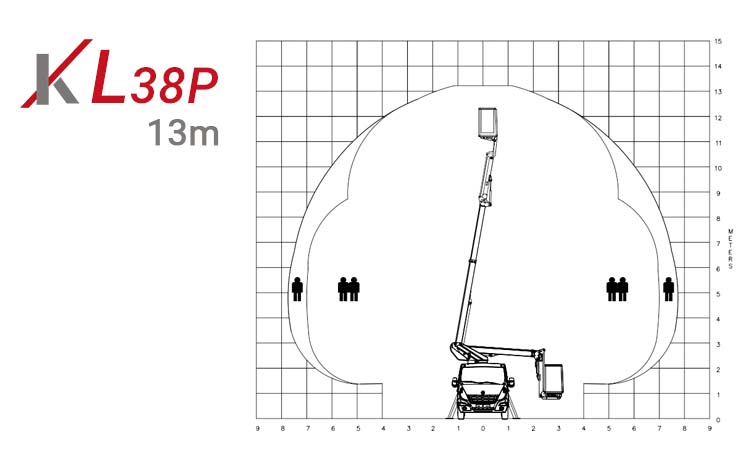

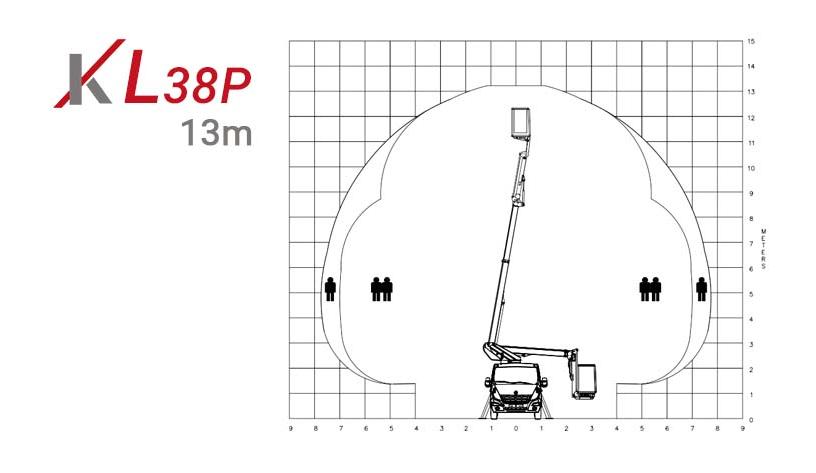

Working Height : 13.20
Offset : 7.30
Rotation : 360

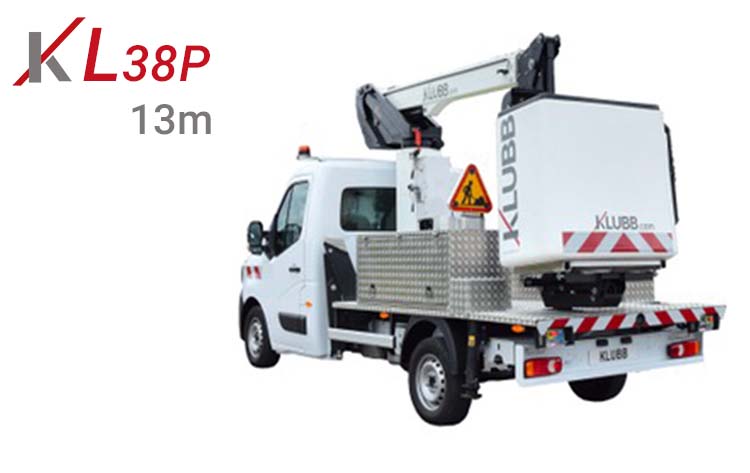

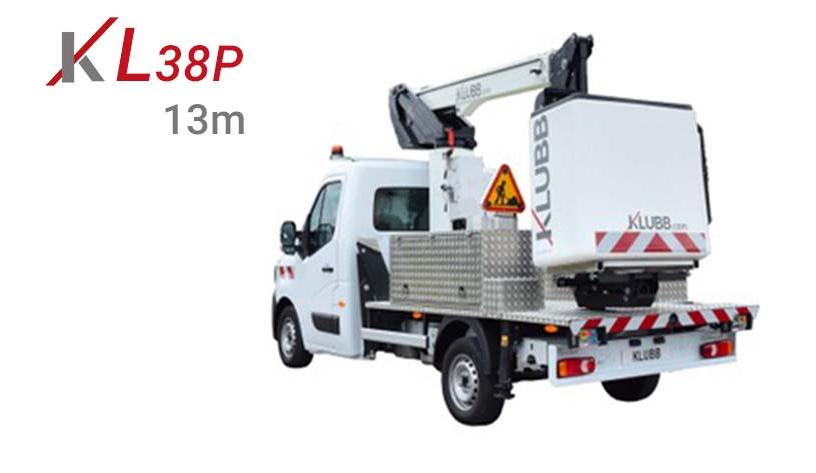

13.20 Meters Truck Mounted Platform (42’65”)
KLUBB Model = KL38PCapacity = 200kg, 2 operators
This aerial work platform with a working height of 13.20m and an offset of 7.80m on a light truck chassis can be equipped with boxes and sides to load your equipment.
Its fly Jib allows you to easily overcome high obstacles such as tree branches or cables.
Its insulated boom lift designed for 2 people (200kg) ensures comfort and additional safety if you work near power lines.
This aerial work platform with fly Jib is particularly suitable for work on networks, installation and maintenance of public lighting...
Standard Specifications
Engine start and stop from basket
Hour meter
Emergency circuit on independent electric pump with all functions in the basket for maximum safety
Aluminum top mast for optimal stability
Proportional controls on all movements
Secure access to the work platform
Rigid protective cover for the controls in the upper position
Options
Signalling devices
220V electric socket in basket
Reinforced suspensions
Trailer hook
Fully opening insulated basket
Custom fitting out of vehicles
Side ladder rack
Aluminum side panels
Aluminum trunks
Green Pack: basket operation on battery, engine off
Basket for 2 persons with stabilizers with controls in basket
For more platform options, please contact us before ordering
Recommended products
13.80m Telescopic aerial platform on Renault Trafic KL38P
14 Meters Van Mounted Boom Lift (45’93”)
14.80m Telescopic aerial platform on Renault Master K42P
14.80 Meters Van Mounted Boom Lift (49’03”)
"green pack"
The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
