Working Height : 24
Offset : 12
Rotation : 360
24 Meters Bucket Truck Chassis (78'7")

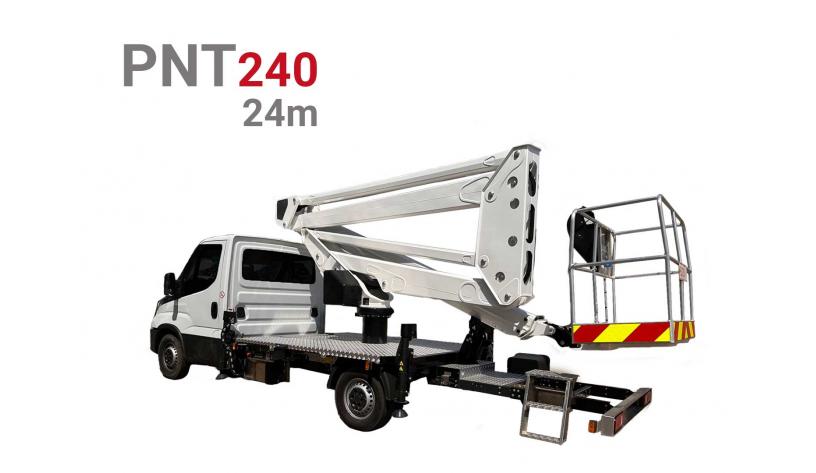

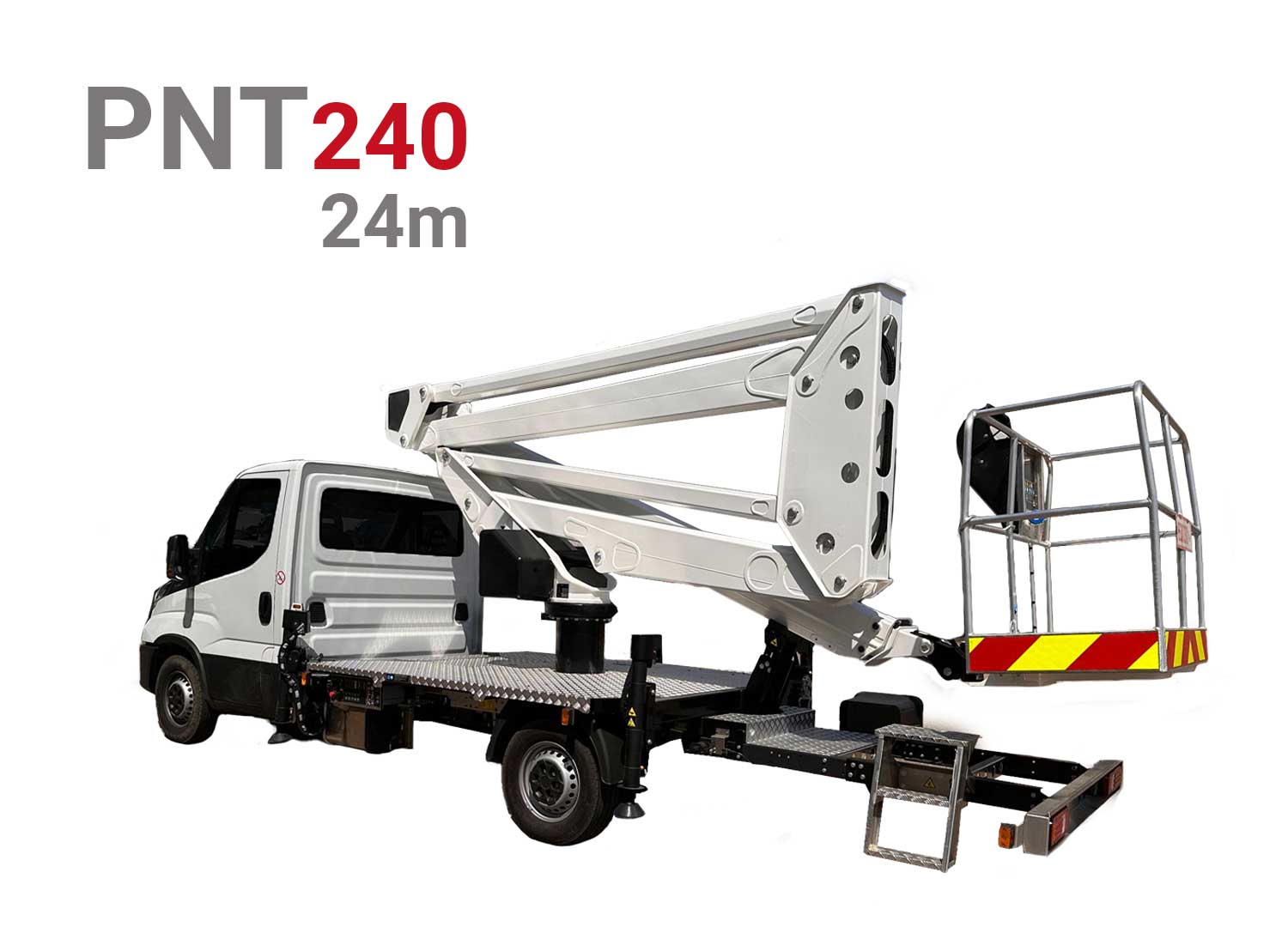

KLUBB Model = PNT 240Capacity = 250

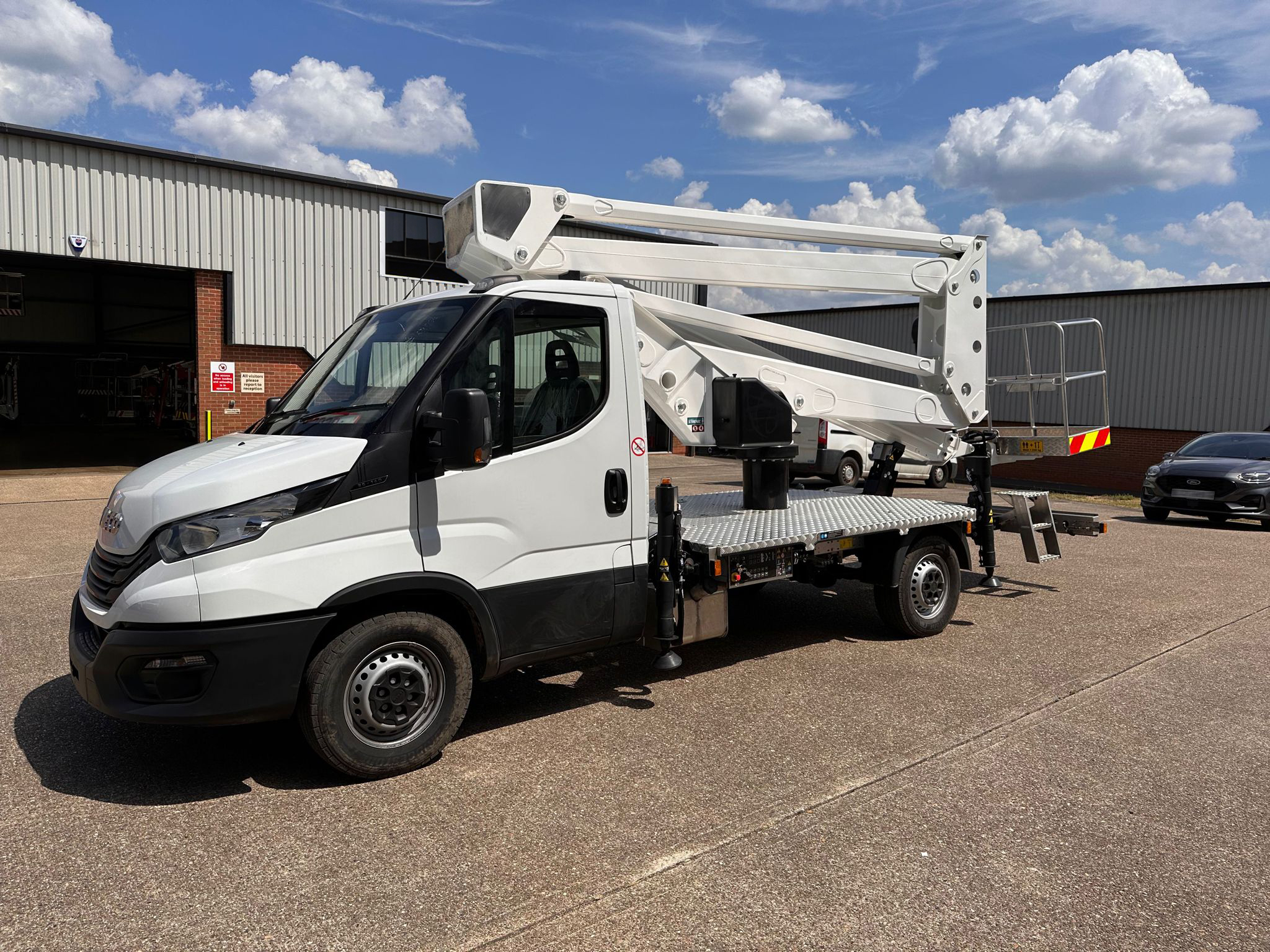

The PNT 240 is an articulated boom lift designed for working at height. In addition to its ability to access difficult areas with its articulated arm, it has the advantage of integrating hydraulic stabilizers, thus offering the operator the possibility to work in optimal conditions even in the presence of obstacles.

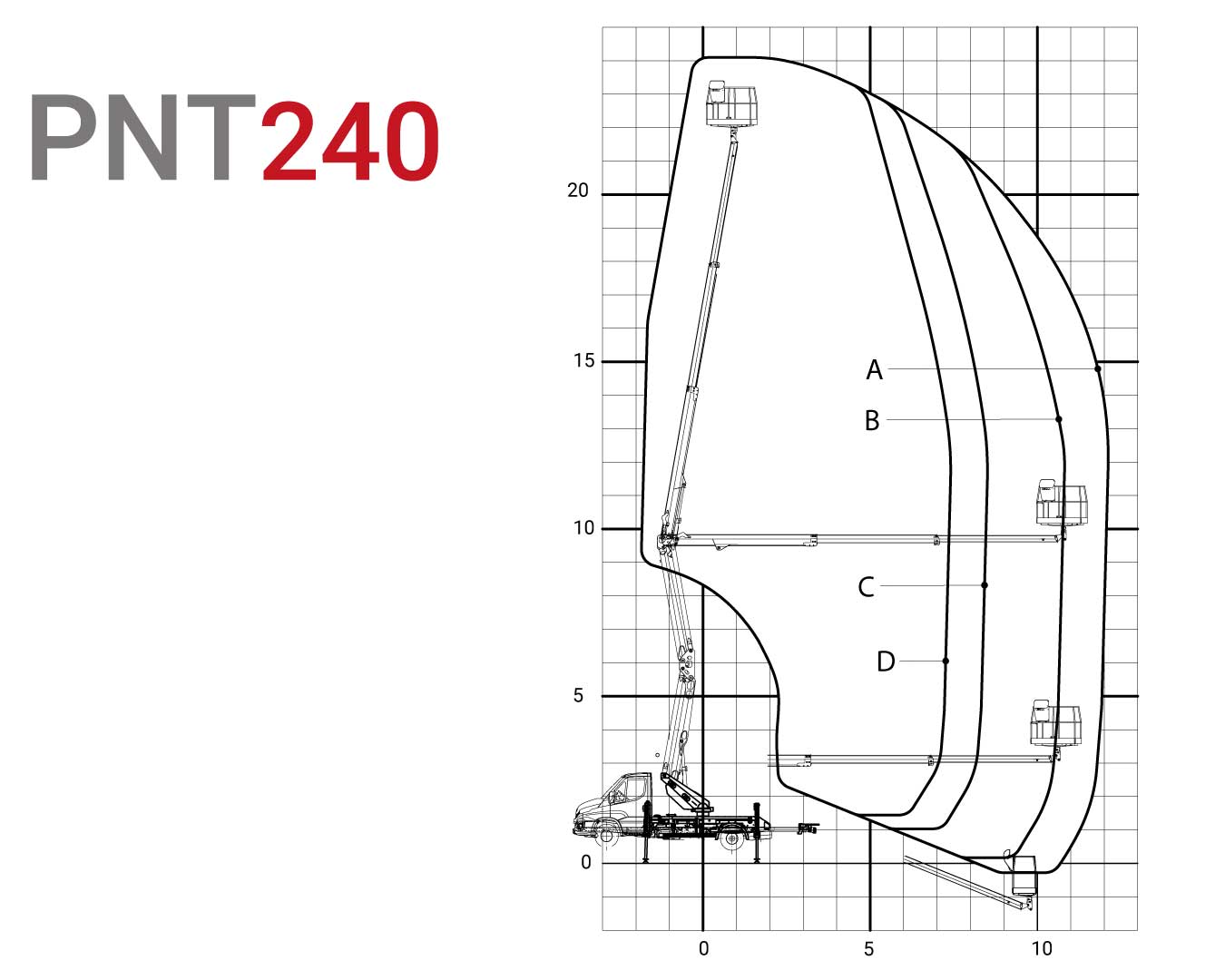

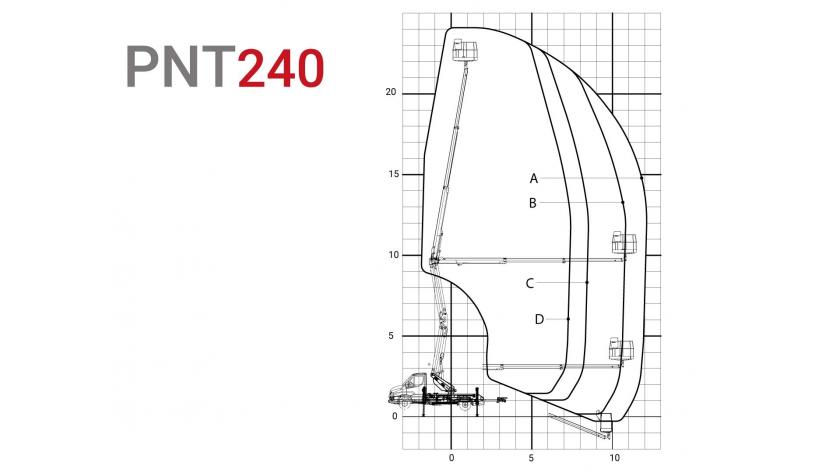

With a working height of 24 meters and an outreach of up to 12 meters, this truck-mounted lift is suitable for a wide variety of tasks at height such as public lighting maintenance, Christmas decorations, and tree pruning.
Its 360-degree rotating basket, capable of supporting a load of up to 250 kg, is convenient for operators needing tools and equipment to work at height.
You can add options such as the signaling kit including gyro and triflash, a drop-side, chests or high-level protection.
STANDARD FEATURES
- Engine stop/start in basket
- Emergency circuit on manual pump
- Proportional controls on all movements
- Secure access to the work platform
- Conveyor chain for hoses inside the mast for an optimal protection
- 220V circuit in nacelle
- Rigid PVC protection of the controls at the top station
EXAMPLES OF VEHICULES
Iveco Daily (Wb.3750)
Isuzu M21 (Wb.2760)
TECHNICAL SPECIFICATIONS
Max. working height : 24m (74'7)
Max. working outreach : 12m (39'3)
Boom rotation : 360°
Max. working load : 230 kg
Outriggers : Four H outriggers
Basket size : 125 x 75 x 110 cm
Chassis weight : < 3.5 T
Recommended products

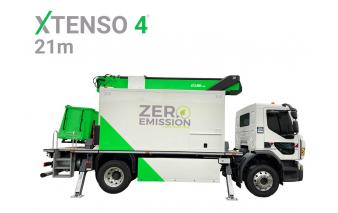

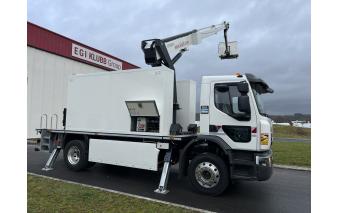

21m Electric aerial platform on Renault Trucks D18 Wide Z.E Xtenso 4® (Workshop version)
21 Meters Aerial Platform Truck (68’90”)

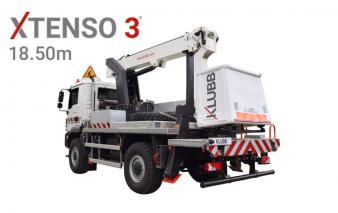

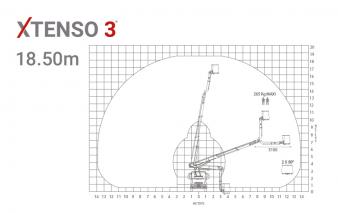

18.50m Telescopic aerial platform on Man TGL Xtenso 3® (Chassis version)
18.5 Meters Truck Aerial Platform (60’70”)

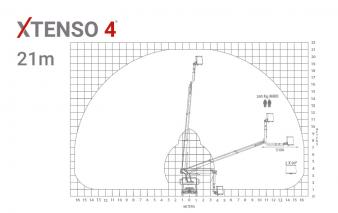

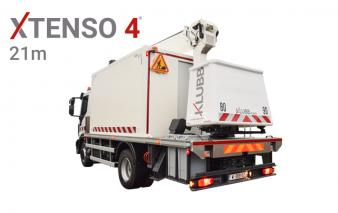

21m Telescopic aerial platform on Man TGM Xtenso 4® (Workshop version)
