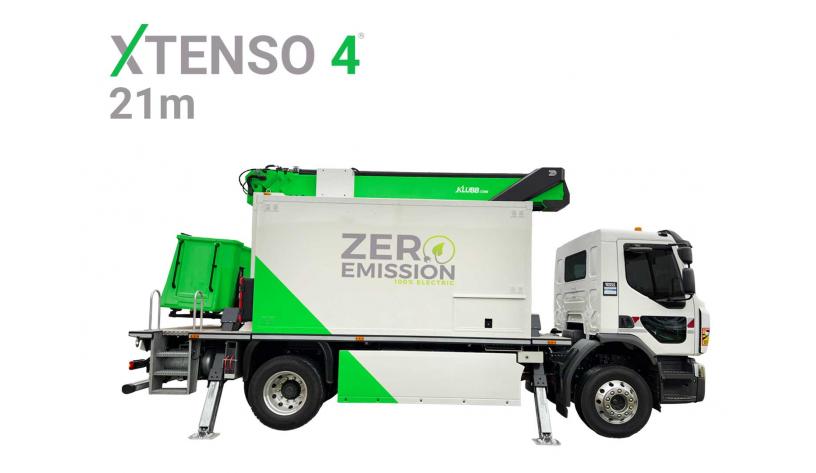

21m Electric aerial platform on Renault Trucks D18 Wide Z.E
Xtenso 4® (Workshop version)
Working Height : 21.00
Offset : 16.40
Rotation : 420
21 Meters Aerial Platform Truck (68’90”)
KLUBB Model = Xtenso 4Capacity = 265 kg

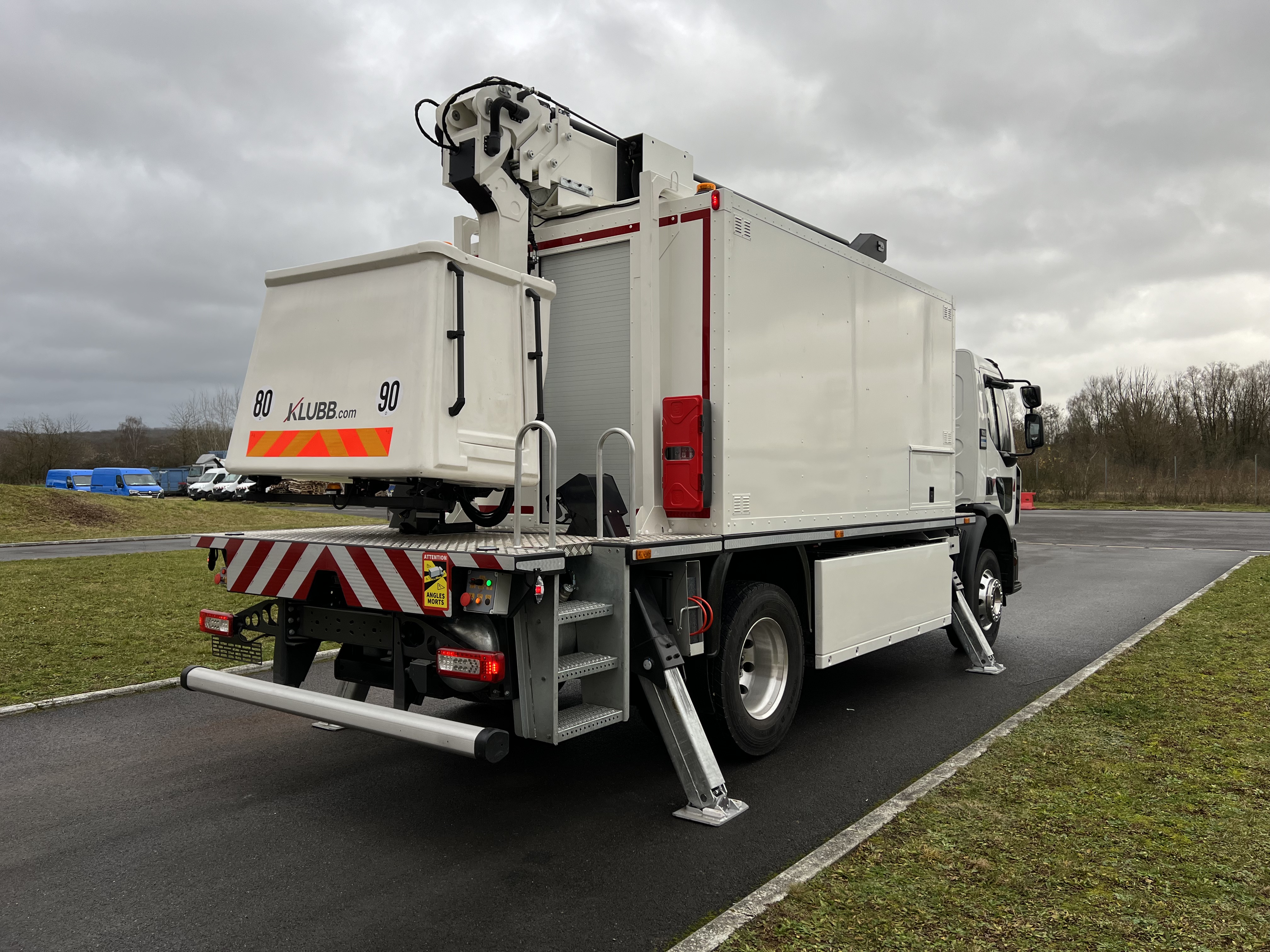

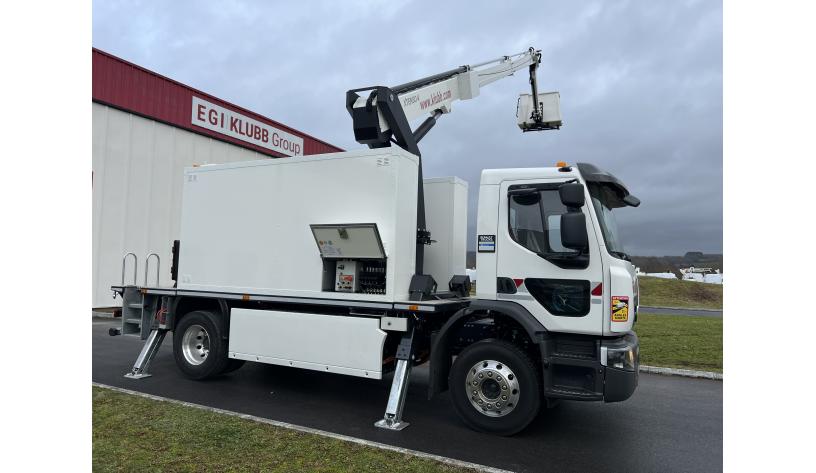

The XTENSO 4 is a telescopic aerial lift mounted on a Renault Trucks D18 Wide Z.E offering particularly remarkable performance, with a range of up to 180 km thanks to two electric motors totaling 370 kW. Not to mention the fact that it complies with environmental regulations, this aerial work platform with workshop cell offers an impressive working height of up to 21 m and an extended lateral offset of up to 16.40 m thanks to its telescopic and pendulum arm.
Equipped with a low-voltage insulated basket, this bucket truck is specifically designed to meet the needs of network operations and public lighting maintenance.
Its unique lifting arm is distinguished by its configuration, consisting of a first double telescopic arm and a second telescopic pendulum arm, offering exceptional 180° orientation. The nacelle provides total lateral offset up to a height of 7 m, with a maximum basket load.
When you need to reach greater heights, the XTENSO 4 offers an offset of 5.10 m at a working height of 15 m. Furthermore, the arm of this 21m aerial bucket truck provides 360° ground access to the basket, offering great flexibility when working at height.
STANDARD FEATURES
- Engine stop/start on nacelle
- Stabilisation independently controlled from the nacelle and from below
- Emergency circuit on manual pump
- Proportional controls on all movements
- Secure access to work platform
- Conveyor chain for hoses inside the mast for optimum
protection
- Automatic centring of nacelle and turret
- Lifting arm comprising a double telescopic main arm and a telescopic pendulum arm
telescopic pendulum arm with 180° orientation
- Telescopic pendulum arm for overhangs of more than 5.10 m and
360° ground access
- Hydraulic basket rotation in all positions, including on the ground
- Green Pack
- 2 electric motors with a total power of 370 kW (continuous power
power of 260 kW)
- 200kWh and 265kWh lithium-ion batteries
- Two-speed gearbox
Options
- Signalling (tri-flash, 2 flashing lights, stripes)
- 220V / Water / Air circuit in basket
- Low-voltage insulated all-opening basket
- Aluminium side panels and lockers
- Ladder rack
- Operating cycle without stabilizer
- Integral or asymmetrical workshop cell
TECHNICAL SPECIFICATIONS
Max. working height : 21m (68'89")
Max. working outreach : 9.50 m (29'52")
Boom rotation : 420°
Max. working load : 265Kg
Max. platform height : 17.10 m (55'77")
Outriggers : 4
Basket size : 89 x 115 x 156 cm
Chassis weight : > 3.5T
Arm : Telescopic
Engine : Electric
IPAF catgory : 1b
Lifting mechanism : hydraulic
