17.30m aerial platform on van - KL17P
Working Height : 17
Offset : 10.5
Rotation : 420
17.30 Meters Van Mounted Boom Lift (57’77”)
KLUBB Model = KL17PCapacity = 250

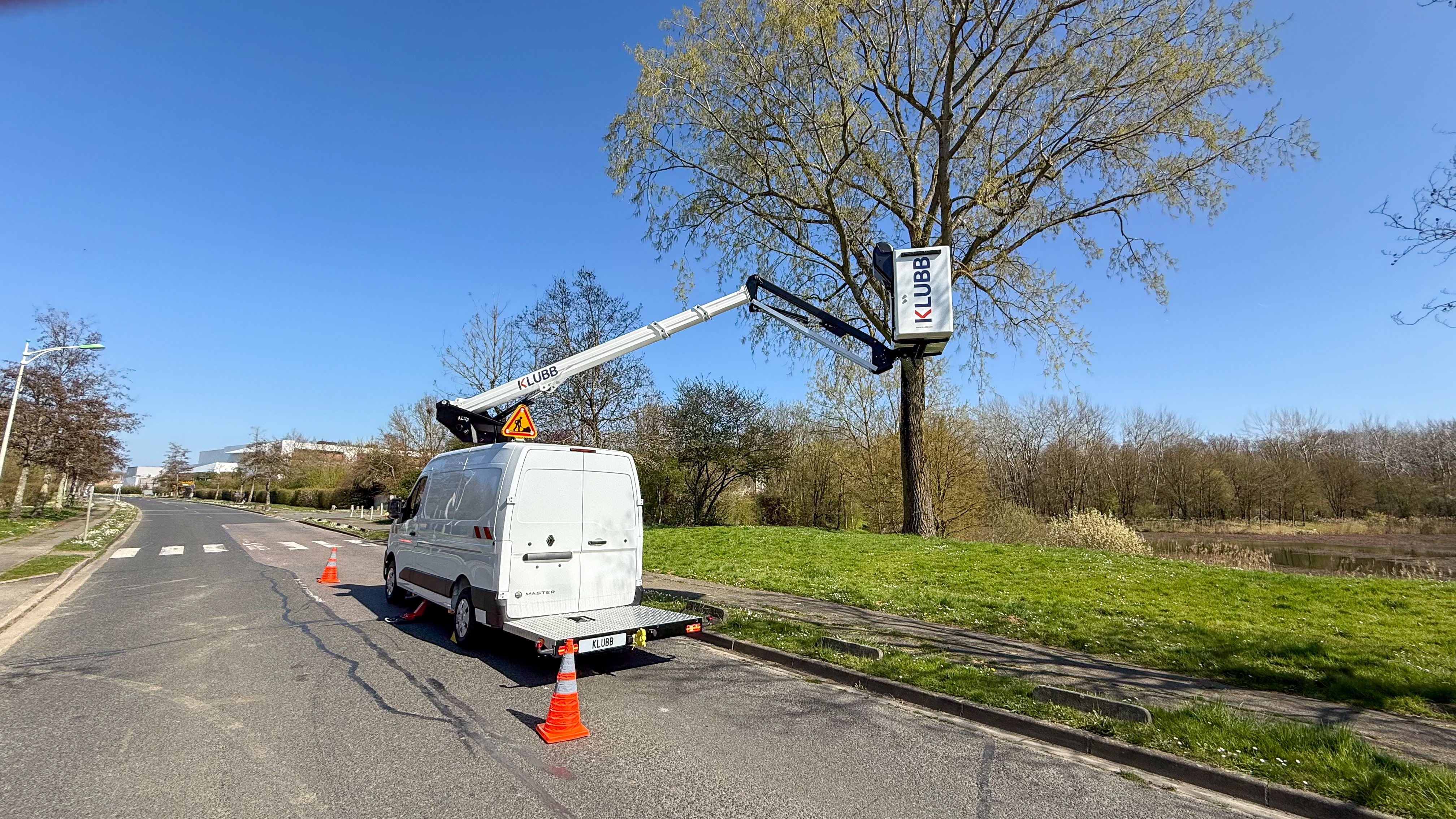

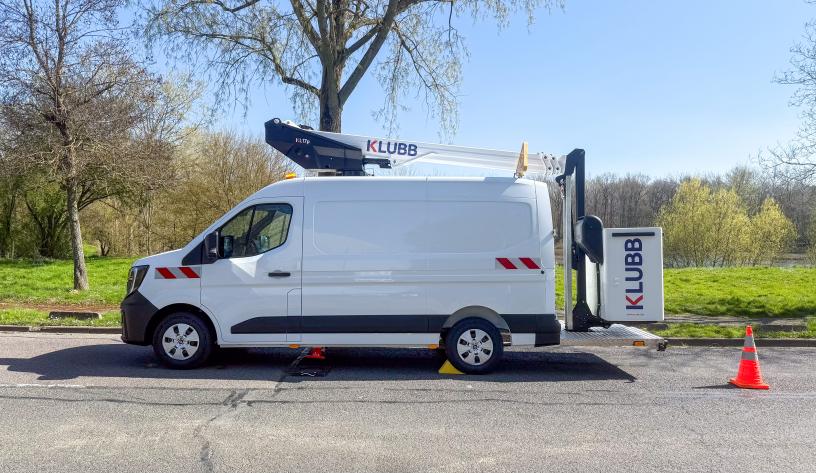

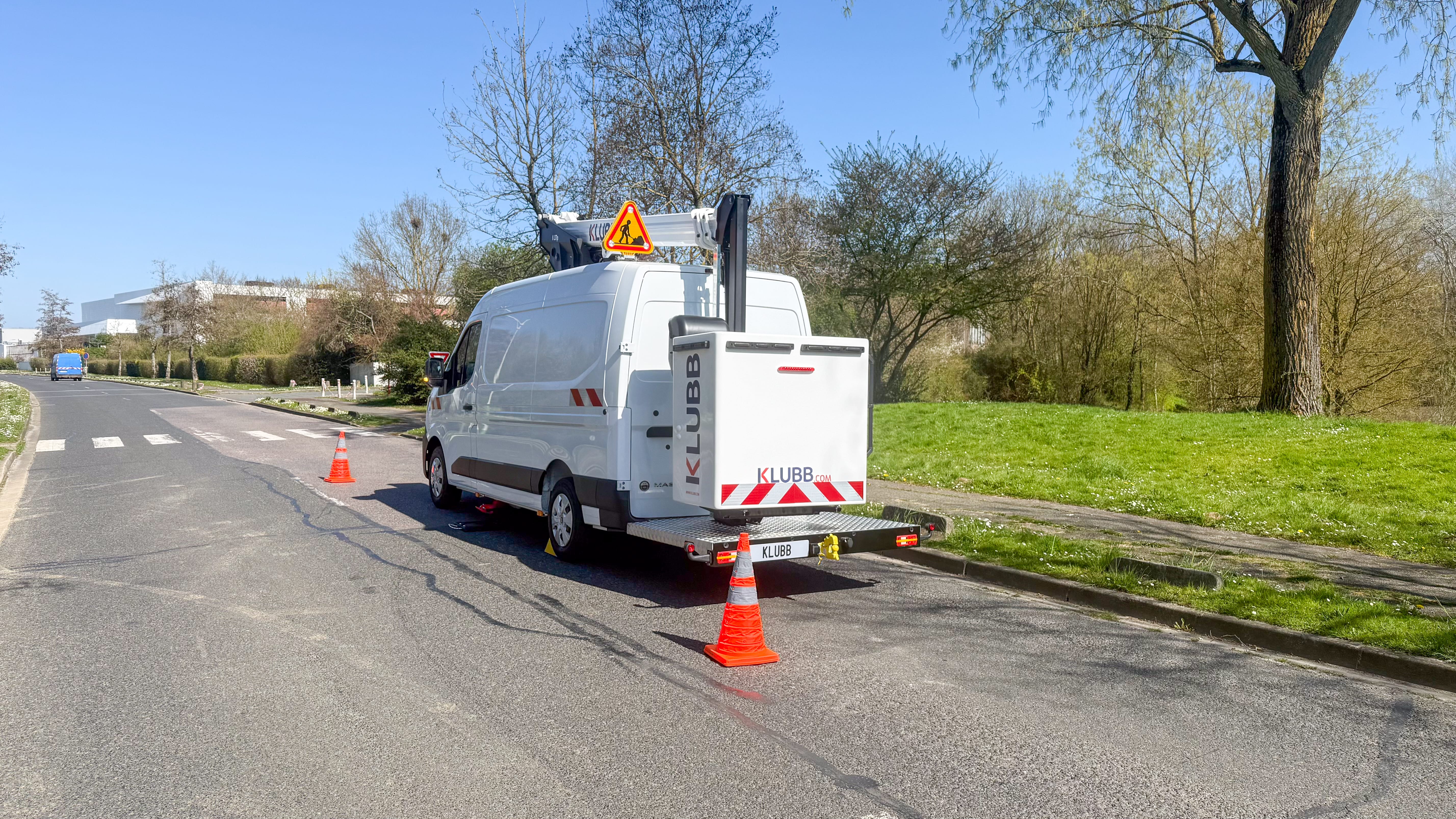

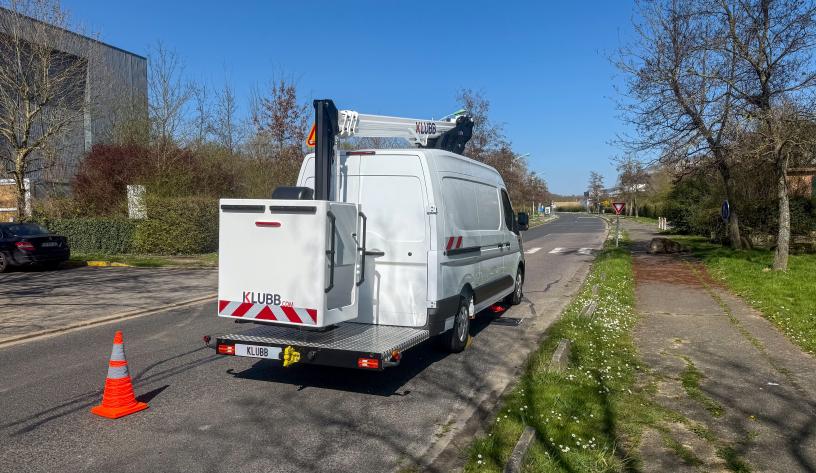

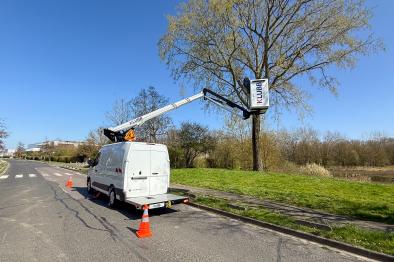

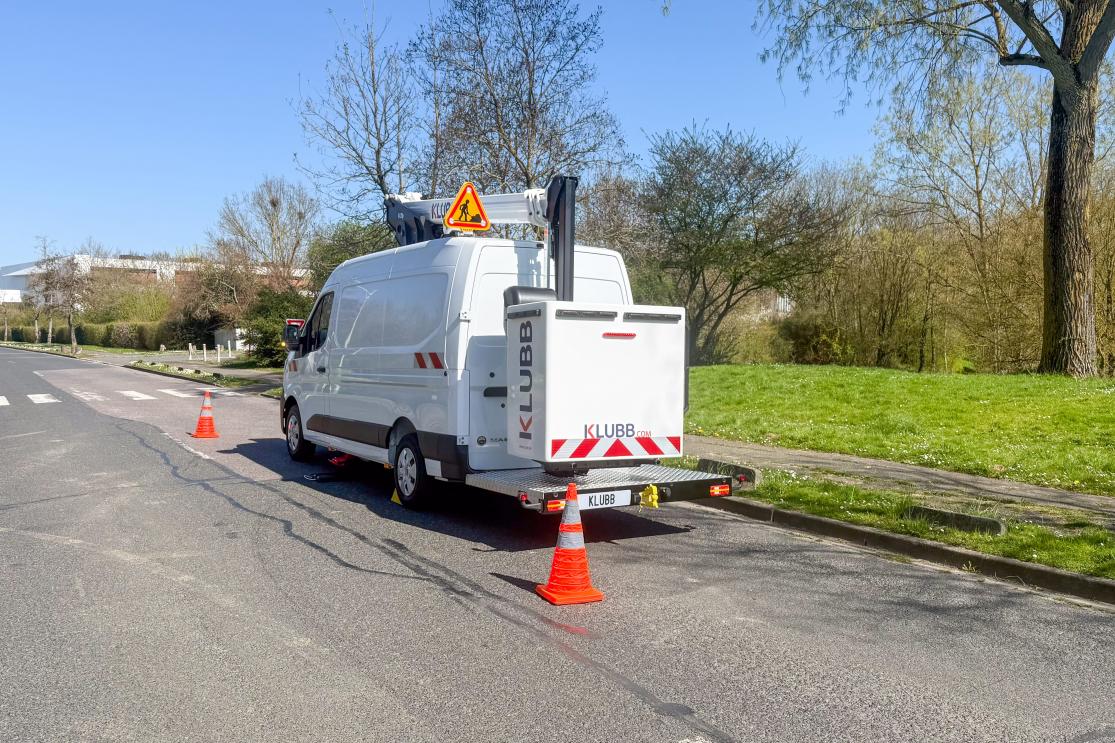

This van-mounted aerial platform is an innovative solution for working at height. The only platform on the market capable of reaching up to 17 metres on a light van (-3.5T), it combines performance, compactness and ease of use.
Its optimised high-performance steel arm, with double extension and integrated cylinder, offers maximum rigidity for reduced weight. The hoses and cables, fully protected inside the arm, ensure greater durability and safety.
This van equipped with a pendulum arm platform is a valuable asset for experts in working at height who are looking for the combined advantages of a platform lift and a workshop van. Its articulated jib and high-end components (ball bearings, low-friction pads) ensure precise, smooth and flexible movements. A reliable, high-performance and innovative platform, ideal for working at height!
STANDARD FEATURES
- New lightweight three-section boom

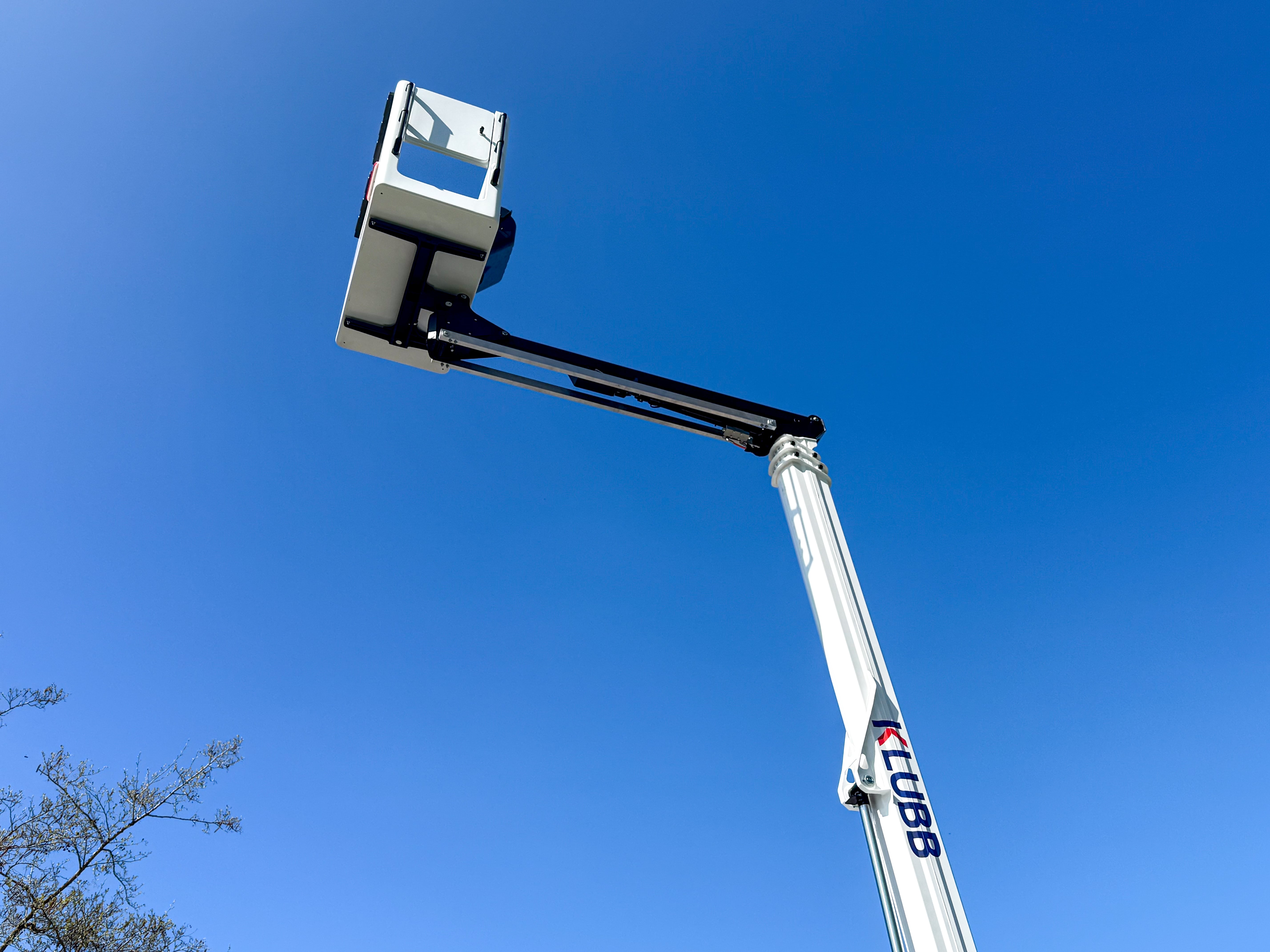

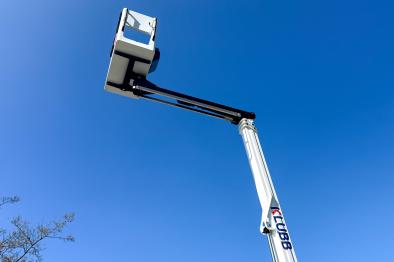

- New articulated jib geometry, lightweight and rigid
- New low-profile cab support
- New turret with improved rigidity and tail aligned with rear-view mirrors
- New lightweight, multi-bend column
- New multifunction upper control, with large 4.3-inch display
- New wired lower control, with fully proportional joysticks for each main movement
- New electro-hydraulic unit optimised for smooth, simultaneous and proportional operations/movements
- New control unit (ECU) with simplified wiring system
- Redundant safety moment limiter with encoder for sector management
- Acceleration and deceleration ramp managed by the control unit
- Anti-collision system
- Home function

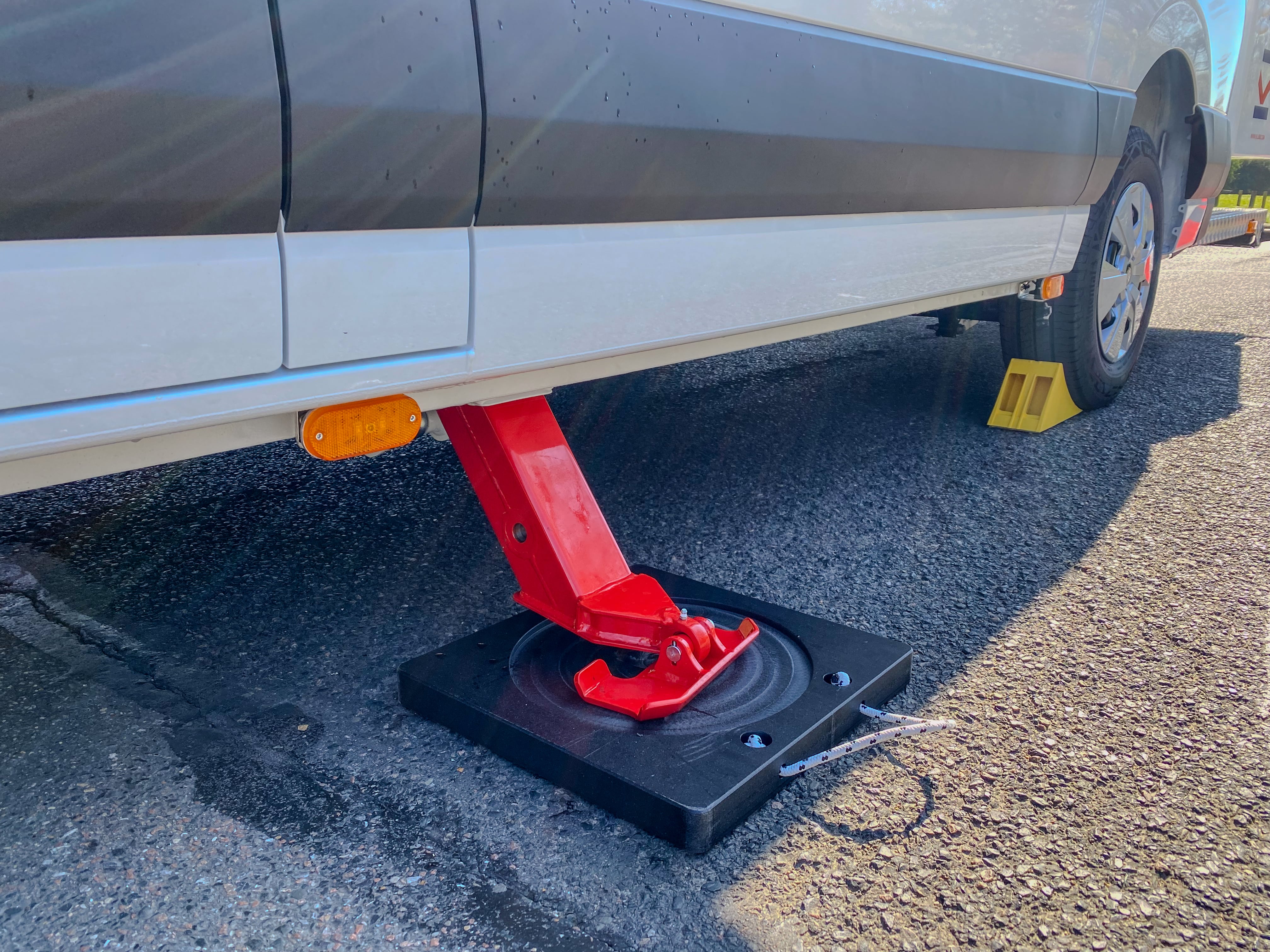

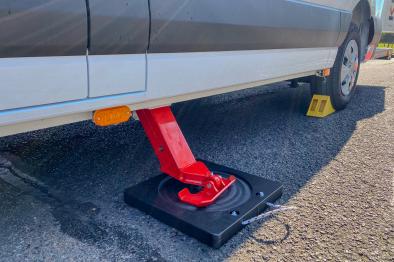

- Automatic stabilisation
- 1 kV insulation according to DIN VDE standard
OPTIONS
- Signalling (triple flash, 2 flashing lights, strips)
- 220V circuit in the basket
- Interior layout
- Rotating basket
- Green pack
EXAMPLES OF VEHICLES
- RENAULT MASTER XDD
For vehicles options, please contact us besfore,
Recommended products
16m telescopic aerial platform on Iveco Daily PT160E

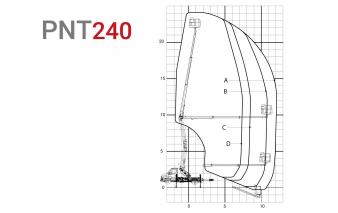

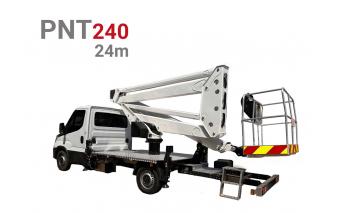

24m Articulated aerial platform on Iveco Daily PNT240
24 Meters Bucket Truck Chassis (78'7")
18.50m Telescopic aerial platform on Man TGL Xtenso 3® (Workshop version)
18.5 Meters Truck Mounted Platform (60’70”)
13m Telescopic aerial platform on Renault Maxity K32
13 Meters Bucket Truck Chassis (42’65”)
14.80m Telescopic aerial platform on Renault Master K42P
14.80 Meters Van Mounted Boom Lift (49’03”)

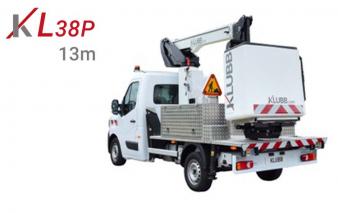

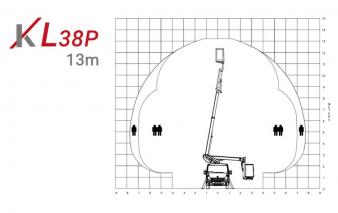

13.20m Telescopic aerial platform on chassis KL38P
