21m Telescopic aerial platform on Man TGM

Xtenso 4® (Chassis version)

icon working height Working Height : 21.00
icon offset Offset : 16.40
icon rotation Rotation : 420

21 Meters Aerial Bucket Truck (68’90”)

KLUBB Model = Xtenso 4
Capacity = 265kg, 2 operators With outriggers

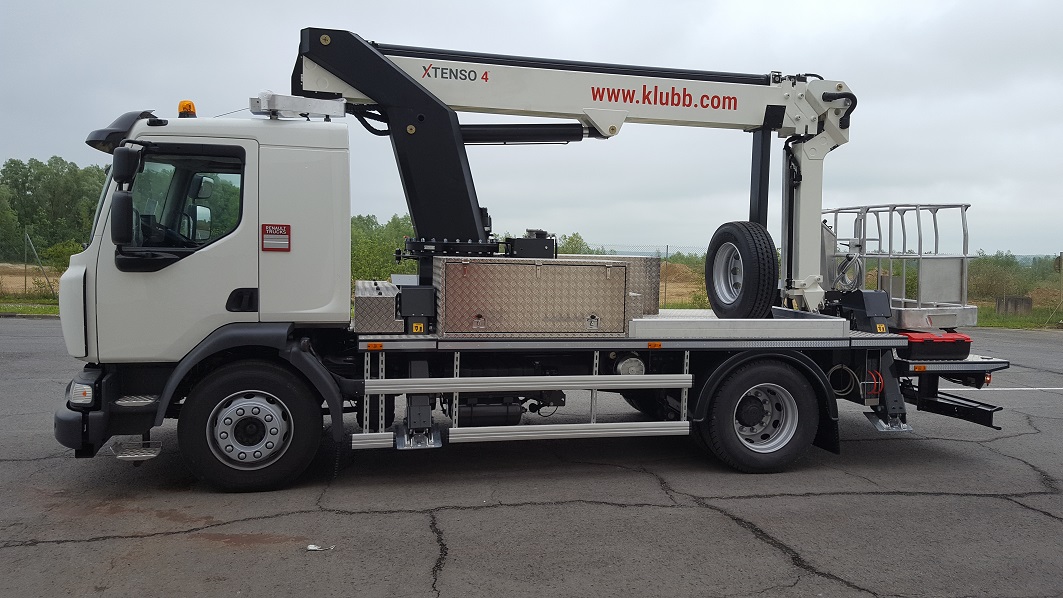

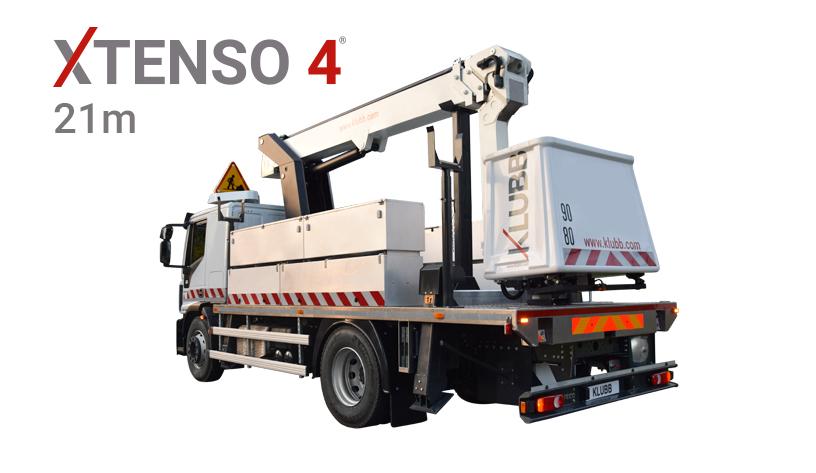

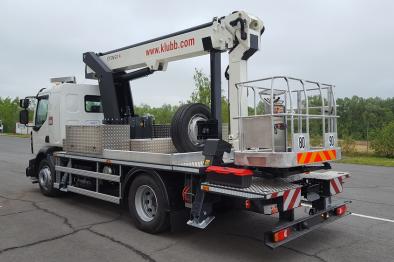

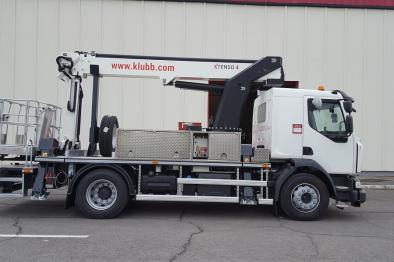

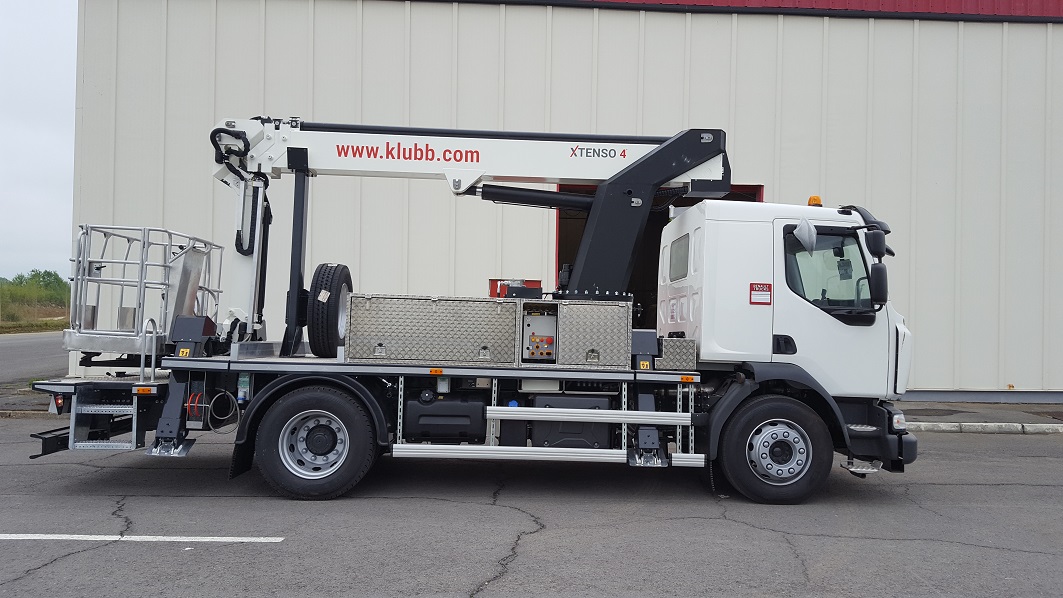

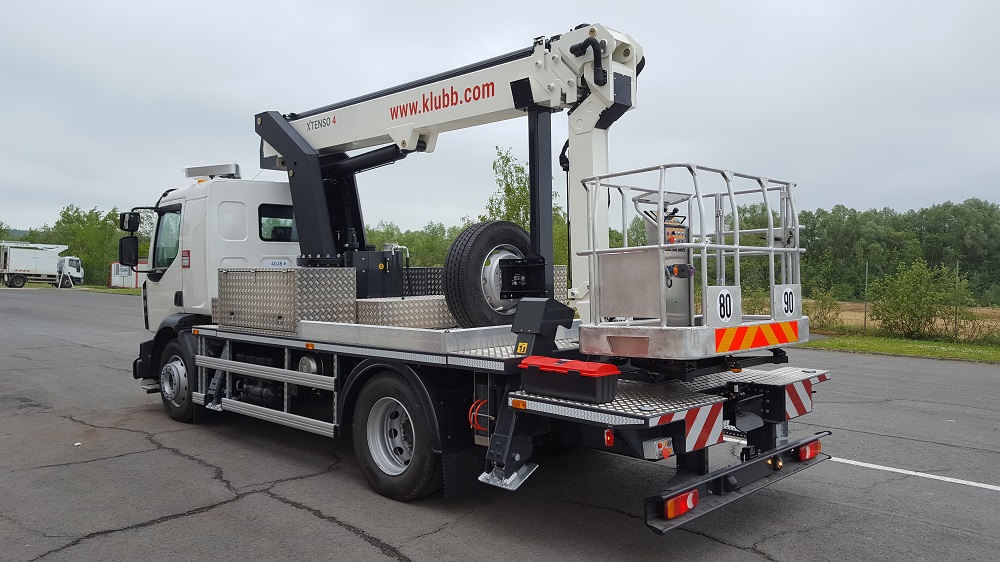

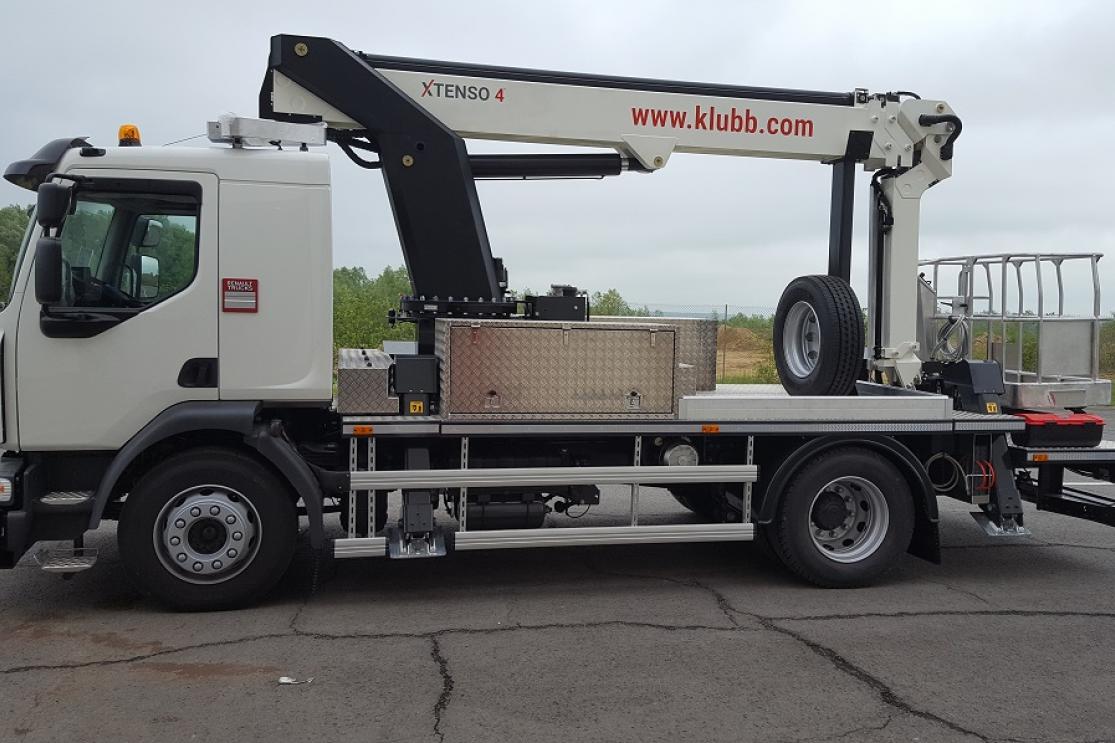

The Xtenso 4 is an access work platform mounted on a 16T truck that reaches a working height of 21m with lateral outreach of 16.40m.

This Truck mounted Aerial Work Platform by Klubb is a best-seller and includes:

Lift arm consisting of a main double telescopic arm and an articulated telescopic jib with a 180° range
Articulated telescopic jib with an up and over height of 5.10m, allowing 360° ground access
Lateral outreach with constant 265 kg basket capacity
Proportional controls for all movements

All the Xtenso platforms can be operated with the vehicle engine turned off using the Green Pack technology, which saves fuel and protects the environment.

These truck mounts models are designed for challenging work.



STANDARD FEATURES

Engine start and stop from basket
Stabilization with independent controls in the basket and from the ground
Independant emergency manual pump
Proportional controls on all movements
Secure acess to the working platform
Hoses and cables are inside the boom structure for maximum protection
Automatic centering of the platform and the turret
Lifting arm consisting of a double telescope and a telescopic jib with 180° orientation
Telescopic jib for an overhang of more than 5.10m and allowing 360° access to the ground
Hydraulic rotation of the basket in all positions

EXAMPLES OF VEHICLES

MAN TGM
IVECO EUROCARGO
RENAULT D
MERCEDES ATEGO

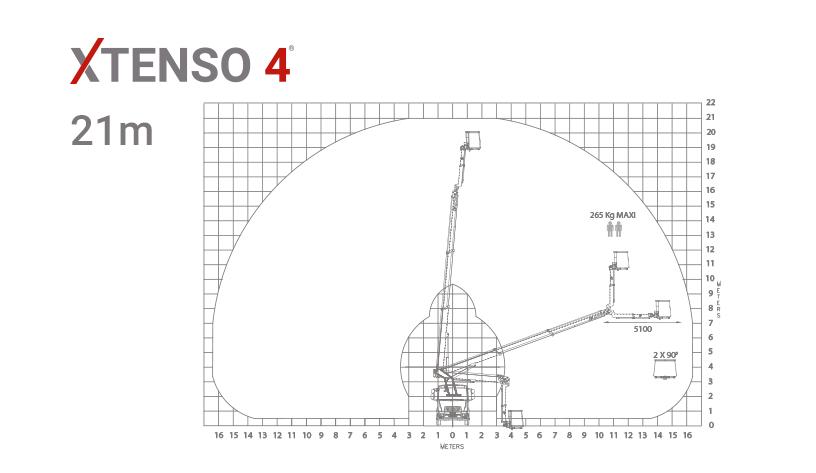

Technical Specifications

Max. working height : 21 m (68'11")
Max. working outreach : 16.40 m (53'10")
Boom rotation : 420°
Max. working load : 265Kg
Max. platform height : 19 m (62'40")
Outriggers : H-Shaped outriggers
Basket size : 89 x 115 x 156 cm
Chassis weight : + 3.5T
Arm : Telescopic
Engine : Gas
IPAF category: 1b
Lifting mechanism : hydraulic

icon eco friendly

"green pack"

The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
