Working Height : 11.80
Offset : 6.80
Rotation : 360

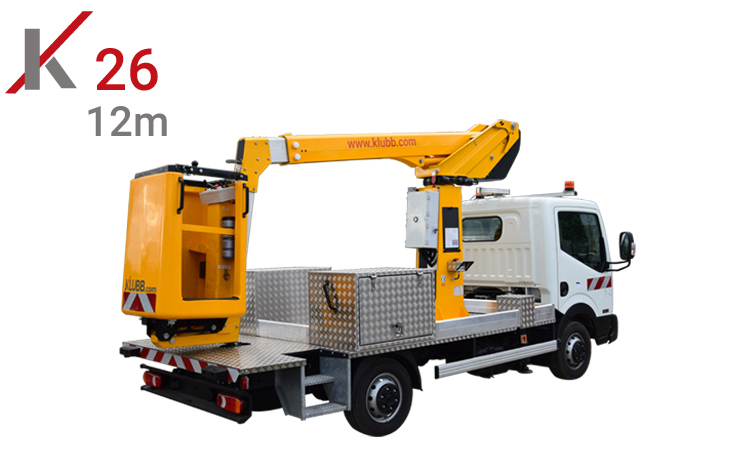

12 Meters Bucket Truck Chassis (39’37”)

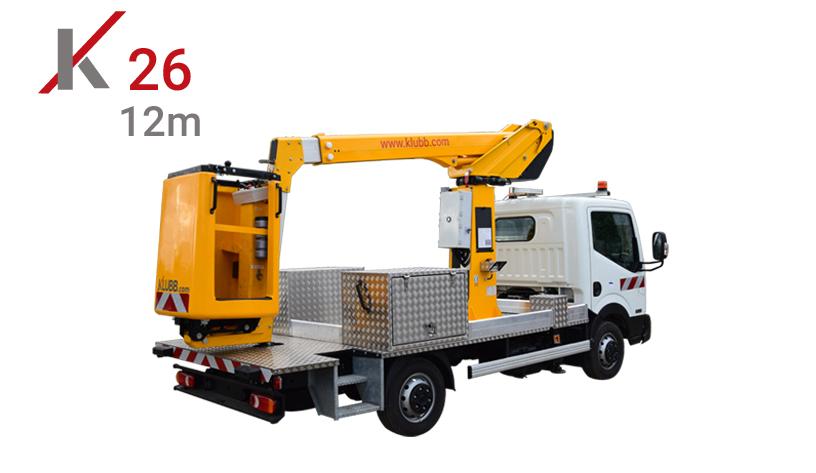

KLUBB Model = K26Capacity = 120kg, 1 operator, no outriggers 2 men basket with outriggers (option)

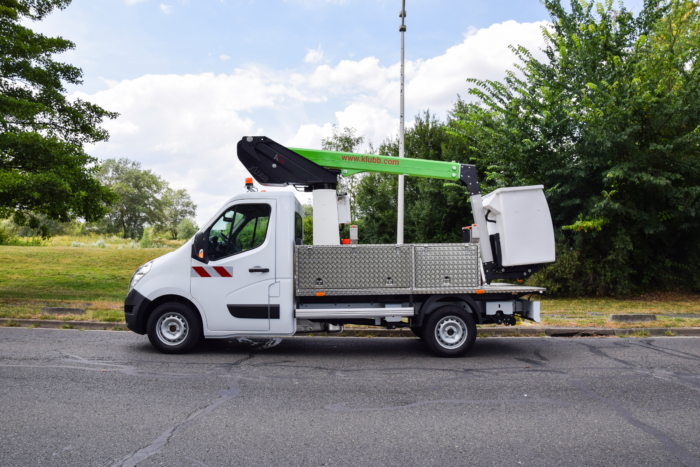

The K26 is a model of a carrycot very appreciated by its size. This new platform is compatible with different brands of carrier, for example: Nissan Capstar, Mercedes Sprinter or Renault Maxity.

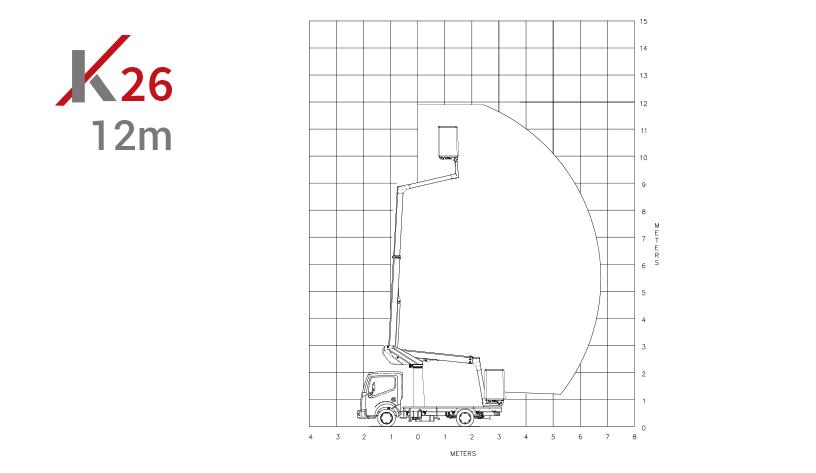

Therefore, this boom lift on chassis truck can reach 11.80m working height and a lateral offset of 6.80m.

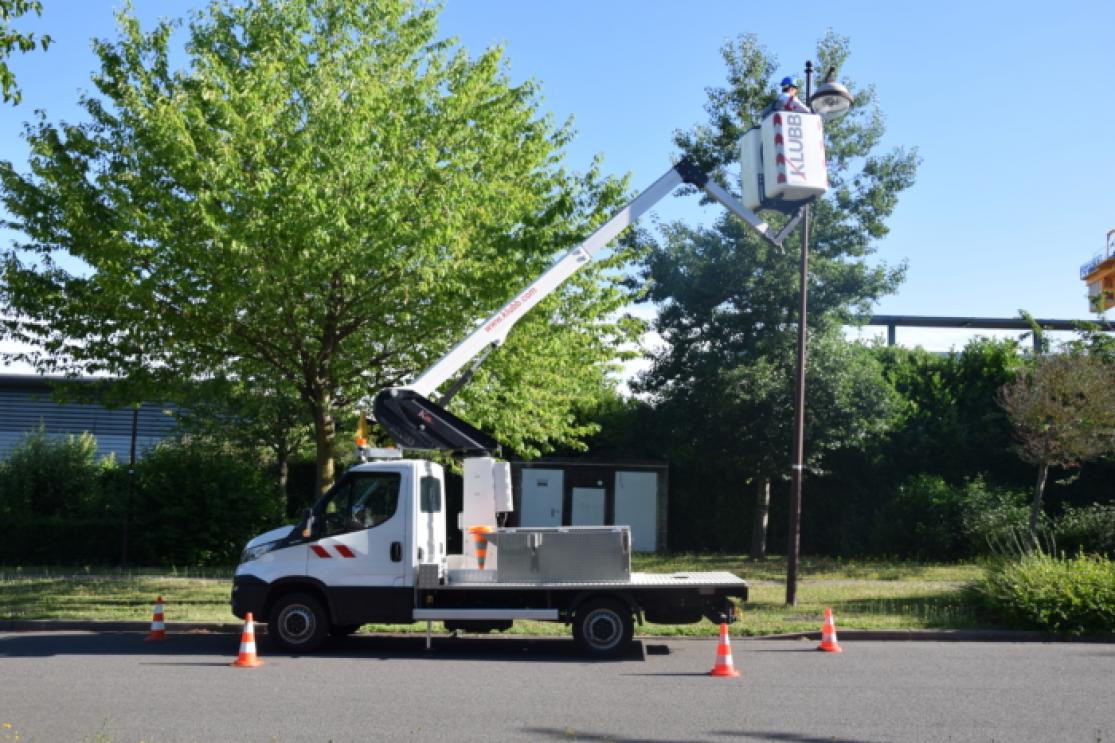

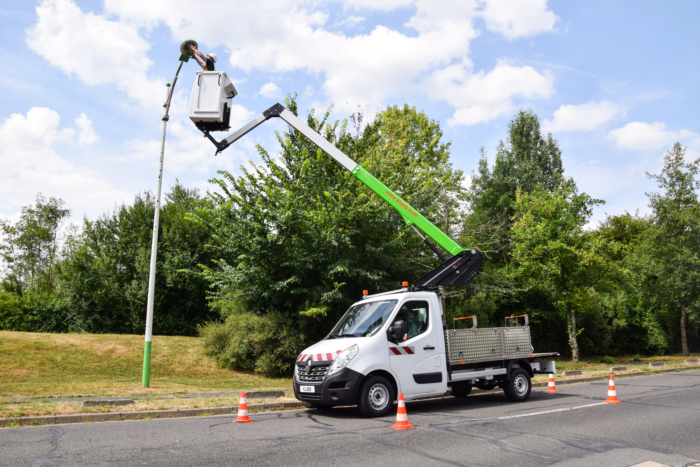

The K26 aerial platform is particularly recommended for advertising installers but also for maintenance applications of public lighting and overhead networks.
However, we have other types of new aerial platform that meet the same needs with higher working heights and offsets.
STANDARD FEATURES
Engine start and stop from basket
Independent emergency electric pump with all the features in the basket for maximum security
Proportional controls
Secure access to the working platform
Hoses and cables are inside the boom structure for maximum protection
Aluminium boom for optimum stability
EXAMPLES OF VEHICLES
RENAULT MAXITY
RENAULT MASTER
NISSAN CABSTAR
IVECO DAILY
MERCEDES SPRINTER
VOLKSWAGEN CRAFTER
FORD TRANSIT
FIAT DUCATO
For vehicle options, please contact us before ordering
Technical Specifications

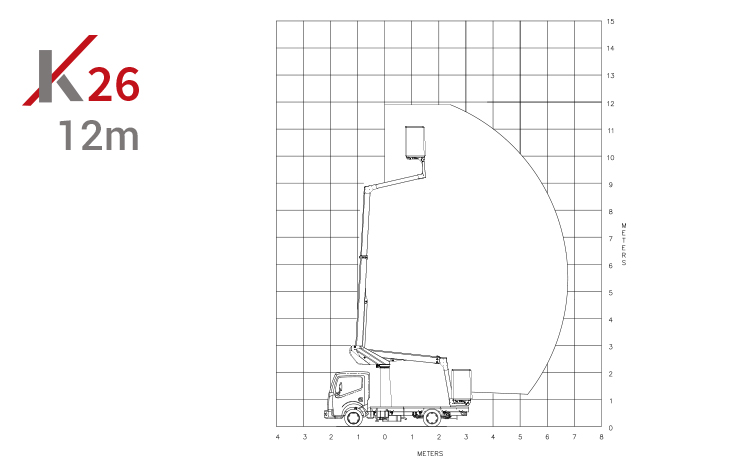

Max. working height : 11.80 m (38'90")
Max. working outreach : 6.80 m (22'40")
Boom rotation : 360°
Max. working load : 120Kg
Max. platform height : 8.30 m (27'30")
Outriggers : no outriggers
Basket size : 86 x 72 x 110 cm
Chassis weight : ≤3.5 T
Arm : Telescopic
Engine : Gas
IPAF category: 1b
Lifting mechanism : hydraulic
Recommended products

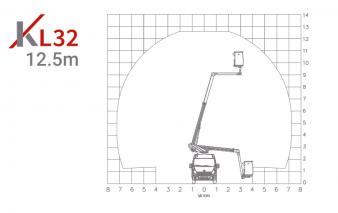

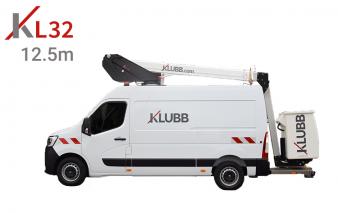

12.50m Telescopic aerial platform on Renault Master KL32
