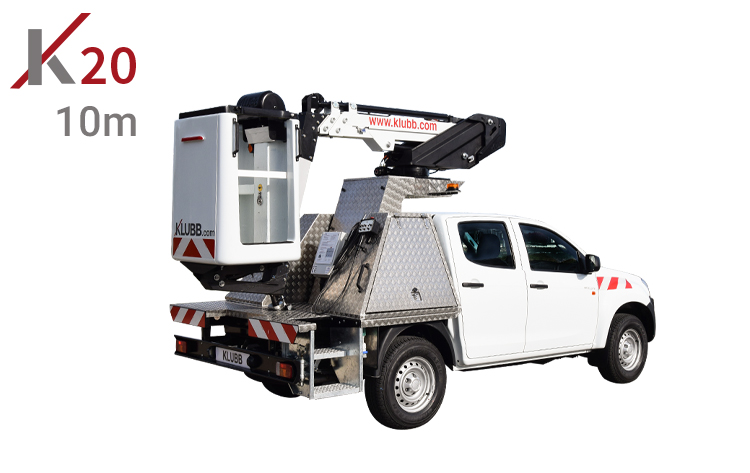

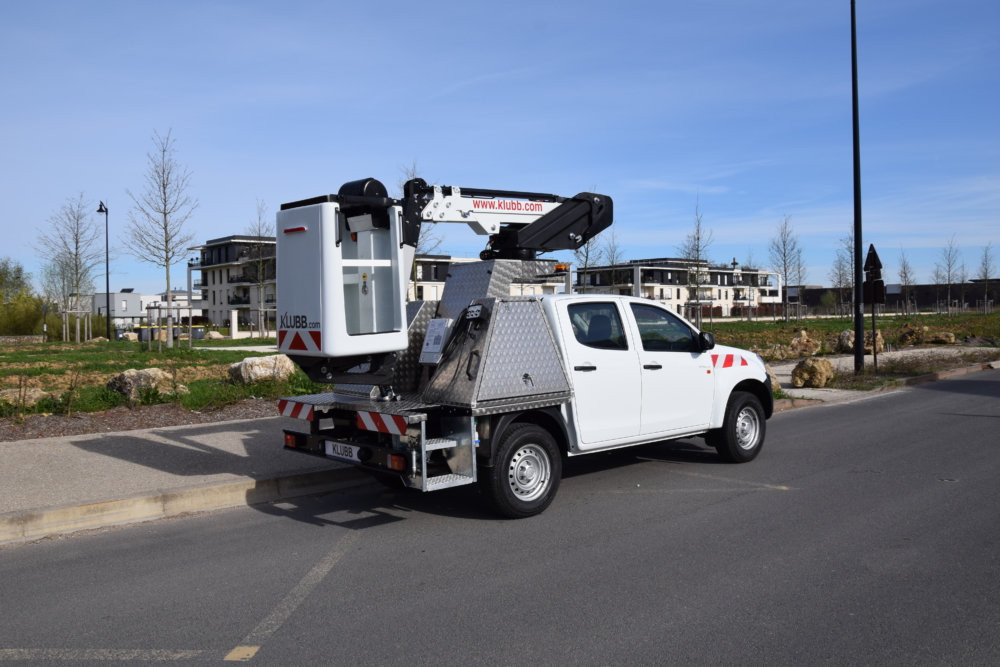

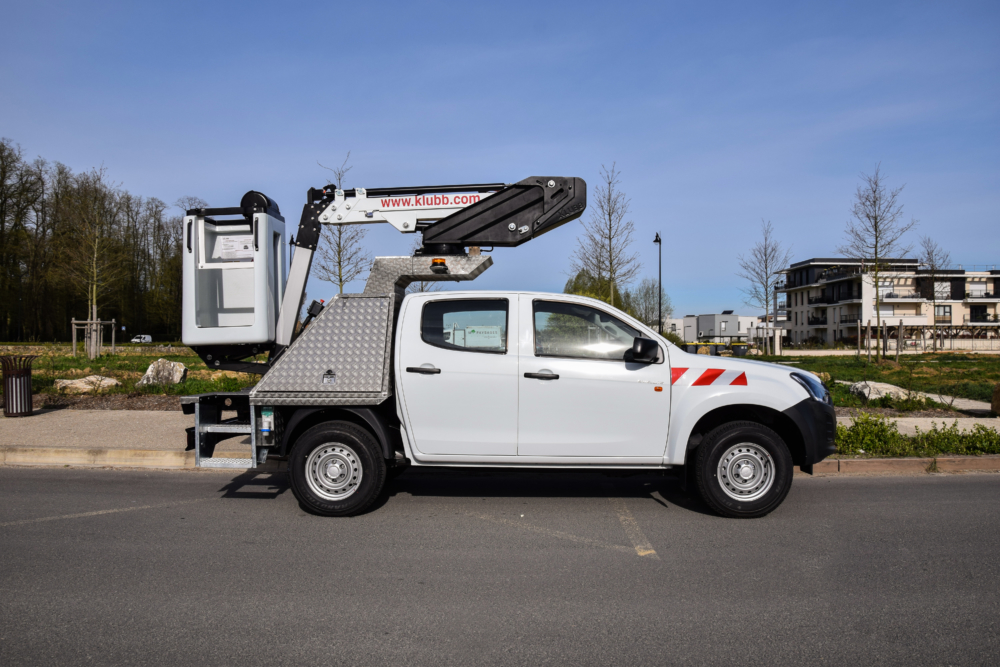

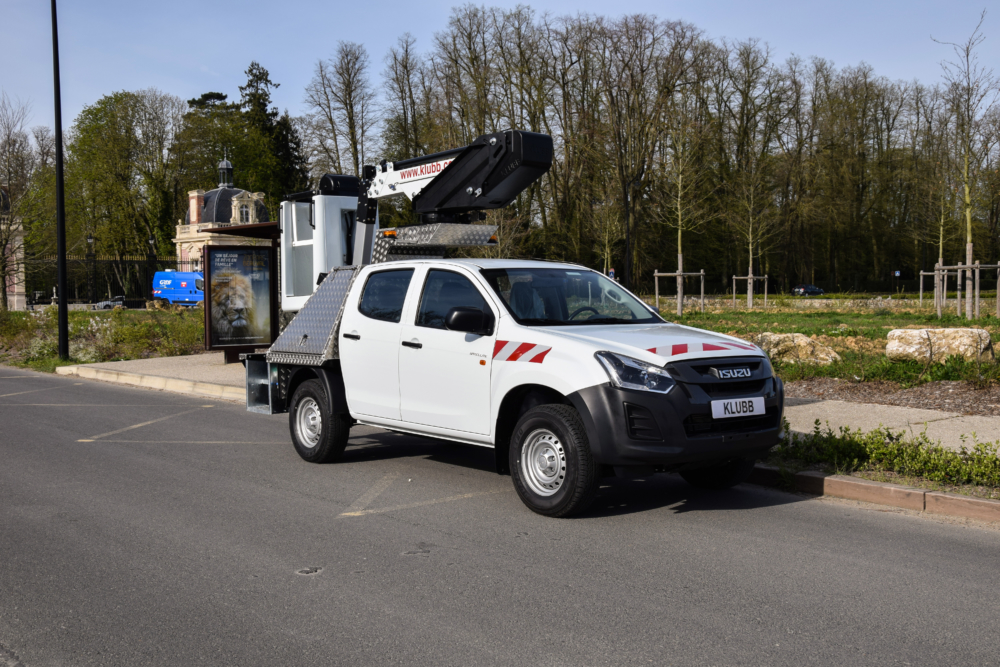

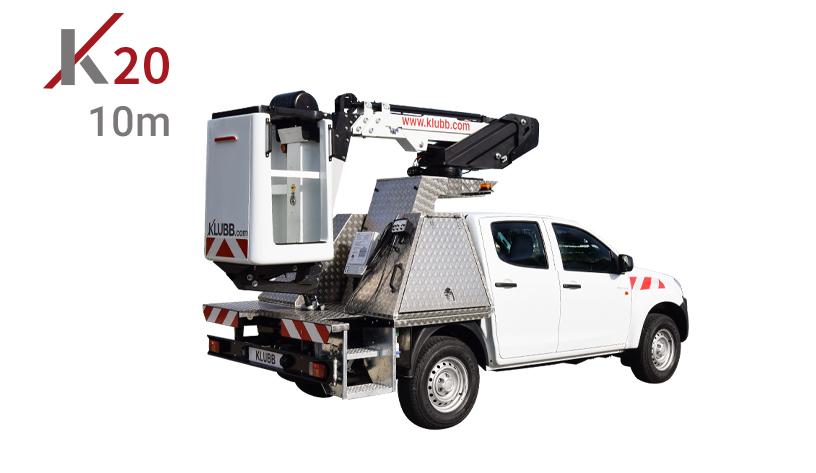

10m Telescopic aerial platform on Isuzu D-Max

K20

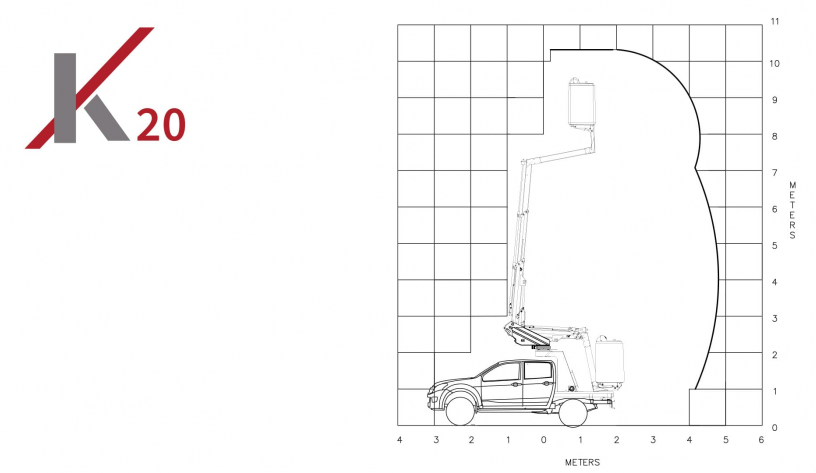

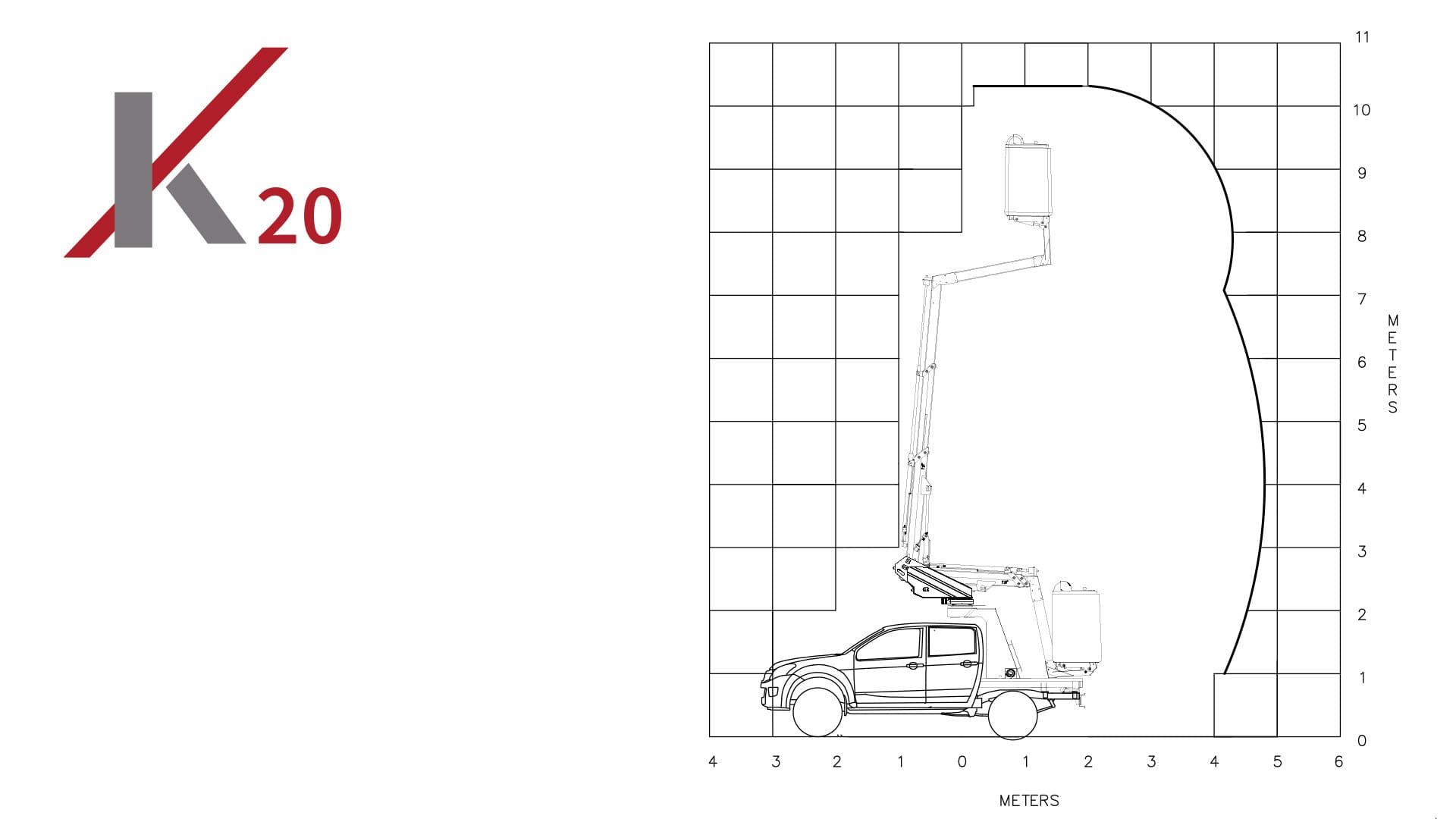

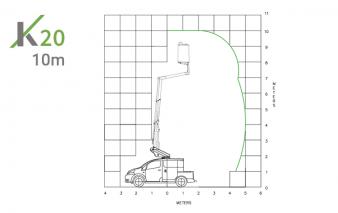

icon working height Working Height : 10.30
icon offset Offset : 4.80
icon rotation Rotation : 420

10 Meters Bucket Truck Chassis (32’10”)

KLUBB Model = K20 D-MAX
Capacity = 120kg, 1 operator

The K20 on a Isuzu D-Max is a machine with remote turret is distinguished by its compactness and has been designed to work in all areas difficult to access (cities, deserts, mountains …).
Moreover, this machine can carry up to 5 people.

This machine have a working height of 10.30m and an offset of more than 4m.
It’s a perfect tool for the maintenance of public lighting, the installation of video surveillance systems, the maintenance of traffic lights and telecommunications work.

Its aluminum telescope ensures excellent stability. The conveyor chain and extension cylinders are protected in the arm for added durability. In addition, its fully hydraulic operation makes it easy to maintain anywhere in the world.

We have other types of new aerial platform that meet the same needs with however higher work heights and offsets.

STANDARD FEATURES

Engine start and stop from basket
Independent emergency electric pump with all the features in the basket for maximum security
Proportional controls
Secure access to the working platform
Hoses and cables are inside the boom structure for maximum protection
Aluminium boom for optimum stability

EXAMPLES OF VEHICLES

ISUZU D-MAX

Technical Specifications

Max. working height : 10.30 m (33'10")
Max. working outreach : 4.80 m (15'90")
Boom rotation : 420°
Max. working load : 120Kg
Max. platform height : 8.30 m (27'30")
Outriggers : no outriggers
Basket size : 86 x 72 x 110 cm
Chassis weight : ≤3.5 T
Arm : Telescopic
Engine : Gas
IPAF category: 1b
Lifting mechanism : hydraulic

Recommended products

icon eco friendly

"green pack"

The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
