Working Height : 20
Offset : 8.20
Rotation : 360

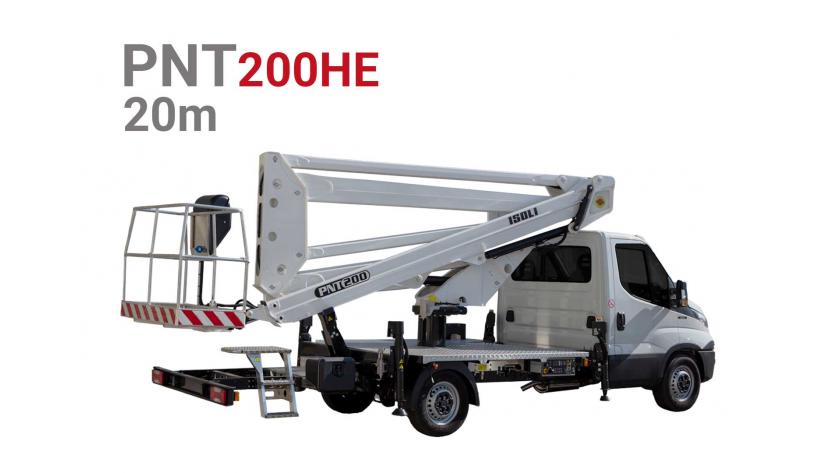

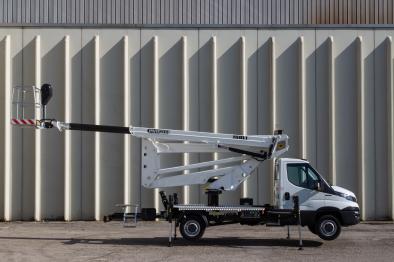

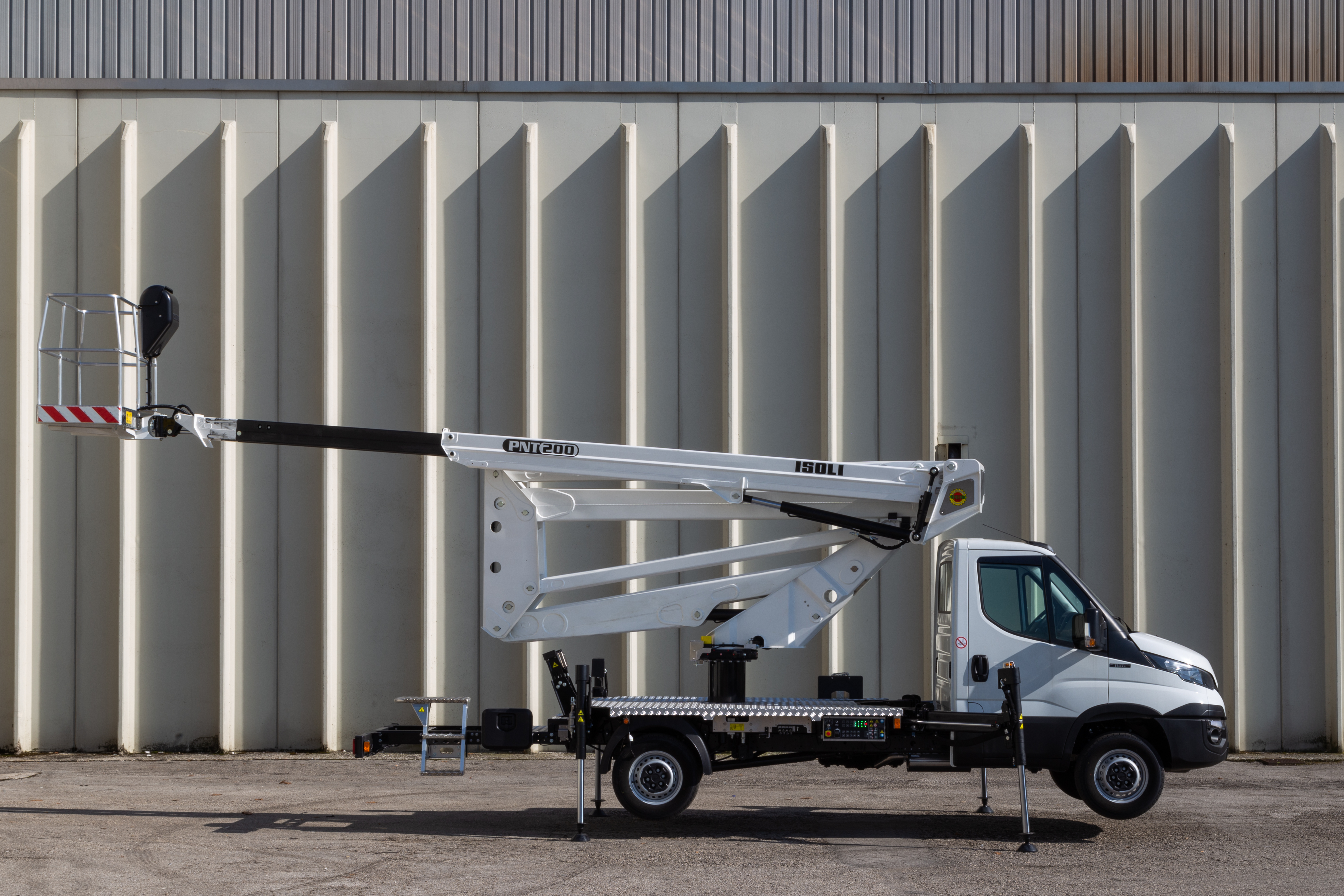

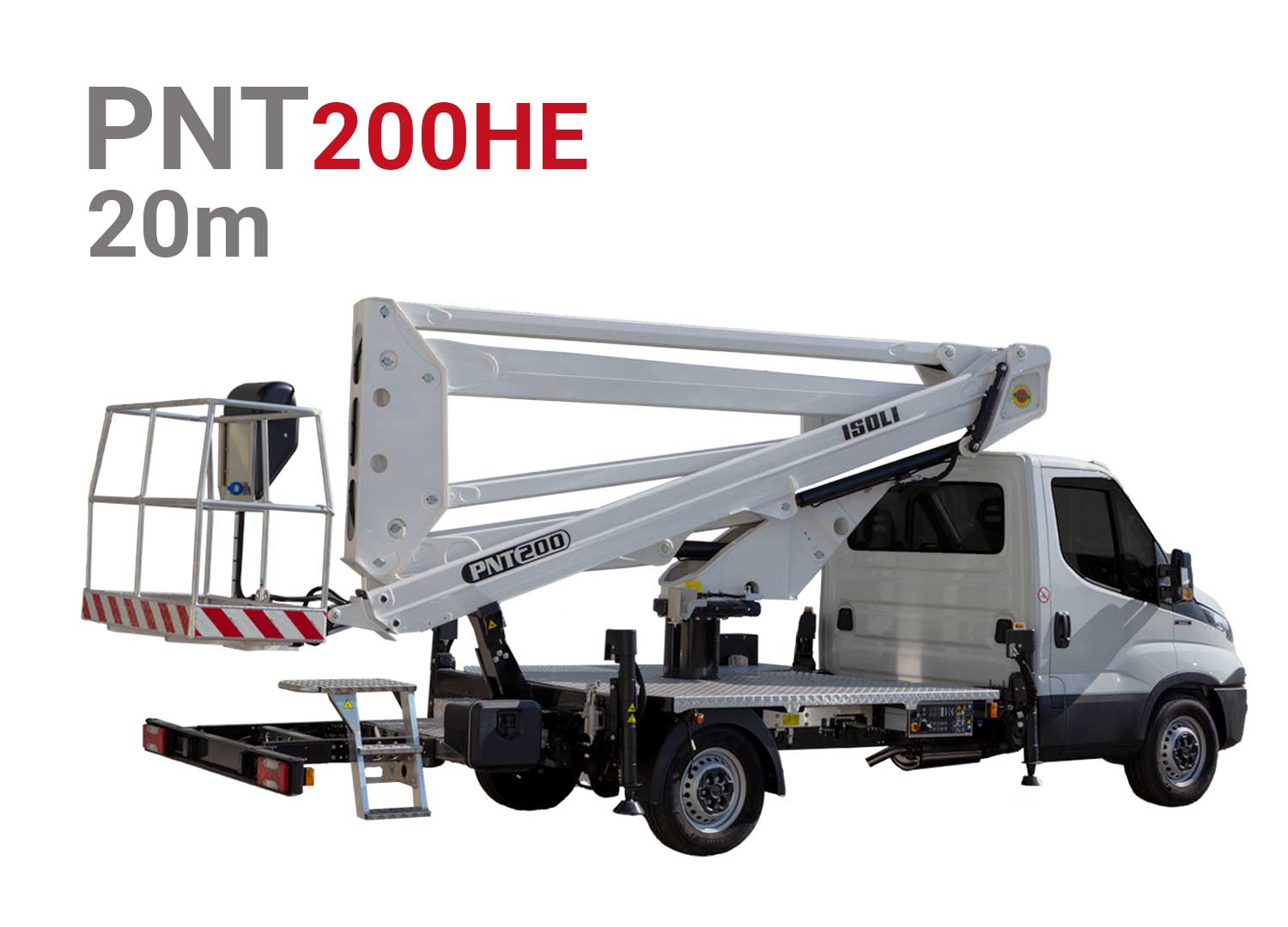

20 Meters Bucket Truck Chassis (65'6")
KLUBB Model = PNT200 HECapacity = 230kg
The PNT200 HE stands out for its exceptional features: a working height of 20m and an offset of 8.20m. KLUBB’s new range of aerial platforms on chassis are designed for the users right down to the smallest technical detail. We are able to offer customers high performance, cost-efficient aerial platforms that deliver new advances in performance, safety and total cost of ownership.
This chassis-mounted aerial work platform has 4 extendable outriggers, favoring a better grip on the ground and making it possible to modulate congestion on the road.
You can add options such as the signaling kit including gyro and triflash, a drop-side, chests or high-level protection.
STANDARD FEATURES
- Engine stop and start in basket
- Hour counter
- Emergency circuit on manual pump
- Proportional controls on all movements
- Secure access to the work platform
- Conveyor chain for hoses inside the mast of the mast for optimum proctection
- Rigid PVC protection of the controls at the top station
- 220 V circuit
- Four H-shaped stabilizers, two of which are extendable at the front
EXAMPLES OF VEHICLES
Iveco Daily (Empt. 3750)
Isuzu M21 (Empt. 3360)
TECHNICAL SPECIFICATIONS

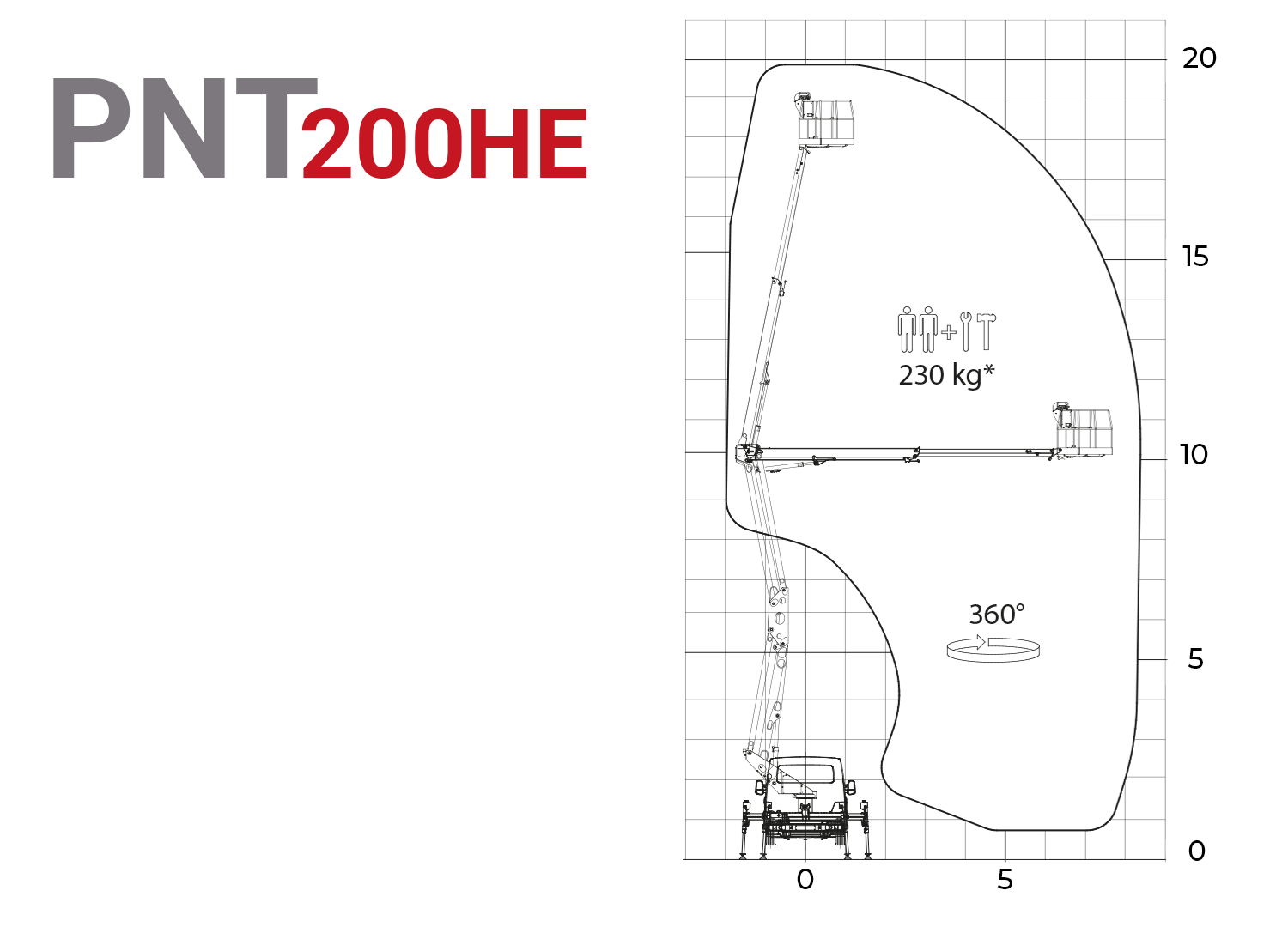

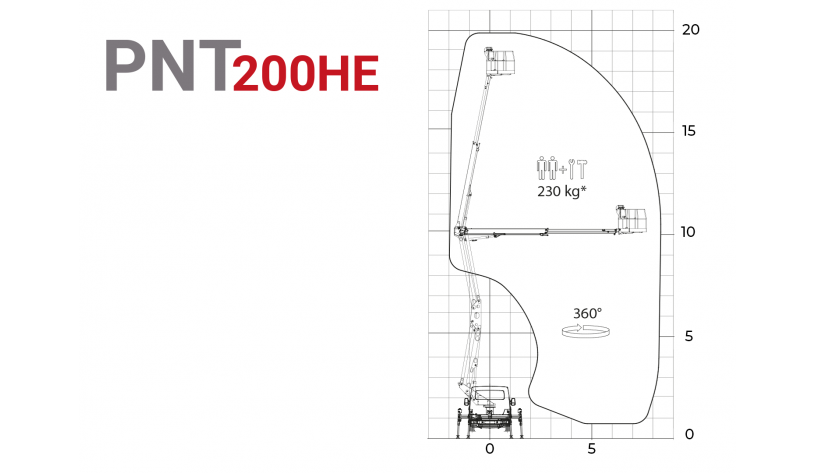

Max. working height : 20m (65'6")
Max. working outreach : 8.20 m (26'9")
Boom rotation : 360°
Max. working load : 230 kg
Outriggers : Four H outriggers
Basket size : 125 x 75 x 110 cm
Chassis weight : ≤ 3.5 T
Arm : Articulated
Engine : Gas
IPAF category: 1b
Lifting mechanism : hydraulic
"green pack"
The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
