Working Height : 10.50
Offset : 5.00
Rotation : 360

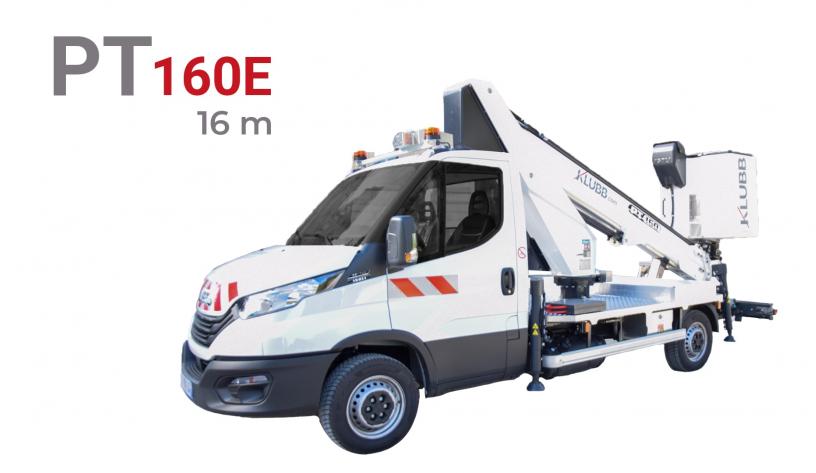

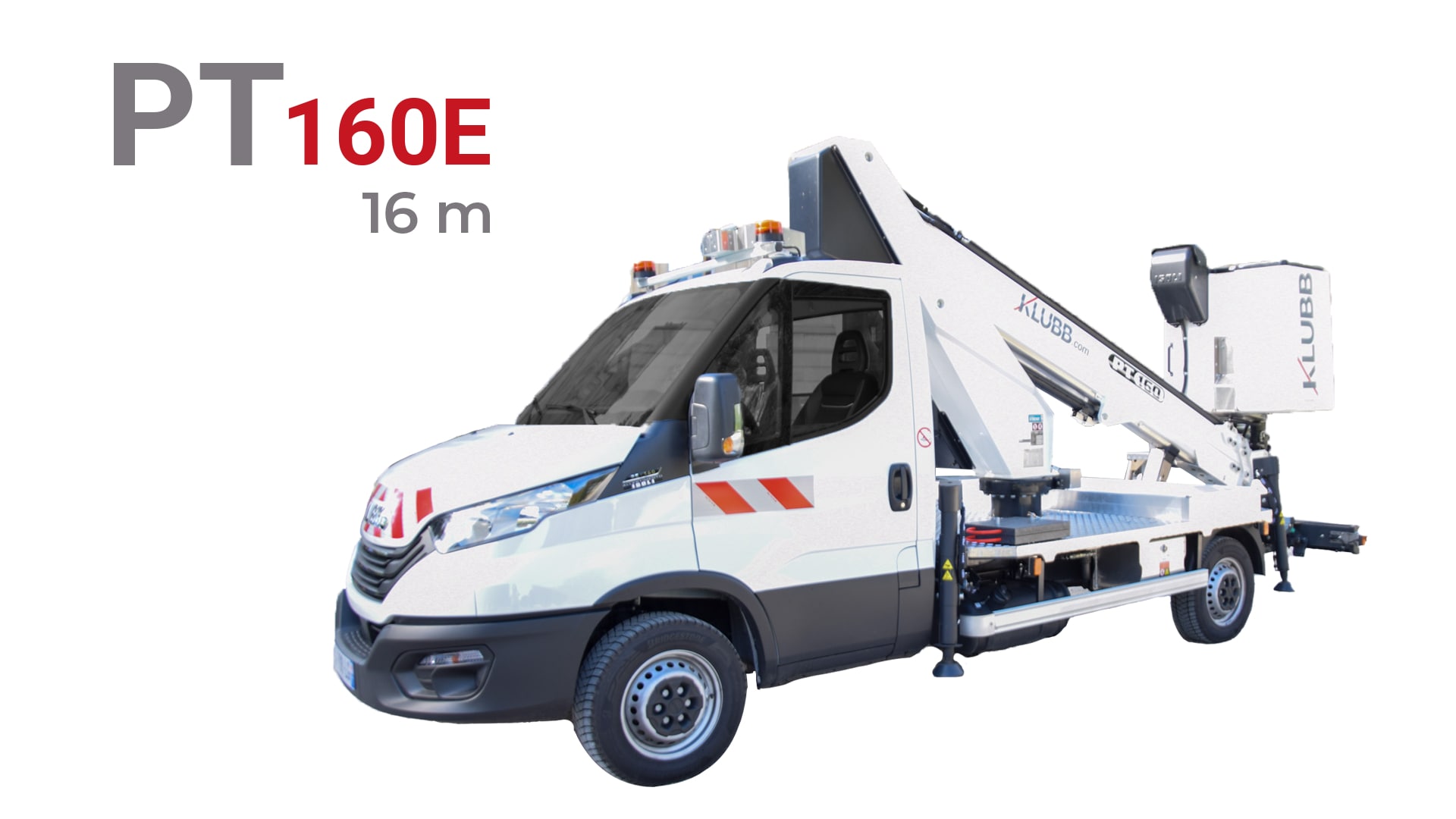

KLUBB Model = PT160E

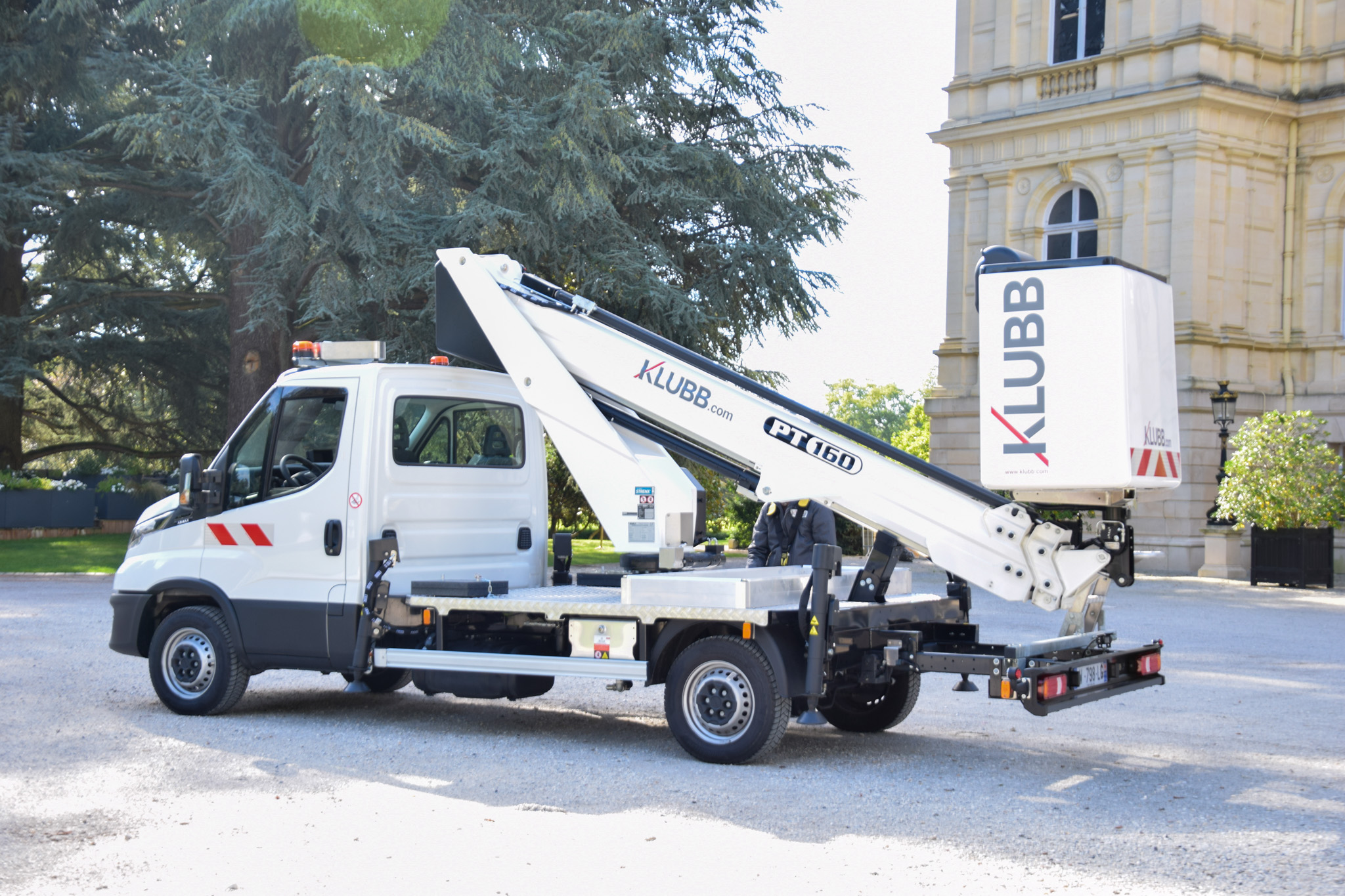

The PT160E stands out for its exceptional features: a working height of 16m and an offset of 10.50m. KLUBB’s new range of aerial platforms on chassis are designed for the users right down to the smallest technical detail. We are able to offer customers high performance, cost-efficient aerial platforms that deliver new advances in performance, safety and total cost of ownership.

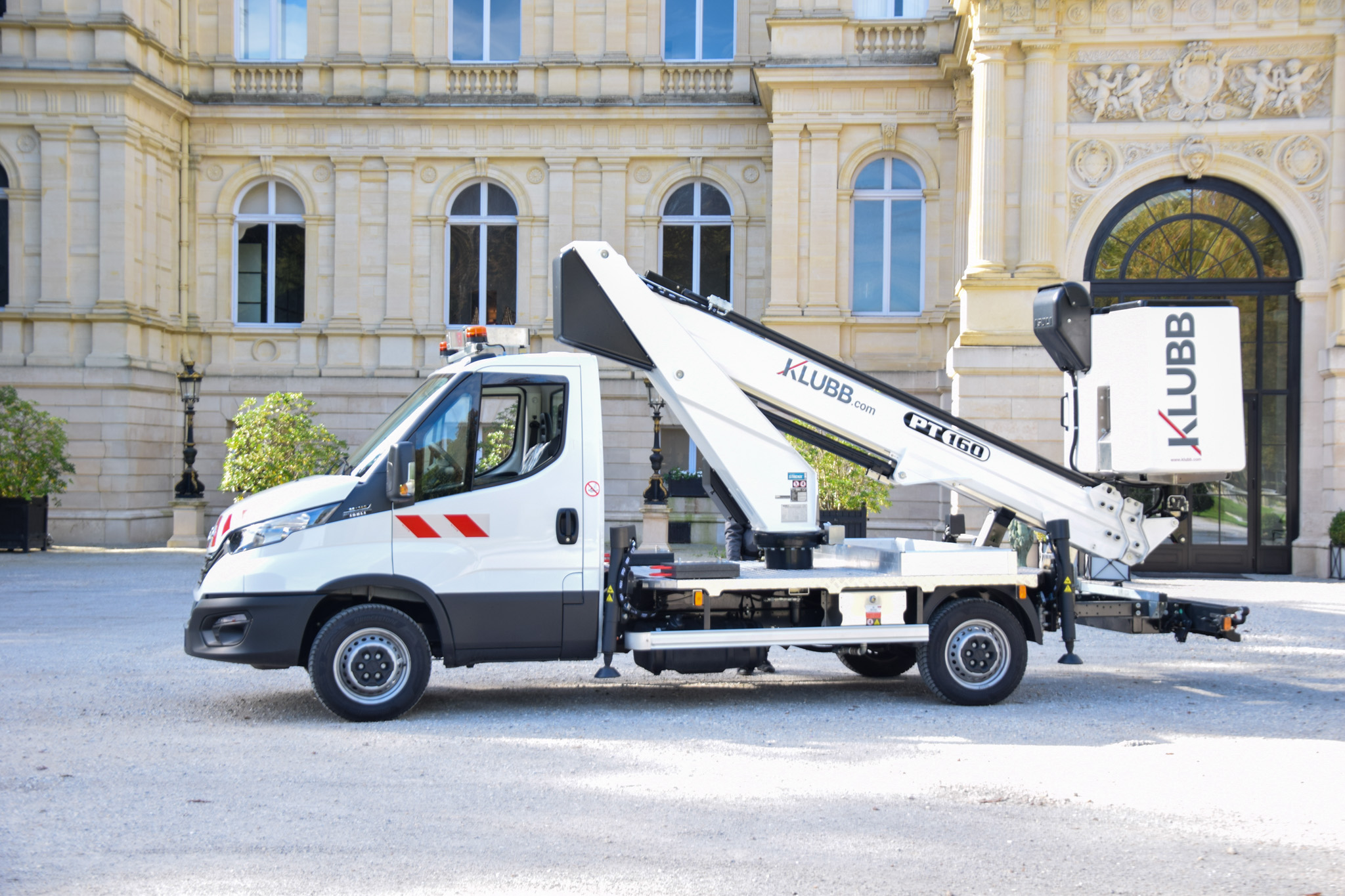

This chassis-mounted aerial work platform has 4 outriggers, favoring a better grip on the ground and making it possible to modulate congestion on the road.
You can add options such as the signaling kit including gyro and triflash, a drop-side, chests or high-level protection. This aerial platform on the chassis will be perfectly compatible with different brands of chassis like Iveco Daily or Isuzu M21.
STANDARD FEATURES
- Engine stop and start in basket
- Assisted turret ansd basket centering
- Emergency circuit on manual pump
- Proportional controls on all movements
- Secure access to the work platform
- Conveyor chain for hoses inside the mast of the mast for optimum protection

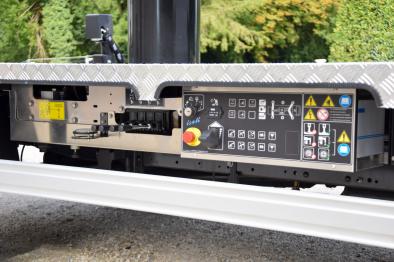

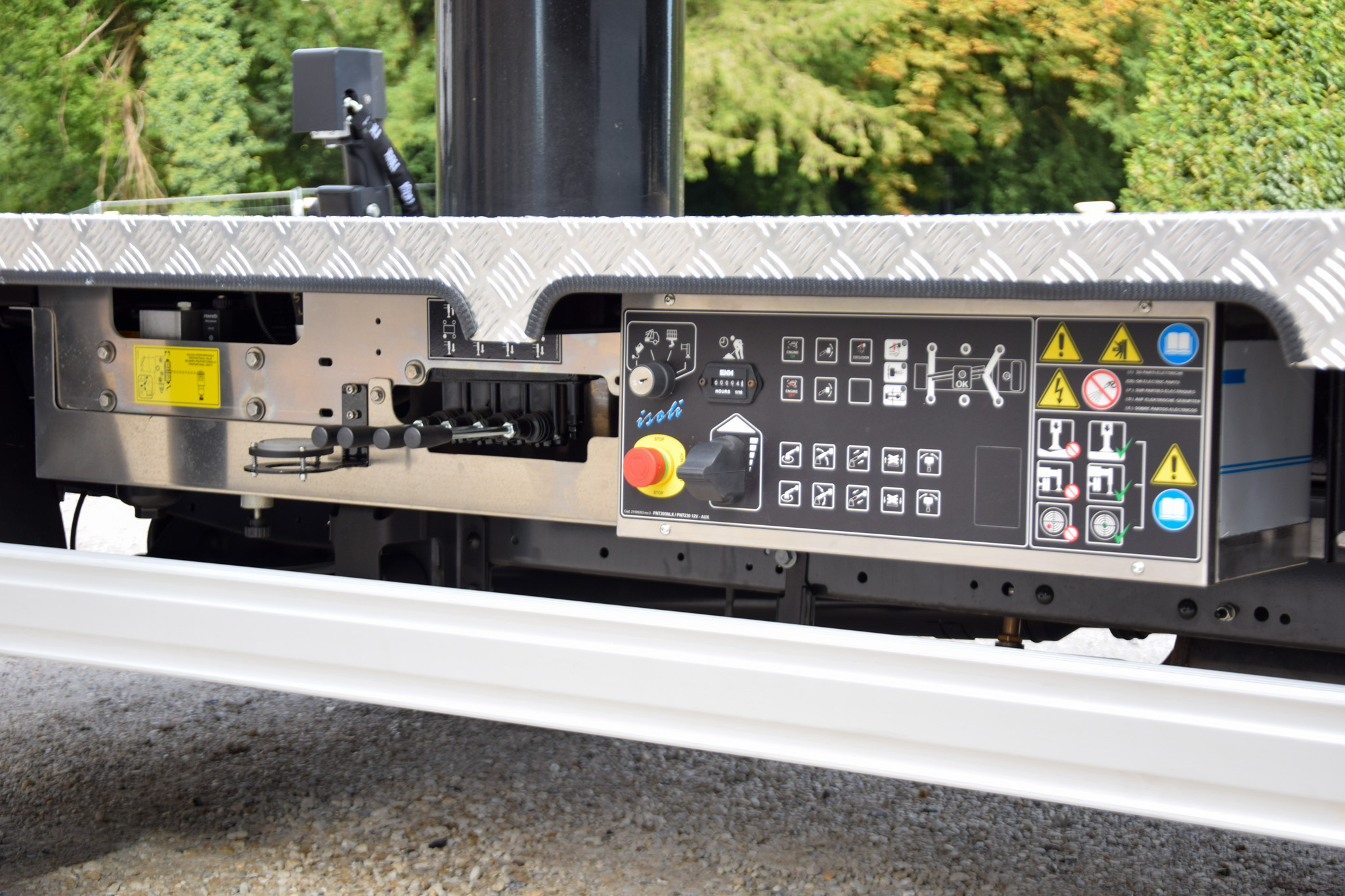

- Rigid PVC protection of the controls at the stop station
- 220V circuit in basket
EXAMPLES OF VEHICLES
- Iveco Daily (Wb. 3750)
- Isuzu M21 (Wb.3360)
TECHNICAL SPECIFICATIONS

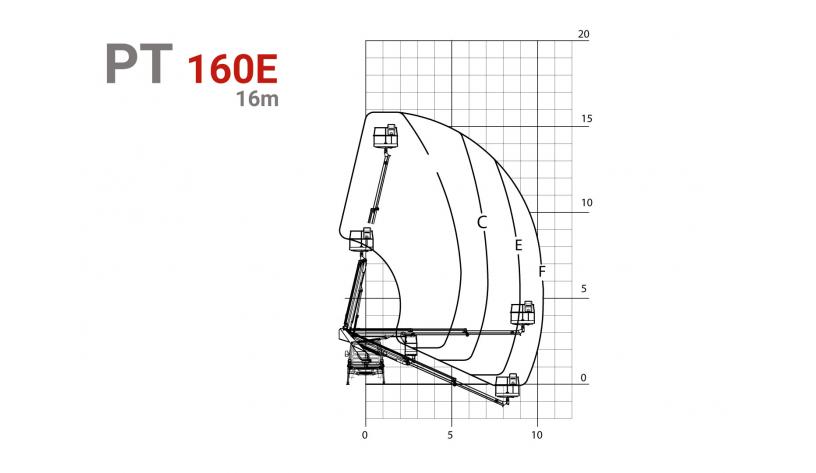

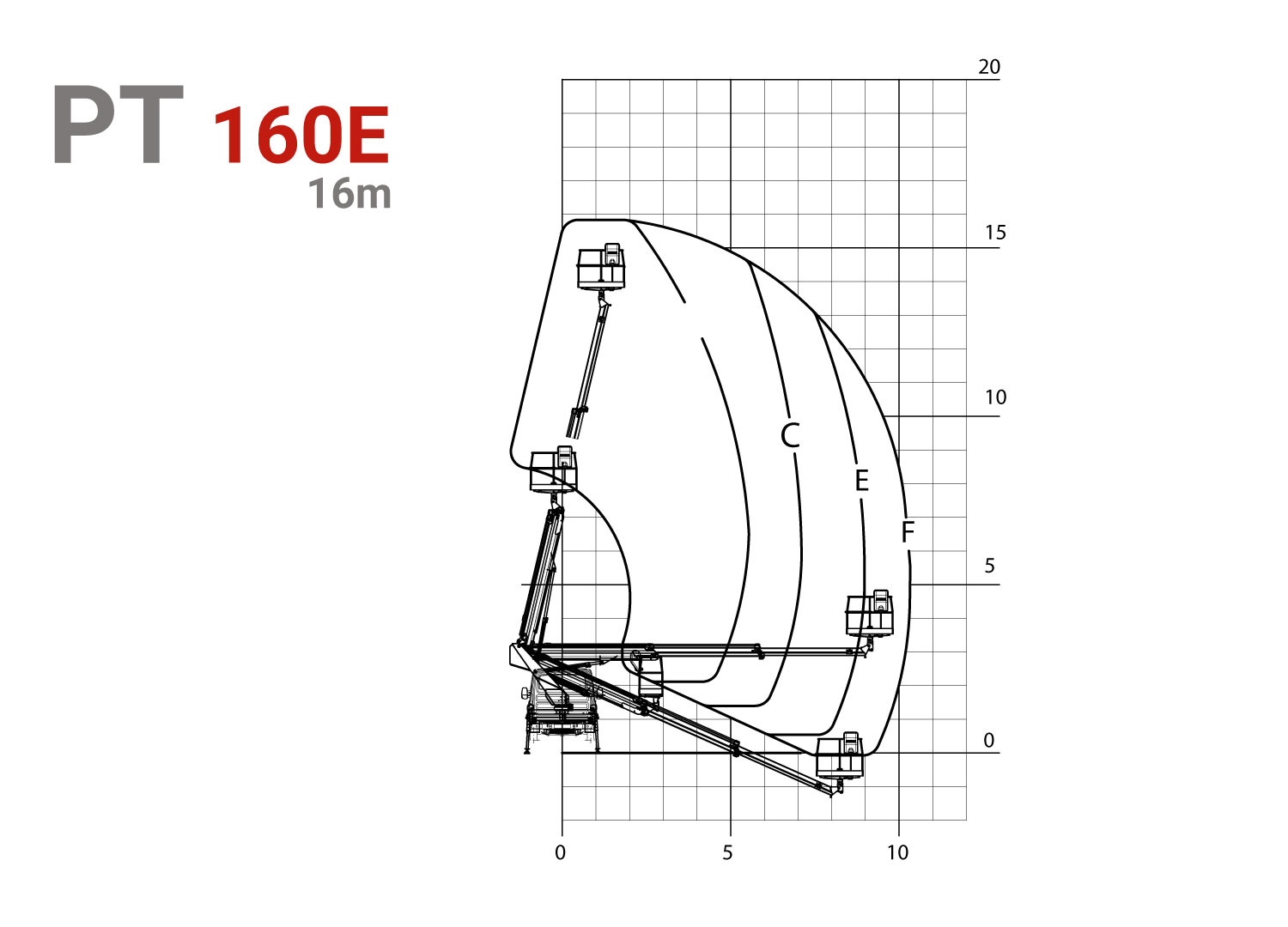

Max. working height : 16m (52'6")
Max. working outreach : 10.50 m (28'10")
Boom rotation : 360°
Max. working load : 300 kg
Outriggers : Four H outriggers
Basket size : 125 x 75 x 110 cm
Chassis weight : ≤ 3.5 T
Arm : Telescopic
Engine : Gas
IPAF category: 1b
Lifting mechanism : hydraulic
Recommended products

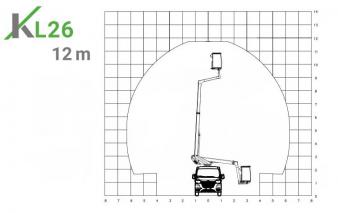

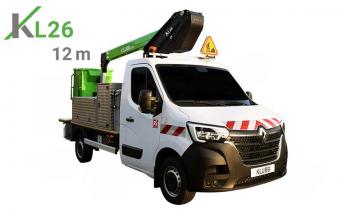

10.70m Bamboo aerial platform on Renault Master L2 KL26
