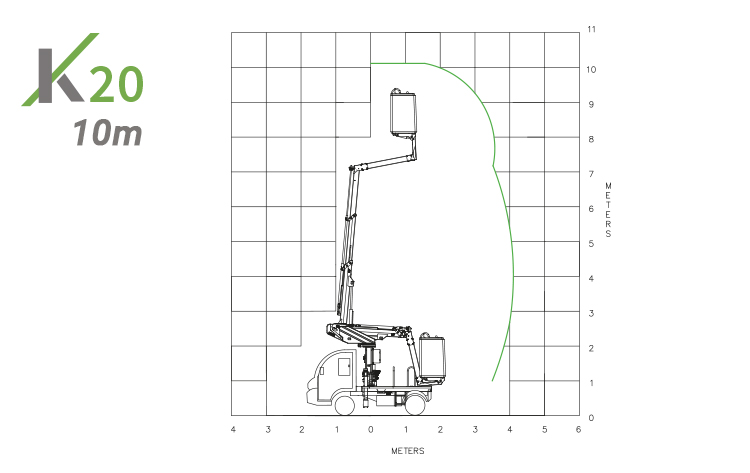

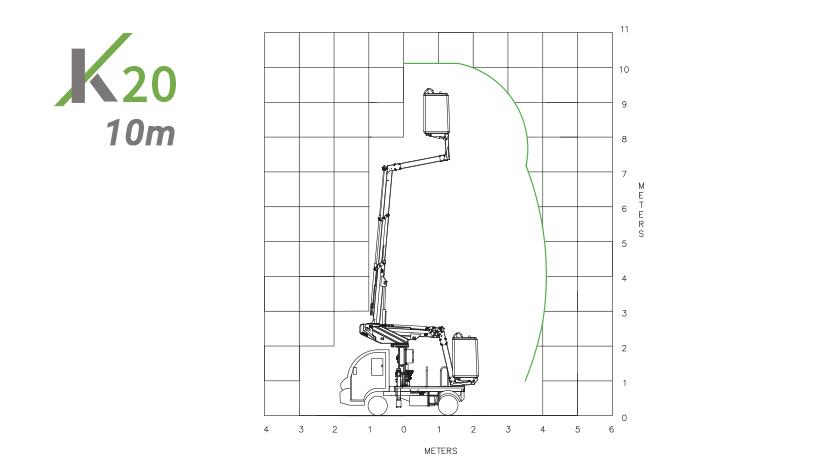

Working Height : 10.10
Offset : 4.10
Rotation : 420
10 Meters Bucket Truck Chassis (32’10”)

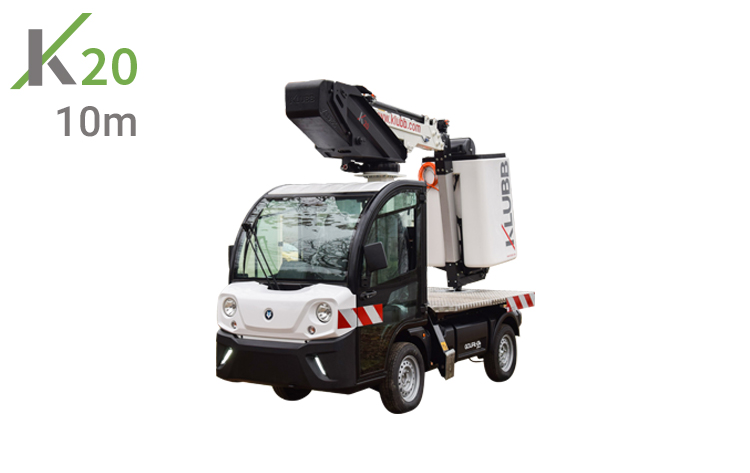

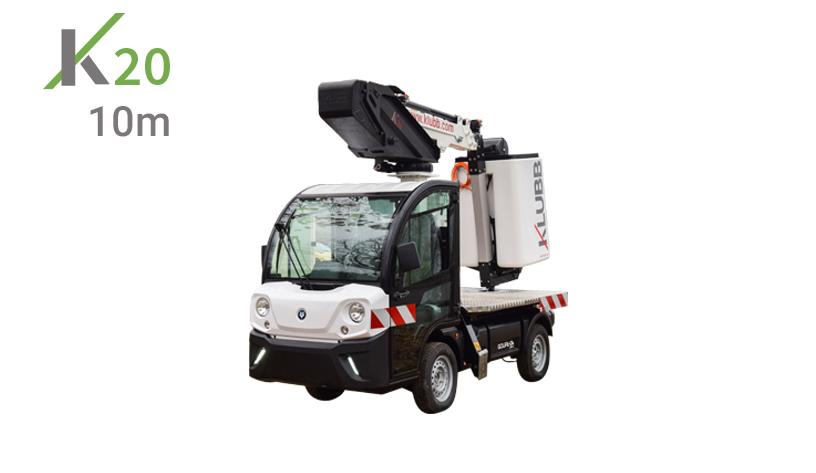

KLUBB Model = K20 Goupil G4Capacity = 120kg, 1 operator, 2 outriggers

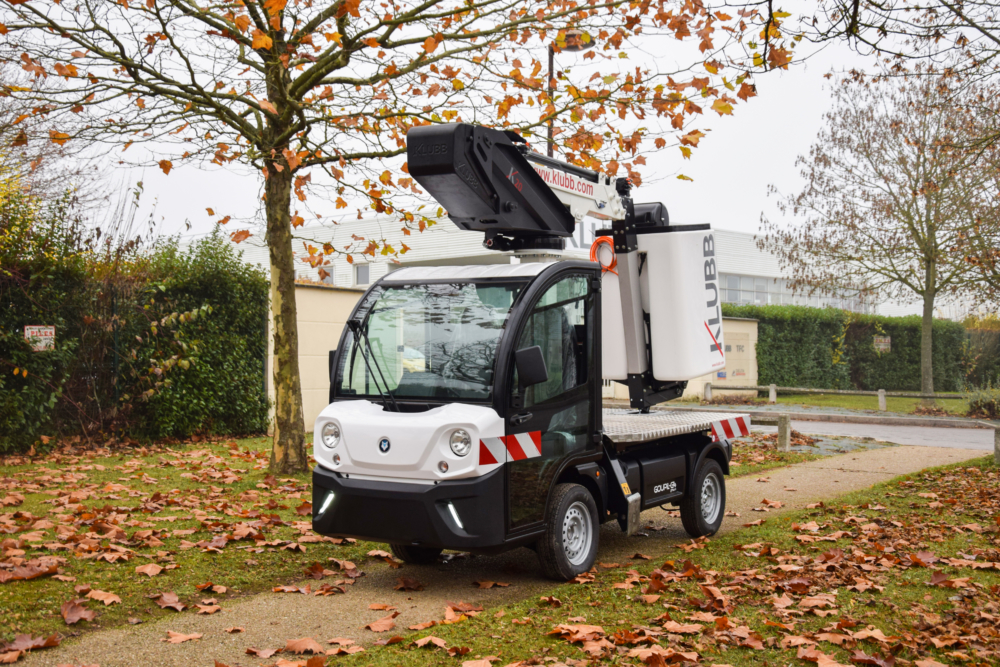

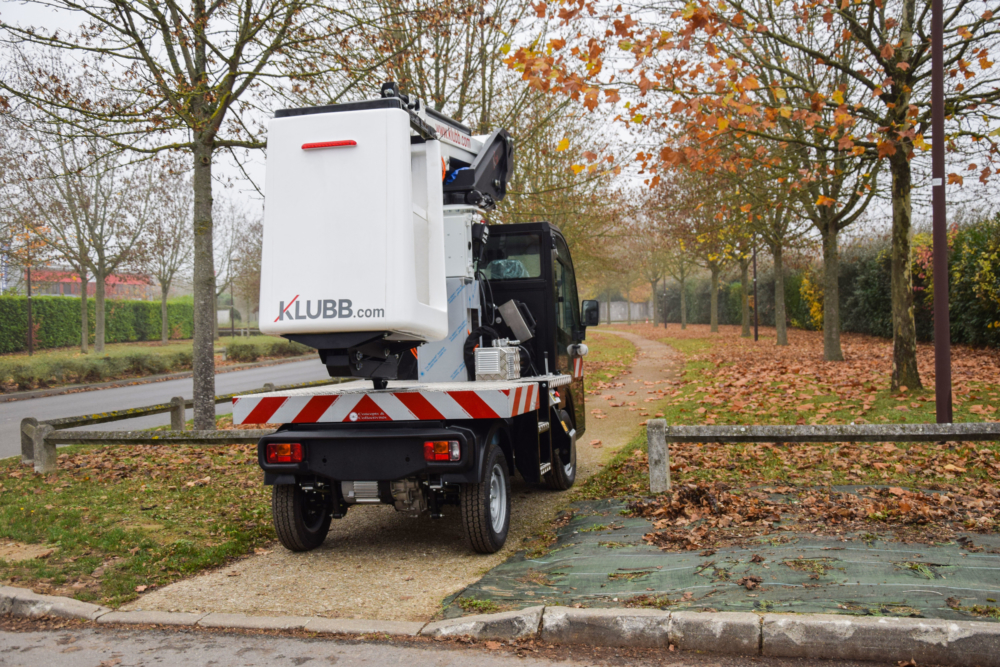

The K20 Goupil G4 is a 100% electric lift and respectful of its environment.
It is mounted on a electric vehicle. Ecological and very compact, this elevator allows operation without noise and without harmful emissions.

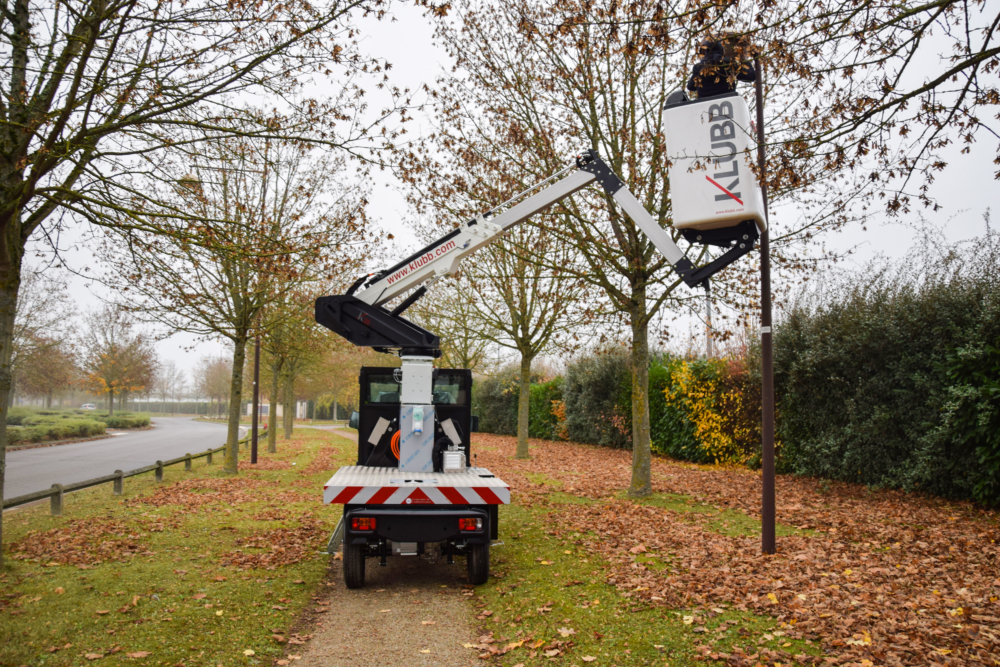

This electric boom lift on a chassis can reach a working height of 10.10m and its lateral offset is 4.10m. Thanks to a width of 1.5m and its 70km range on the road you can easily work on sidewalks, narrow streets and other narrow spaces. This product is particularly suitable for all cleaning companies, public lighting or maintenance of green spaces and of course for local authorities engaged in an eco-responsible approach.
The K20 on a Goupil G4 is the most compact telescopic aerial platform in our chassis lift range.
This model of aerial platform can be equipped with various options such as a circuit of water or air in the basket, of boards or vaults for the storage of tools.
EXAMPLES OF VEHICLES
GOUPIL-G4 (70 km of driving range)
For vehicle options, please contact us before ordering
STANDARD FEATURES
Independent emergency electric pump with all the features in the basket for maximum security
Proportional controls
Secure access to the working platform
Hoses and cables are inside the boom structure for maximum protection
Aluminium boom for optimum stability
Technical Specifications
Max. working height : 10.10 m (33'10")
Max. working outreach : 4.10 m (13'40")
Boom rotation : 420°
Max. working load : 120Kg
Max. platform height : 8.10 m (26'50")
Outriggers : 2 H-Frame outriggers
Basket size : 75 x 80 x 110 cm
Chassis weight : ≤3.5 T
Arm : Telescopic
Engine : Gas
IPAF category: 1b
Lifting mechanism : hydraulic
Recommended products

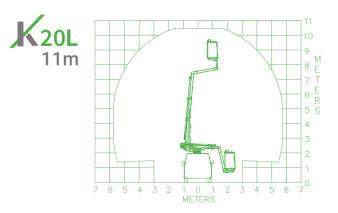

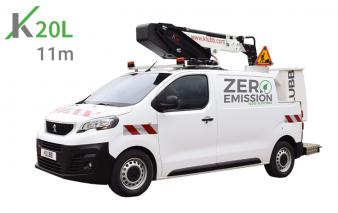

10.50m Telescopic aerial platform on cutaway Peugeot E-Expert Electric K20L
10.50 Meters Van Mounted Boom Lift (39’37”)

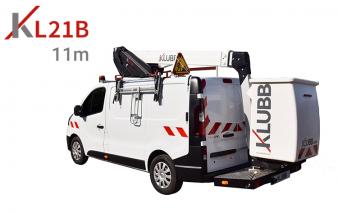

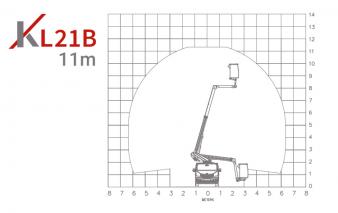

11.40m Telescopic aerial platform on Renault Trafic KL21B
