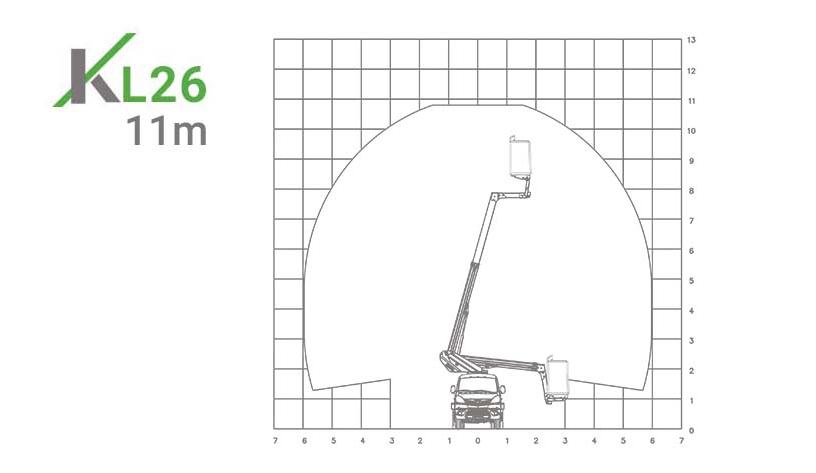

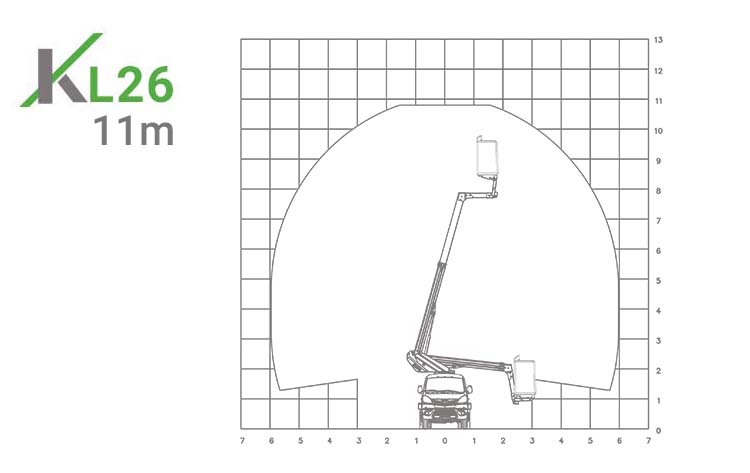

Working Height : 10.70
Offset : 6.00
Rotation : 360
10.70 Meters Bucket Truck Chassis (32’80”)

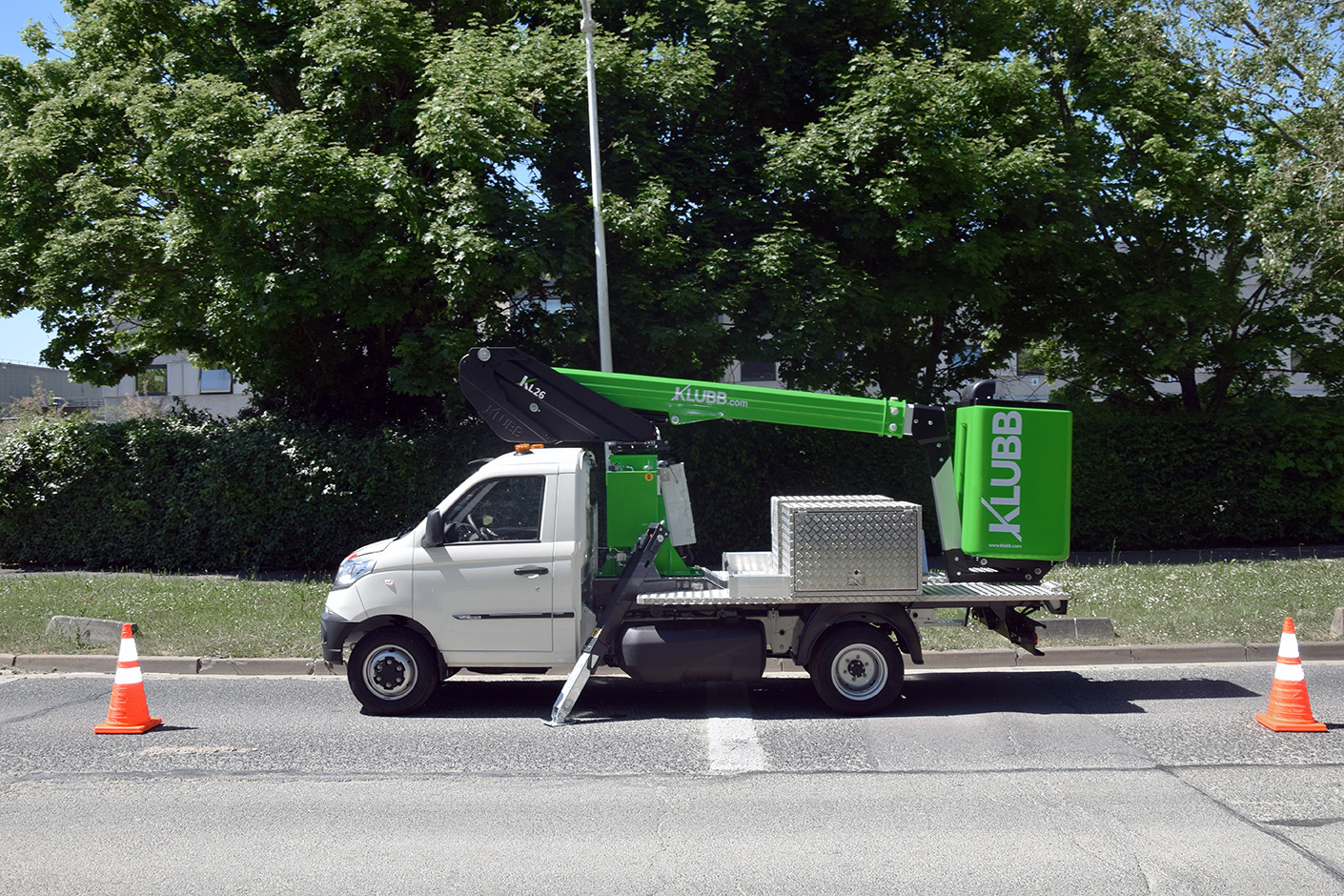

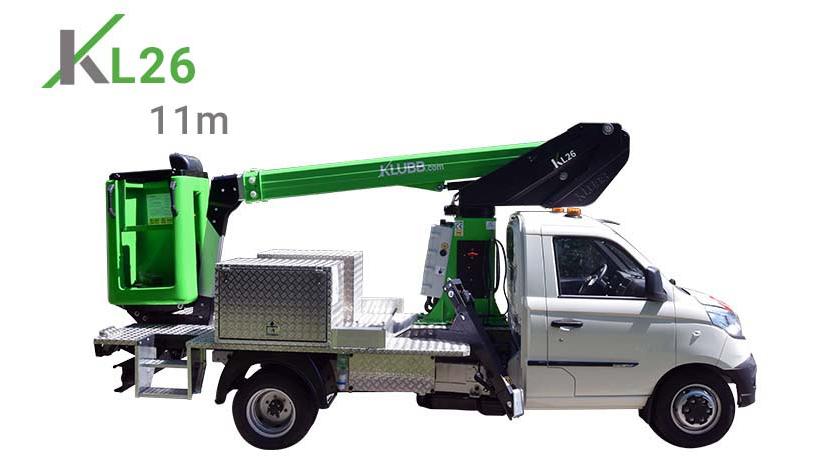

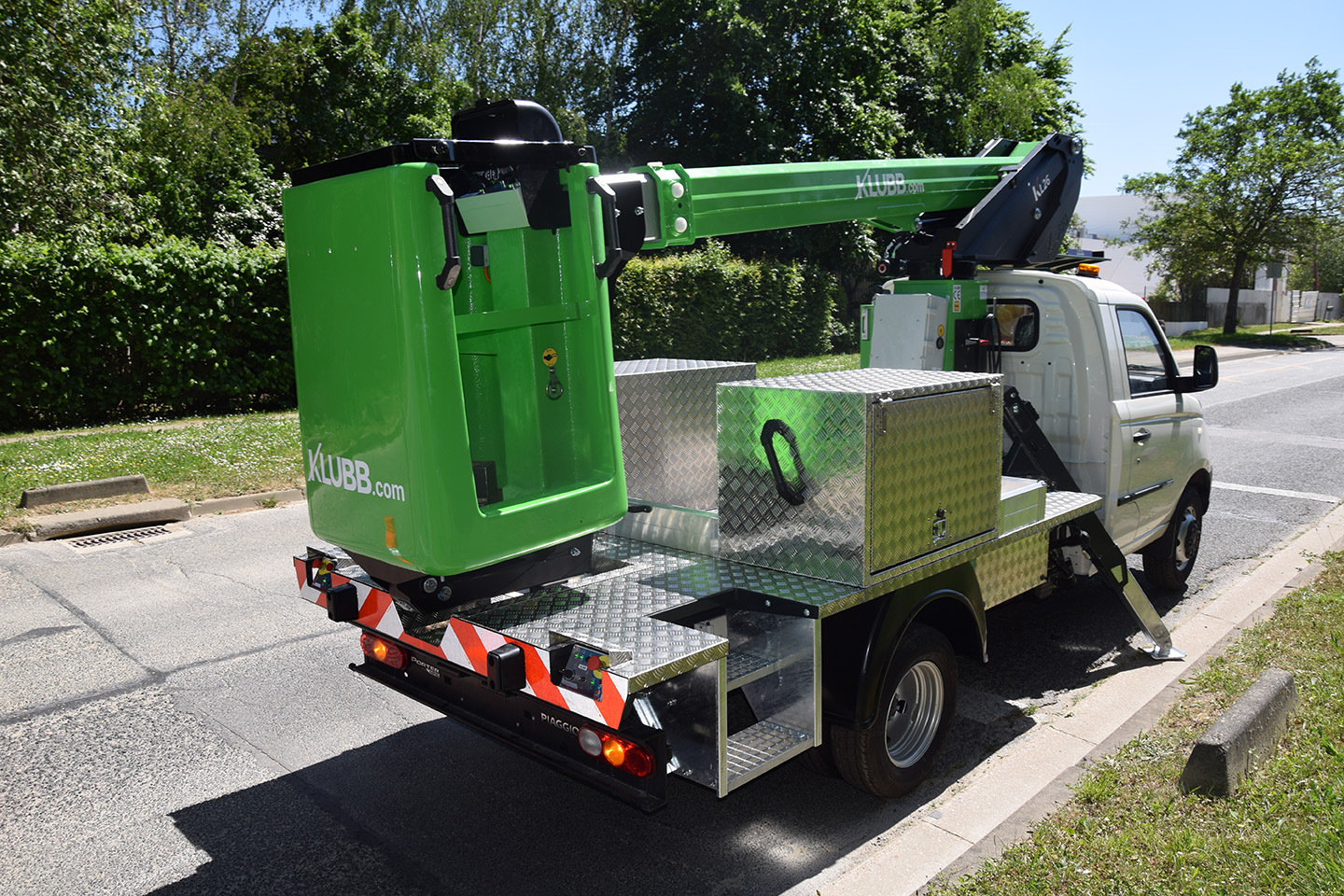

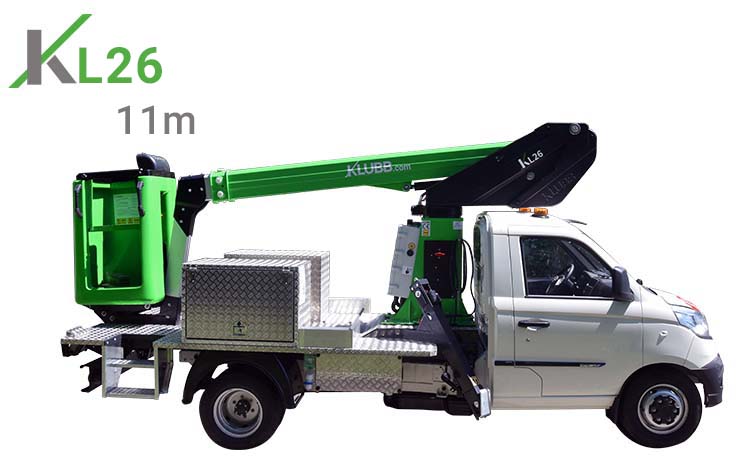

KLUBB Model = KL26 NP6The KL26 telescopic aerial platform mounted on a Piaggio Porter NP6 is one of our latest dual fuel model. This telescopic boom lift mounted on a chassis can work up to 10.70m high with an offset of 6 m.
For work at height, the KL26 is a model of aerial platform very appreciated by its size. Highly appreciated for its mobility and compact size, this platform model allows you to work in an environmentally responsible way. Developed on the technological basis of the Euro 6 Multitech petrol engine, the two dual fuel versions (petrol/LPG and petrol/NGV), rely on the power of a 1500 cm³, 4-cylinder engine.

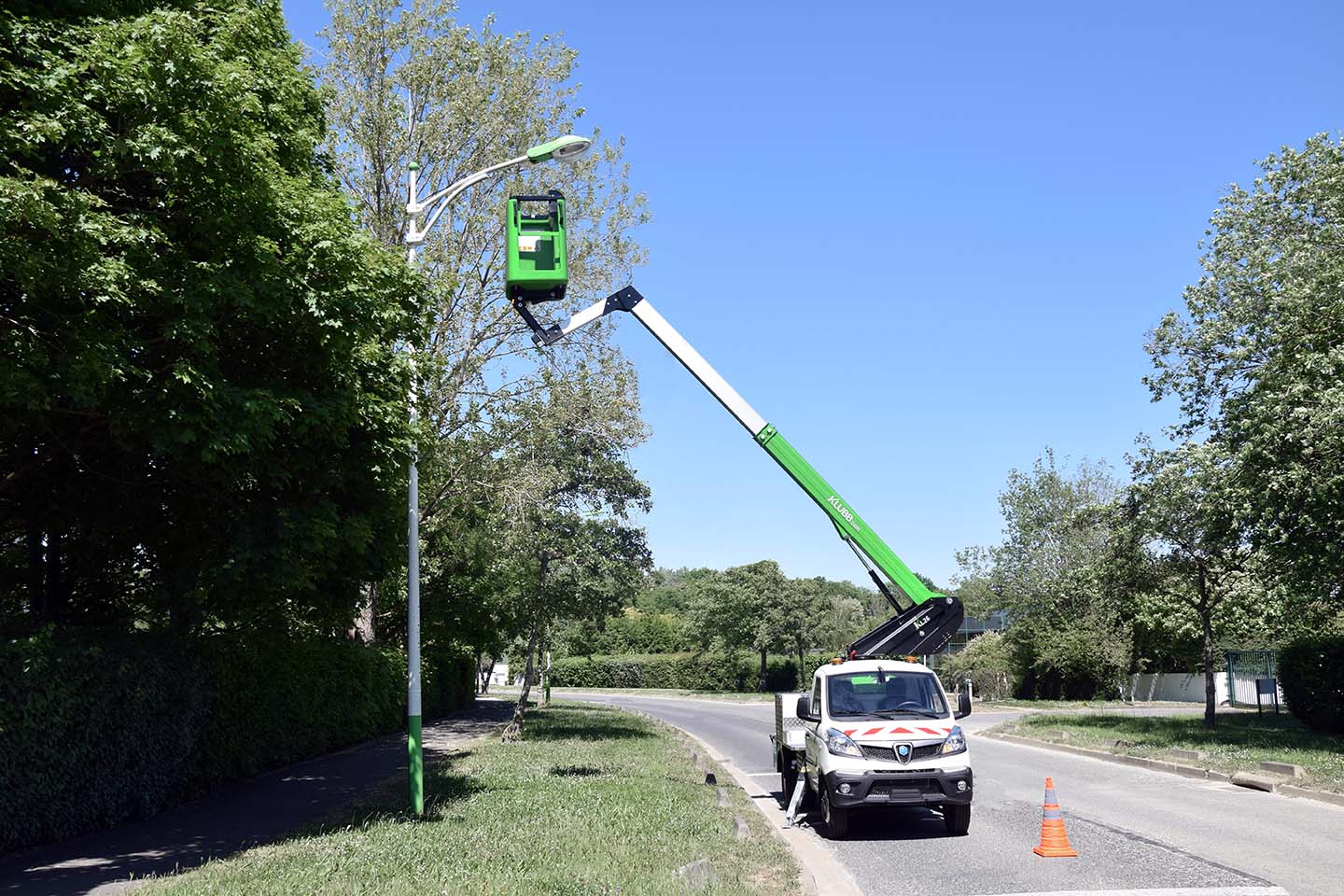

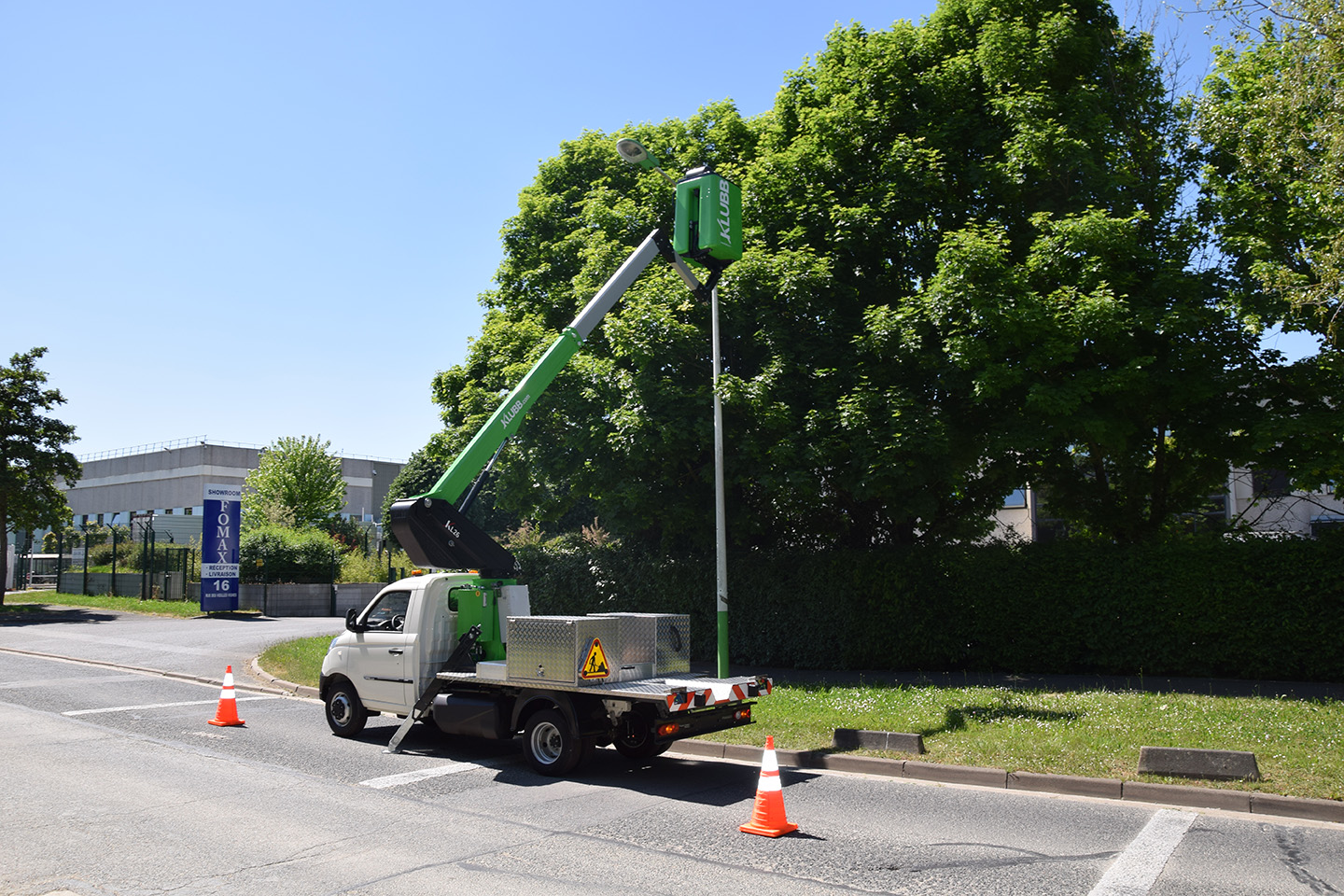

The K26 aerial platform is particularly recommended for advertising installers but also for maintenance applications of public lighting and overhead networks.
STANDARD FEATURES
Independent emergency manual pump with all the features in the basket for maximum security
Proportional controls
Secure access to the working platform
Hoses and cables are inside the boom structure for maximum protection
Aluminium boom for optimum stability
OPTIONS
Signalling devices
220V electric socket in basket
Water / air circuit in basket
Fully opening insulated basket
Side chests
Side panels
Por more platform options, please contact us before ordering
Technical Specifications
Max. working height : 10.70 m (32’80”)
Max. working outreach : 6.00 m (19’68”)
Boom rotation : 360°
Max. working load : 200Kg
Max. platform height : 8.70 m (28'54")
Outriggers : 2 A-Frame outriggers
Basket size : 125 x 75 x 110 cm
Chassis weight : ≤3.5 T
Arm : Telescopic
Engine : Electric
IPAF category: 1b
Lifting mechanism : hydraulic
Recommended products

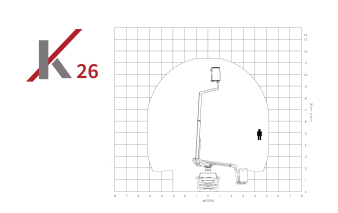

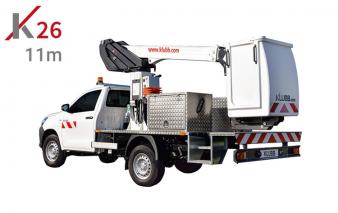

11m Telescopic aerial platform on Toyota Hilux KL26
11 Meters Bucket Truck Chassis (36’09”)

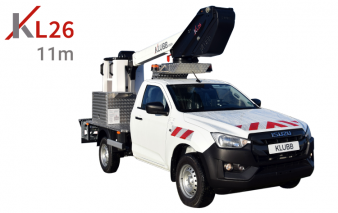

10.50m Telescopic aerial platform on Isuzu Dmax KL26
10.50 Meters Bucket Truck Chassis (36’09”)

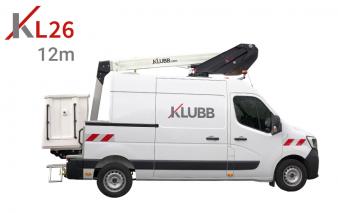

11.80m Telescopic aerial platform on Renault Master KL26
