Working Height : 14.00
Offset : 7.50
Rotation : 360

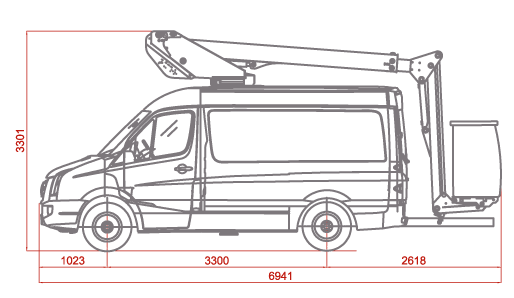

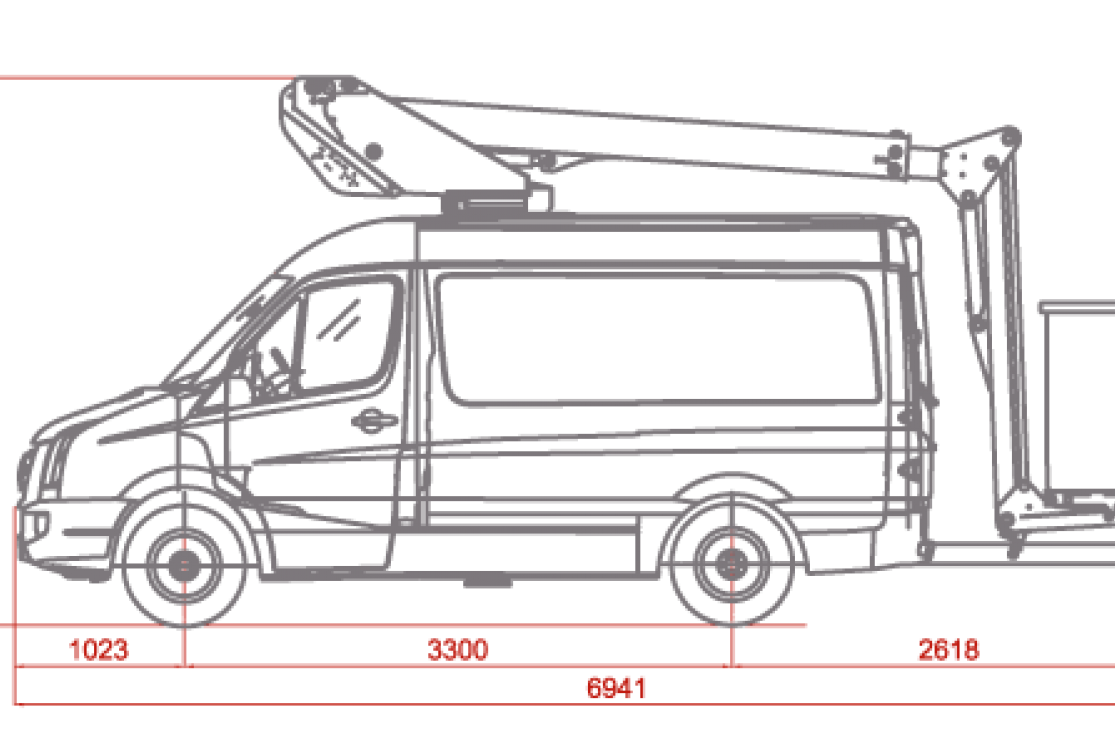

14 Meters Van Mounted Boom Lift (45’11”)

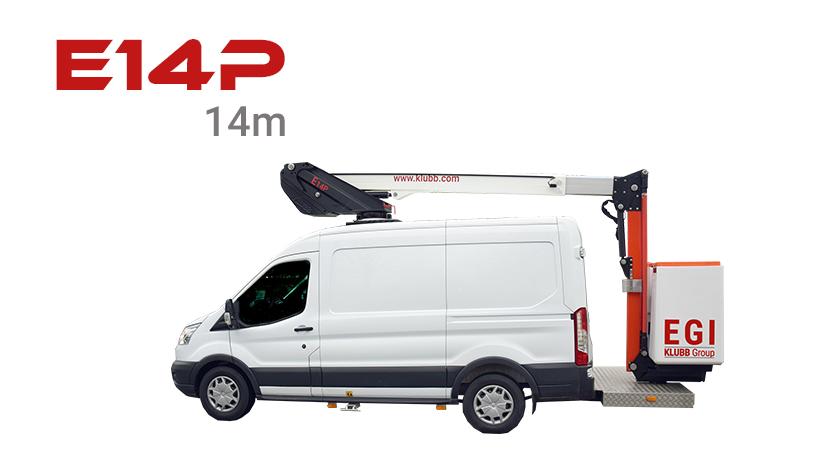

KLUBB Model = E14PCapacity = 200kg, 2 operators, with outriggers
Standard Features
Engine start and stop from basket
Independent emergency electric pump with all the features in the basket for maximum security
Secure access to the working platform
Hoses and cables are inside the boom structure for maximum protection
Insulated Boom for distance working 46 kV cat.C ANSI 92.2
2 Control Command Systems: 1 at Basket + 1 remote
Technical Specifications

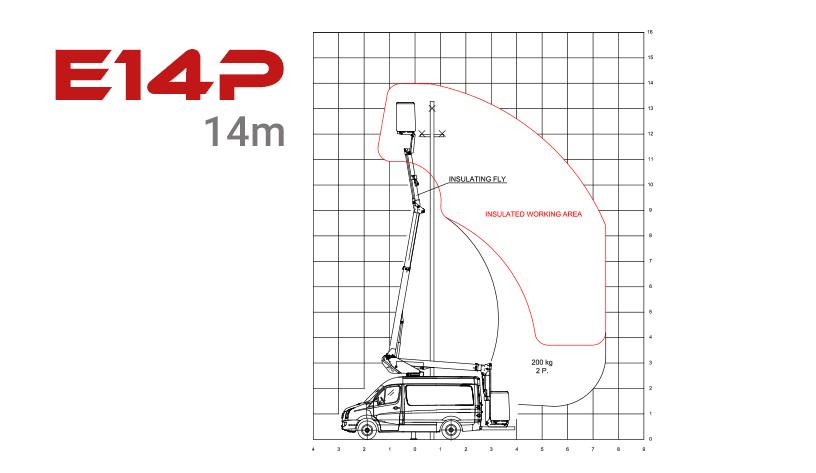

Max. working height : 14.00 m (45'11")
Max. working outreach : 7.50 m (24'70")
Boom rotation : 360°
Max. working load : 200Kg
Max. platform height : 12 m (39'40")
Outriggers : 2 outriggers
Basket size : 125 x 75 x 110 cm
Chassis weight : ≤3.5 T
Arm : Telescopic
Engine : Gas
IPAF category : 1b
Lifting mechanism : hydraulic
EXAMPLES OF VEHICLES
FORD TRANSIT
IVECO DAILY
"green pack"
The whole range of aerial work platforms can be equipped with the ecological option "Green Pack" allowing the platforms to operate with the van engine off.
