Working Height : 13.20
Offset : 6.50
Rotation : 360
14 Meters Bucket Truck Chassis (45’93”)

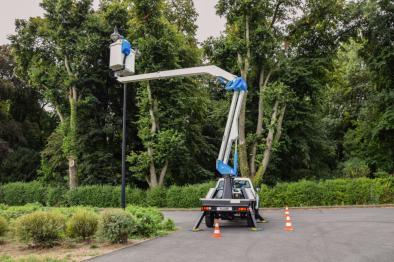

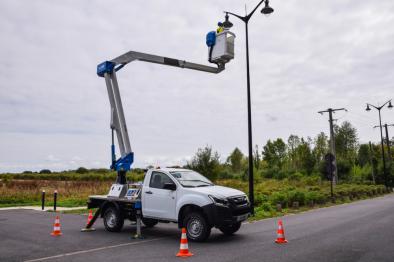

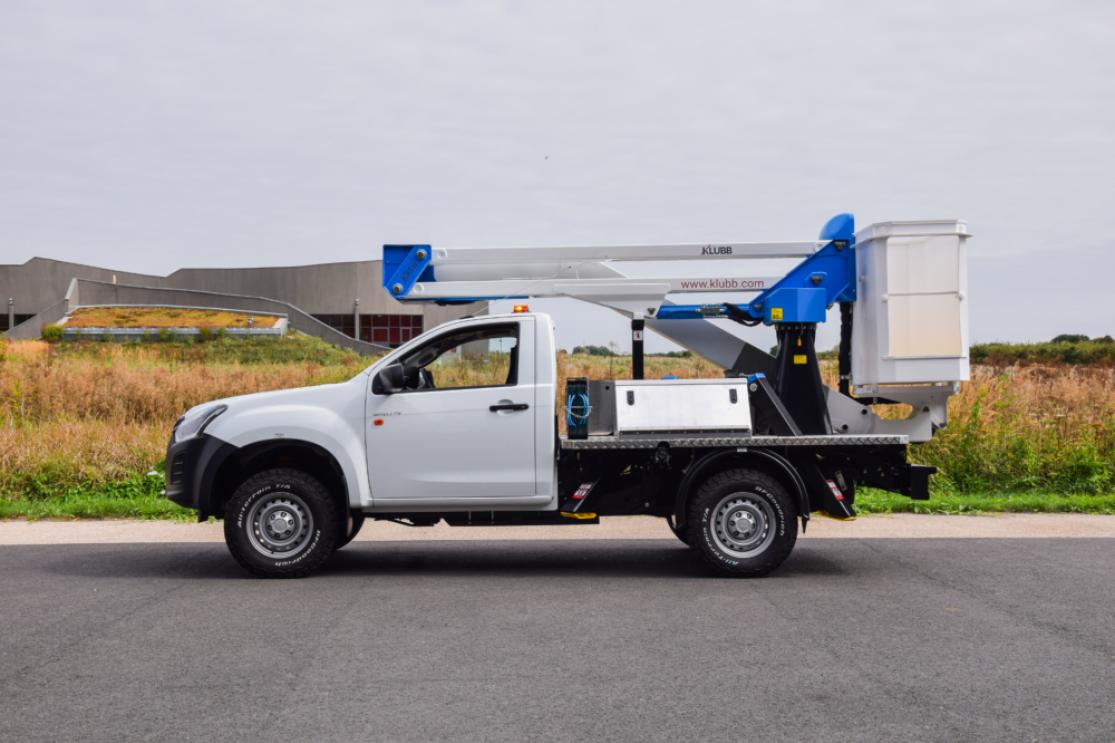

KLUBB Model = KAT42Capacity = 200kg, 2 operators, with outriggers
The KAT42 is highly resistant to very high or low temperatures.
Its aluminum telescope ensures excellent stability and the conveyor chain and extension cylinders are protected in the arm for greater durability. This new pick-up aerial platform includes all-hydraulic operation, making maintenance easy all over the world.
Therefore, this articulated basket was designed to be able to intervene in extreme environments with difficult access.
Above all, the objective of Klubb, through these new products is to offer its customers an optimal cost of ownership, and high performance.
We have other types of new aerial platform that meet the same needs with however higher work heights and offsets.
STANDARD FEATURES
Engine start and stop from basket
Independent emergency electric pump with all the features in the basket for maximum security
Proportional controls
Secure access to the working platform
Hoses and cables are inside the boom structure for maximum protection
Aluminium boom for optimum stability
EXAMPLES OF VEHICLES
TOYOTA HILUX
ISUZU D-MAX
NISSAN NAVARA
Technical Specifications
Max. working height : 13.20 m (43'30")
Max. working outreach : 6.50 m (21'40")
Boom rotation : 360°
Max. working load : 240Kg
Max. platform height : 11.20 m (36'90")
Outriggers : 4 A-Frame outriggers
Basket size : 133 x 72 x 114 cm
Chassis weight : ≤3.5 T
Arm : Articulated
Engine : Gas
IPAF category: 1b
Lifting mechanism : hydraulic
