24 Meters Bucket Truck Chassis (78'7")
KLUBB型号 = PNT 240承载力 = 250

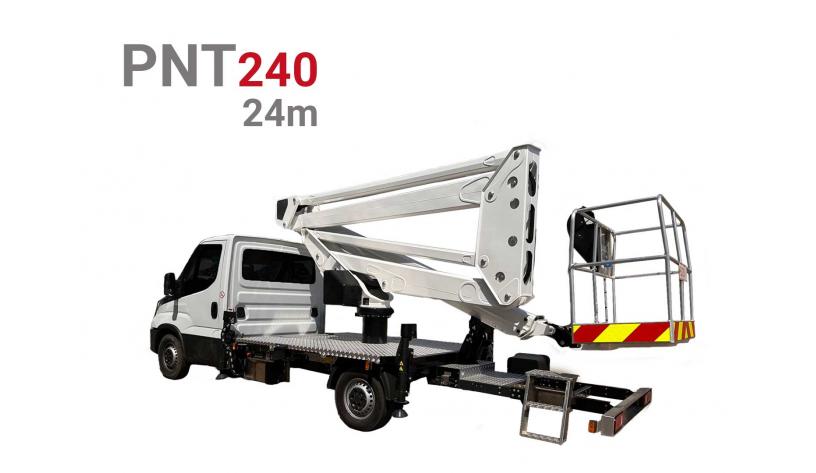

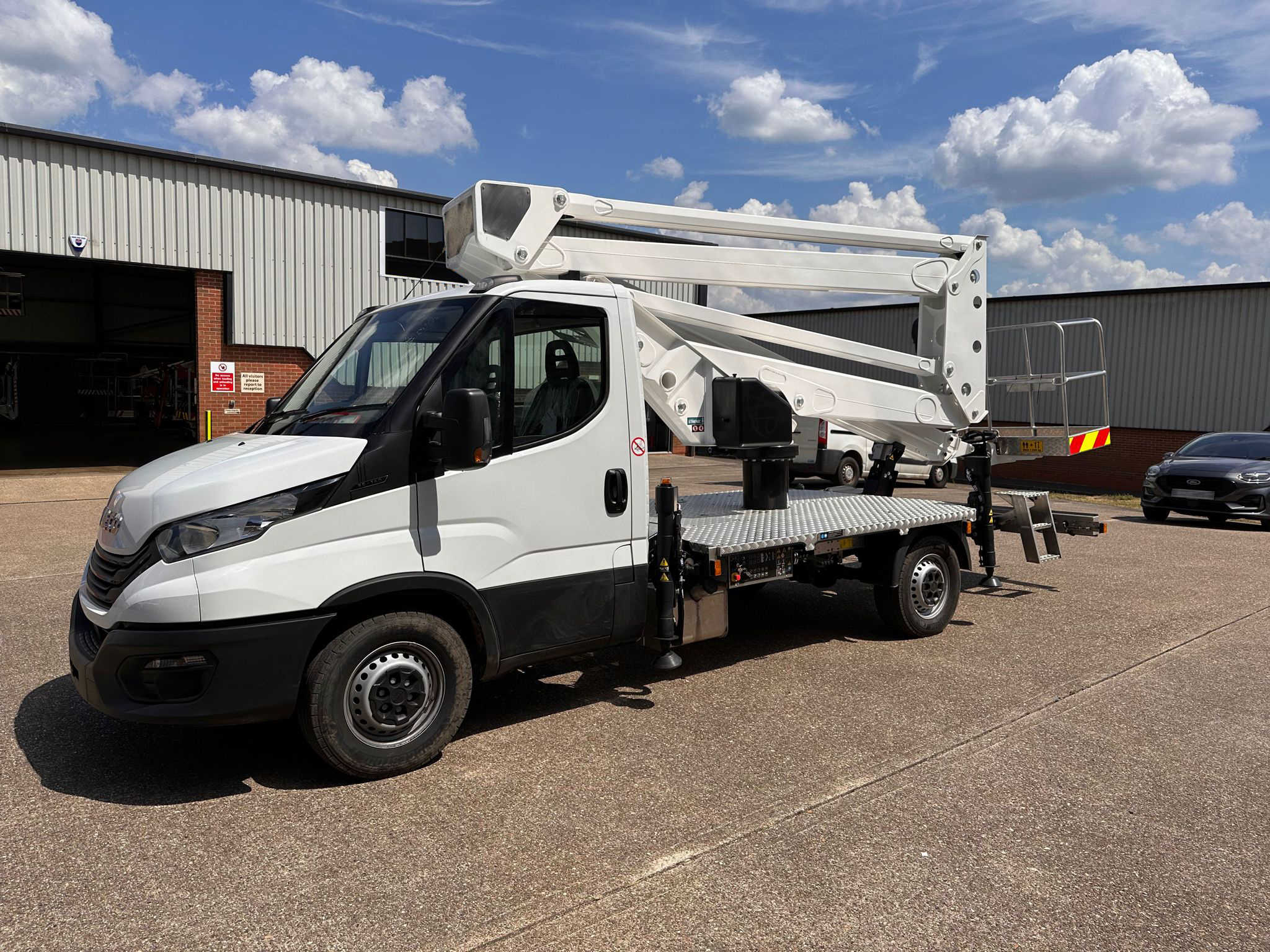

The PNT 240 is an articulated boom lift designed for working at height. In addition to its ability to access difficult areas with its articulated arm, it has the advantage of integrating hydraulic stabilizers, thus offering the operator the possibility to work in optimal conditions even in the presence of obstacles.
With a working height of 24 meters and an outreach of up to 12 meters, this truck-mounted lift is suitable for a wide variety of tasks at height such as public lighting maintenance, Christmas decorations, and tree pruning.
Its 360-degree rotating basket, capable of supporting a load of up to 250 kg, is convenient for operators needing tools and equipment to work at height.
You can add options such as the signaling kit including gyro and triflash, a drop-side, chests or high-level protection.
STANDARD FEATURES
- Engine stop/start in basket
- Emergency circuit on manual pump
- Proportional controls on all movements
- Secure access to the work platform
- Conveyor chain for hoses inside the boom for an optimal protection
- 220V circuit in nacelle
- Rigid PVC protection of the controls at the top station
EXAMPLES OF VEHICULES
Iveco Daily (Wb.3750)
Isuzu M21 (Wb.2760)
TECHNICAL SPECIFICATIONS

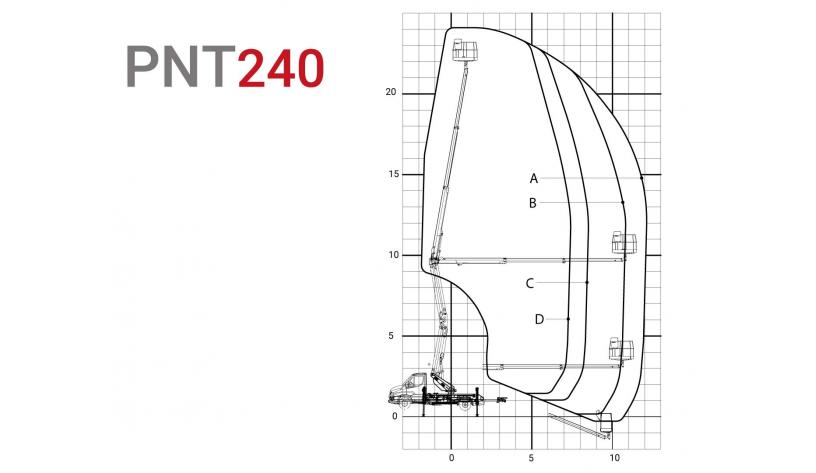

Max. working height : 24m (74'7)
Max. working outreach : 12m (39'3)
Boom rotation :
" 绿色包装"
整个高空作业平台都可以配备生态选件“ 绿色包装”，使平台可以在关闭货车发动机的情况下运行。
